Fix Motorola Moto One Fusion/Plus Stuck on Boot Start screen logo

by Selva Kumar A Leave a Comment

Whenever a device can do many things, There are also some possibilities that the device troubleshoot may need additional steps. After we begin to use Smartphones, They made lots of things more manageable. But the troubleshoot become advanced. Moto One Fusion Plus comes with a mid-range processor and a high-level camera pair setup. The mobile may be freeze or stuck when handling heavy apps or during the update process. Fortunately, We fix most of the issues by yourself when it is software-related. When your Moto One Fusion Plus is stuck on the boot logo during the update or restart, you can fix your mobile using one of the below methods.

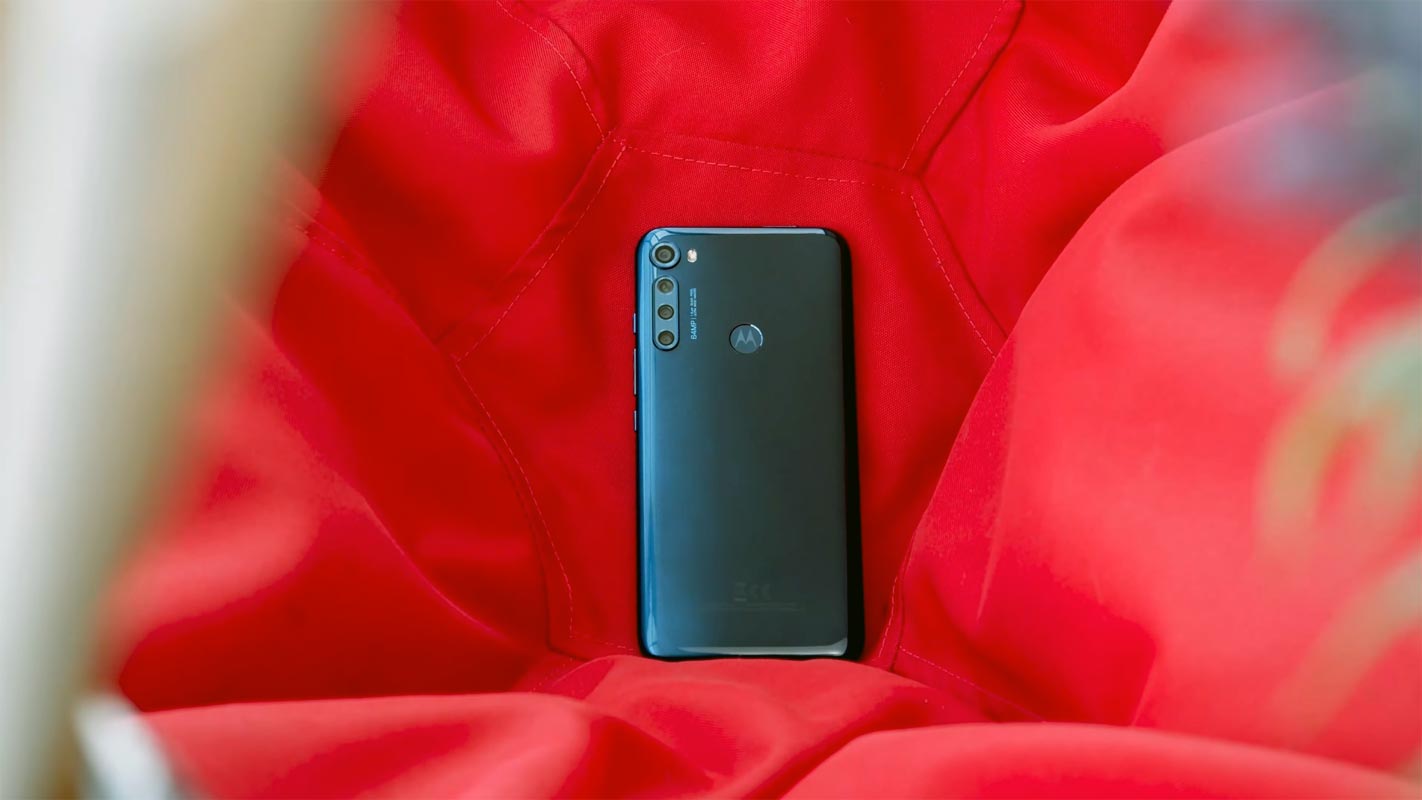

Motorola One Fusion Back Side on the Red Cloth

When the issue happens after restart or update, most of the time, you can fix the problem with few steps. Always start with method 1. Based on your mobile feedback, you can go further steps. When you are facing freeze issues, You can try different modes other than the following ways. The next process is purely for the Boot logo stuck in the start screen.

Table of Contents

  • What is the Stuck on the Boot logo in Motorola Moto One Fusion/Plus?
  • How to Fix Moto One Fusion/Plus on Boot logo?
  • 1. Long Press Power Button
  • 2.Boot into Safe Mode
  • 3. Reboot using recovery
      • 3.1 Stock Recovery method
      • 3.2 TWRP Recovery method
  • 4. Using ADB Commands to Reboot, your boot logo stuck Moto One Fusion/Plus Mobile
      • Steps
  • 5. Drain Battery Completely
  • 6. Wipe Cache Data Partition
      • 6.1 Stock Recovery method
      • 6.2 TWRP Recovery method
  • 7. Disable Recently installed apps using ADB
  • 8. Flash Boot. img file using ADB and Fastboot and Repair Boot logo stuck in Moto One Fusion/Plus
    • 8.1 Extracting boot.img file
    • 8.2 Flash boot.tar using ODIN
  • 9. Flash Complete Firmware using RSD Lite
    • 9.1 Flash Moto One Fusion/Plus Android 10 ROM using RSD Lite Tool
  • Wrap Up

What is the Stuck on the Boot logo in Motorola Moto One Fusion/Plus?

OTA updates are, most of the time, flawless processes. But when the mobile begins to finish the first boot after the update, It is a nail-biting situation for most users. Because sometimes the boot can take a long time than usual. If the boot happens after a long time, it is excellent. But When the boot takes more than 20 minutes and is stuck on the Moto One Fusion/Plus name logo, It is not a good sign. You can wait for a few minutes. Even after your mobile is not booted into the regular screen, your mobile is stuck on the Moto Boot logo. You don’t need to worry. We can start with simple methods to fix these issues. Always start with a simple process. Most of the time, the boot stuck fixed in simple ways.

Buy Samsung Galaxy S22 Ultra from $6.46/mo for 24 Months with Eligible Trade-In.
Samsung Galaxy S23 available for $0.00/mo with T-Mobile Credit and Trade-in Deal

Moto One Fusion Boot Logo Screen

Boot logo stuck can happen for various reasons and different situations. When you restart the mobile after the monthly security patch updates or major upgrades like Android 10, It can happen. Due to Overwrite already existing codes in the OS, and the process doesn’t go as expected, We have to deal with this kind of problem. When you face this issue, Don’t rush for firmware flash, You will lose user data. The Firmware flash should be your last choice, and We can recover your mobile using different methods. The stuck can happen in two screens- The Moto Logo and The Mobile details screen logo. For both screens, the following techniques will work.

How to Fix Moto One Fusion/Plus on Boot logo?

When you give more time than usual and your mobile won’t boot into System OS, you can follow the below methods to fix your stuck Moto One Fusion/Plus on the Boot logo. Our motto is as much as we can retrieve your mobile without losing data. But when we can’t, we have to flash the full firmware to get your mobile back.

1. Long Press Power Button

Most of the time, all electronic devices will work after the power off and on. Even if it is a simple method, and you may wonder what technology can help here. It will work most of the time. Long press your power button for 10 seconds, It will trigger your mobile’s power, and your mobile will shut down in a few seconds.

Also Read-  Download Motorola Moto G Stylus 5G 2022 My UX Android 12 Official Stock Firmware (All Regions)

2.Boot into Safe Mode

Sometimes third-party apps may trigger the latest version, and it may cause the stuck in boot logo. Try to boot into Safe Mode by pressing Power Button for 30-60 seconds. Your mobile will boot into Safe mode. Try to Un-Install the recently installed app before the OTA process. Also, check the compatibility in Play Store. When you install apps other than Play Store, Un-Install them and try to boot again.

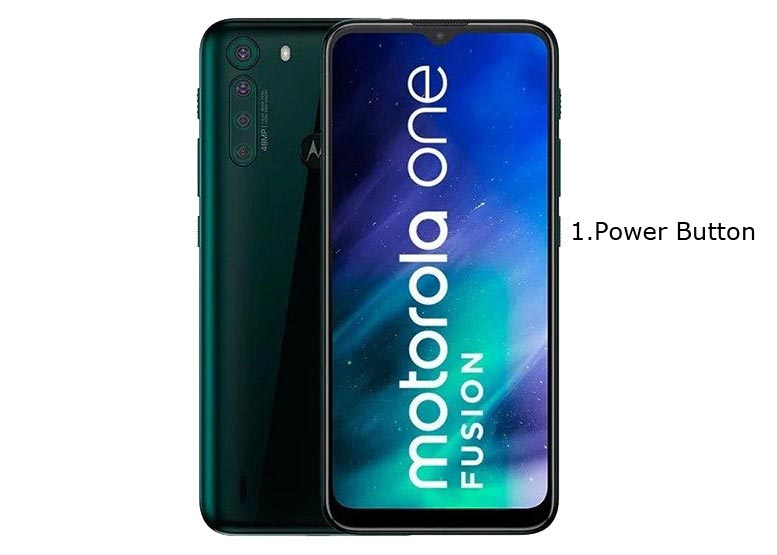

Moto One Fusion Safe Mode

3. Reboot using recovery

This method will not affect your User data. It will only soft reset your mobile. You have to press Volume Down+ Power Button on your mobile for 7-10 Seconds to boot into recovery mode. After that, it will kick you into the recovery mode or directly boot into System OS. The response may vary depending on the mobile manufacturers. If you received a Recovery mode menu, use the Volume keys to navigate and the Power button to confirm the selection.

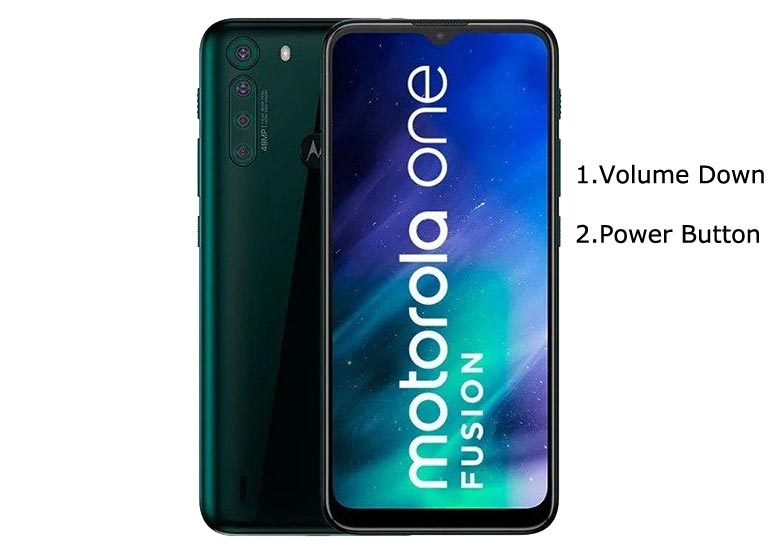

Moto One Fusion Fastboot Mode

3.1 Stock Recovery method

Moto Recovery Mode

If you didn’t use Rooted mobiles, you have Stock Recovery, provided by your official mobile manufacturer. If you have a stock recovery, you have the direct option as “Reboot.” Navigate to this option and confirm it using the power key button.

3.2 TWRP Recovery method

When you use Rooted mobiles, you either use Stock Recovery or TWRP custom recovery. If you have Stock Recovery, you can use the above process. When you installed TWRP on your mobile, follow the steps below.

TWRP Recovery Normal Boot to OS

  • The Keycombinations will boot your mobile into TWRP Recovery mode.
  • On the Home screen, you can find the option “Boot.” Select the item; you will receive further options as System, Power Off, Recovery, and Bootloader. Select “System.” Your mobile will boot into Normal OS.

4. Using ADB Commands to Reboot, your boot logo stuck Moto One Fusion/Plus Mobile

This process may work 50-60%. If you use Old Mid-range mobiles, the chances are less. But, When you have Flagship mobiles or New mobiles, it will work. The OS can still handle background commands. So, the ADB commands may work.

Steps

  • Download the ADB drivers. Install it on your PC.

ADB Drivers Installation

  • Connect your mobile with a PC.

ADB command Open

  • Open a command prompt as Administrator and type the below command to check the ADB status.
  • adb devices

adb reboot command

  • It should display the connected devices. If you didn’t get the mobile, restart the command prompt and Disconnect and Connect your mobile. If you are detected, type the below commands.
  • adb reboot
  • The order will reboot your mobile.

5. Drain Battery Completely

When You can’t Power off or Restart your mobile, Let the battery drain completely. Because with the massive battery, it may take 1-3 days, depending on your mobile battery backup, to remain. When you didn’t have this much time and want to urge fix methods, you can proceed with other ways.

6. Wipe Cache Data Partition

When you perform, restart using recovery, and you can’t boot into OS again. In this situation, We have another choice of the fix by Wipe cache partition. It is also will not affect user data. It will wipe only cache data. You have to press Volume Down+ Power Button on your mobile for 7-10 Seconds. After that, it will boot you into the recovery mode or directly boot into System OS. The response may vary depending on the mobile manufacturers. If you received a Recovery mode menu, use the Volume keys to navigate and the Power button to confirm the selection. Remember, you should wipe only the cache partition, Not the Wipe Data/Factory Reset.

6.1 Stock Recovery method

Samsung Galaxy Wipe Cache Partition

  • If you didn’t use Rooted mobiles, you have Stock Recovery, provided by your official mobile manufacturer.
  • If you have stock recovery, you have the direct option as “Wipe & Reset.” Navigate to this option and confirm it using the power key button.

Confirm Wipe Cache Samsung Galaxy

  • Initially, try with “Wipe Cache.”
  • It will ask you to confirm the process. Select “Yes.”
  • When a cache doesn’t work, Go for “Wipe User Data.”
  • Most of the time, it will boot into OS after the wipe. When it returns to recovery, Select the Reboot system now.
Also Read-  Download Samsung Galaxy Z Flip 4 US-Cellular Android 12 SM-F721U One UI 4.1 Stock Firmware (Carrier Locked)

6.2 TWRP Recovery method

When you use Rooted mobiles, you either use Stock Recovery or TWRP custom recovery. If you have Stock Recovery, you can use the above process. When you installed TWRP on your mobile, follow the steps below.

Wipe Data in TWRP

  • The Keycombinations will boot your mobile into TWRP Recovery mode.
  • On the Home screen, you can find the option “Wipe.” Select the wipe option; you will receive further details. Select “Cache.” Don’t select the System. It will wipe your OS. After selecting other choices, swipe to erase the data. When the process completes, return to home and boot into OS.

7. Disable Recently installed apps using ADB

If you use Stock Android phones, you can disable/remove the bloatware apps most of the time. If you are in Custom Skin OS, the chances of disabling the Bloatware apps are less. But, We can Disable the Apps using ADB without root. The methods may vary depending on the manufacturer. You have to find the particular Bloatware apps and disable them. I will give the overall idea about ADB steps and commands. But, the list of packages may vary depending on the manufacturers.

  • Download the ADB drivers. Install it on your PC.

ADB Drivers Installation

  • Enable USB Debugging Mode and OEM Unlock; you’ll find these options at Settings >>> Developer options. If you didn’t see the developer options on your settings menu, go to about >>> build number. Click on the “Build Number” row about ten times regularly to activate the “Developer Option” on your device.

Samsung Galaxy USB debugging Allow

  • Connect your mobile with a PC and unlock your mobile (Screen Lock).

ADB command Open

  • Open a command prompt as Administrator and type the below command to check the ADB status.
  • adb devices
  • The above command will display some code for device detection. If you didn’t receive any response, Check with the USB Cable. If you get a response, move to the below commands.

Samsung Galaxy Internet Browser Disable Using ADB

  • You can disable the apps based on their adb package name. You can find these package names using the below command.
  • adb shell pm list packages
  • Based on the title, you can exclude unwanted apps. After that, use the am force-stop, and pm disables commands with the Application package name.
  • You can enter the commands one by one, Or All commands, and Hit Enter. You can get the application package name in Play Store URL. It will start with com.instagram.android like that.
  • am force-stop package name(e.g: com.sprint.w.installer)

      pm disable-user package name

  • Restart your mobile. When you are again stuck on boot logon on your Moto One Fusion/Plus mobile, move to different methods.

8. Flash Boot. img file using ADB and Fastboot and Repair Boot logo stuck in Moto One Fusion/Plus

The main problem of stuck in the boot logo is with the boot image file. When we flash the particular boot image file, then we can restore your mobile without losing data. But you should know what version of the software is already on the mobile. You can always go with the latest boot image file. The following method may not work with EU carrier-locked mobiles.

  • Download the ADB drivers. Install it on your PC.

  • Download Moto One Fusion/Plus firmware from the below links and save it on your PC. Your Current OS version and Downloaded Version AP and CSC should be the Same.
  • Moto One Fusion/Plus Android 10 ROM.

8.1 Extracting boot.img file

Xiaomi Extracted ROM Files

  • Download 7Zip-ZS and Install it on your PC. Extract the files in downloaded firmware using 7Zip-ZS. You will get ROM files. In those files, along with some data, you can see boot.img.
  • Copy the boot.img to ADB Installed folder.

8.2 Flash boot.tar using ODIN

  • Connect your USB cable with your PC. Switch off your device. Then, enter into Fastboot mode. To do this, press and hold Volume Down+ Power Buttons and Connect Your Mobile To PC via USB Cable; after Moto Logo Appear, Release all keys.
Also Read-  Download Motorola Edge 30 Pro Android 12 My UX Official Stock Firmware (All Regions)

Moto One Fusion Fastboot Mode

  • Press the Volume Up button to continue when you see the warning message.

  • Now, connect the Moto One Fusion/Plus mobile to the USB cable computer.

  • Launch the fastboot on your computer. Open a Command prompt on your PC and type the below command.

  • fastboot devices
  • It should display the connected devices. If you didn’t get the device, restart the command prompt and Disconnect and Connect your Moto One Fusion/Plus. If you are detected, type the below command and hit Enter.
  • fastboot flash boot boot.img

fastboot flash boot boot.img command

  • After the process complete, Press the Volume Down+ Power button to exit Fastboot mode. When the screen goes off, Immediately Press Volume Up + Power buttons to boot into Recovery mode.
  • After entering into Stock recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase your saved data on your device. Don’t Boot into OS; read below Boot stages before booting.

9. Flash Complete Firmware using RSD Lite

We are going full flash firmware in your boot logo stuck Moto One Fusion/Plus mobile in this method. It is a Data loss process. When you didn’t have any choice and none of the above methods didn’t work for you, you can use it. Refer- Moto One Fusion/Plus Firmware.

9.1 Flash Moto One Fusion/Plus Android 10 ROM using RSD Lite Tool

  • Download the Motorola USB driver and install it on your PC.

RSD Lite Installation Page

  • We are using third party software flashing. Download RSD Lite and install this also on your PC.
  • Connect Your Mobile With the PC Using USB Cable.
  • Switch off Your Mobile and Enter into Fastboot Mode->Press and Hold Volume Down+ Power Button.

Moto G6 Plus Fastboot Mode Warning Screen

  • Release all the keys when you enter into Fastboot mode.
  • Now Launch RSD Lite Select Your Downloaded Firmware Using this “…” The symbol in the RSD Lite.

RSD Lite selecting Firmware

  • It Will Asks For the Unzip Just Select Uncompress.
  • Check With Your Mobile Details.
  • Now go to Your Mobile Press Volume Down Key And Select AP Fastboot. Make Sure that USB Connected Message is Display(Transfer Mode: USB Connected).
  • Now Select the Start in the RSD Lite Wait For the Process to Complete, Your Mobile Will Reboot After the Process Completion.
Check Firmware
  • You can Check the Firmware Details->Settings->About->Version.

Wrap Up

Even if the software updates process looks like a simple way, Mostly, 1-5% of people always face issues when they try to make OTA updates. That’s why we suggest you should always make a backup before making an update on your mobile. Always use cloud photo backup service like Google Photos. Compare with other mobile manufacturers, with the help of Motorola’s available tools; we can fix your Moto One Fusion/Plus stuck on the boot logo.

If you face freeze and unresponsive issues on your mobile, You should try different methods than the above mentioned. It is always a wise idea to give some time for the first boot after the update. Based on your available storage and apps size, the first boot may take a long time. When you are confident that the mobile is stuck and already gave enough time for initialization, you can follow the above steps to fix your mobile. When you try different methods than above and those techniques help you, Comment below. We try to add if those methods work for everyone.
