Download Sony Xperia 5 Pie 9.0 Firmware (.ftf creation)

Sony Xperia 5 is another Flagship level device from Sony that based on Snapdragon 855 processor. This device width is nearly 1 CM less compare with the new devices. So, It can’t look bulky in your pocket. Sony is nowadays focusing on lengthy displays, instead of wide screens. It comes with Pie 9.0 version. You can update your mobile using a software update option in settings. Sometimes you can’t do the regular auto-update. If you are a regular user, Before this manual method, Try Sony PC Companion. It can help you with the update, and it is a natural process than the below method. When you moved to different regions, Use VPN to adjust the area and try the upgrade. I know, this method has additional steps. I try my best to simplify the guide. But, We can’t ignore the necessary steps.

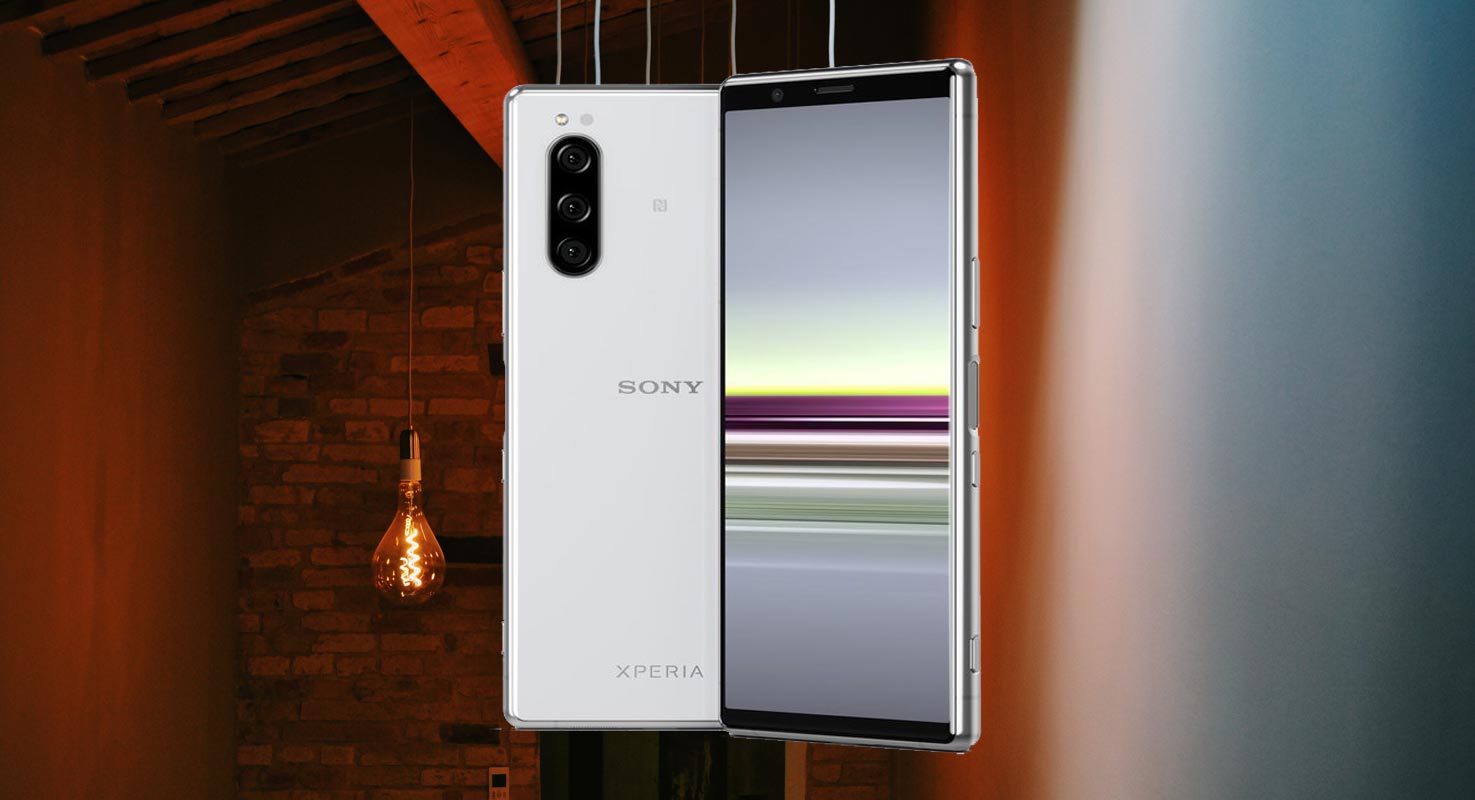

Sony Xperia 5 with Hanging Night Lamp Background

Unlock the bootloader

Some USA or Other country devices are coming with Bootloader locked. If your device is Bootloader locked, you can unlock its using Unlock Bootloader steps.

Things to note and do before running Sony Xperia 5 Manual firmware update

Official OTA Method

If you want to update a security patch to the current month. Don’t go for the manual method. Try this Automatic method.

The process is straightforward and straightforward;

checking for software update android

  • Go to your device setting menu and scroll down to the bottom

    Snapchat Pixy Drone Demo
    Snapchat Pixy Drone Demo
  • Tap on “Software Update”

  • You may have to refresh the page to start the OTA upgrade process.

Run a full backup

You must run a full backup of all files, documents, and data on the Sony Xperia Android device to be worked on. This is because even if you engage a professional to update your firmware if it is not done correctly, then you’ll lose all the data saved on the device. Thus, we always advise running backups to be on the safe side.

Also Read-  Sony Launched New Android-Powered Walkman Audio Devices from $1600

Charge the device fully

Your Xperia device has to be fully charged, or the battery percentage should be more than 80%. If your device is not loaded, kindly wait until it is charged before you continue

Download the needed tools/software

To perform this action, you need to download the required tools for i. Here, we will provide the official links to download the tools you need; ensure you download them and install them on your PC and smartphone, respectively. For installing the firmware on Sony Xperia devices, Download Xperifirm. With XperiFirm, you can limitlessly download any Sony firmware from official servers.


The official Sony Xperia tool for downloading the right firmware (any version) is XperiFirm. If you use the old version, you can’t download firmware, So I advise you always to use a Newer version; if your versions are old, you will get the prompt to get a newer version). Also, it could be used for Sony Android smartwatches. Install the software in Local Disk C (Admin Privilege Disk).

Androxyde FlashTool

The Androxyde FlashTool (Direct Mirror / AFH Mirror ) is the best flashing tool for Sony Xperia devices; just as the Odin flashing tool is best for Samsung Galaxy devices. Get this tool installed on your working PC and continue with the steps below; Also, install this too in Local Disk C.

Download and Flash Sony Xperia 5 Pie 9.0 Official Firmware

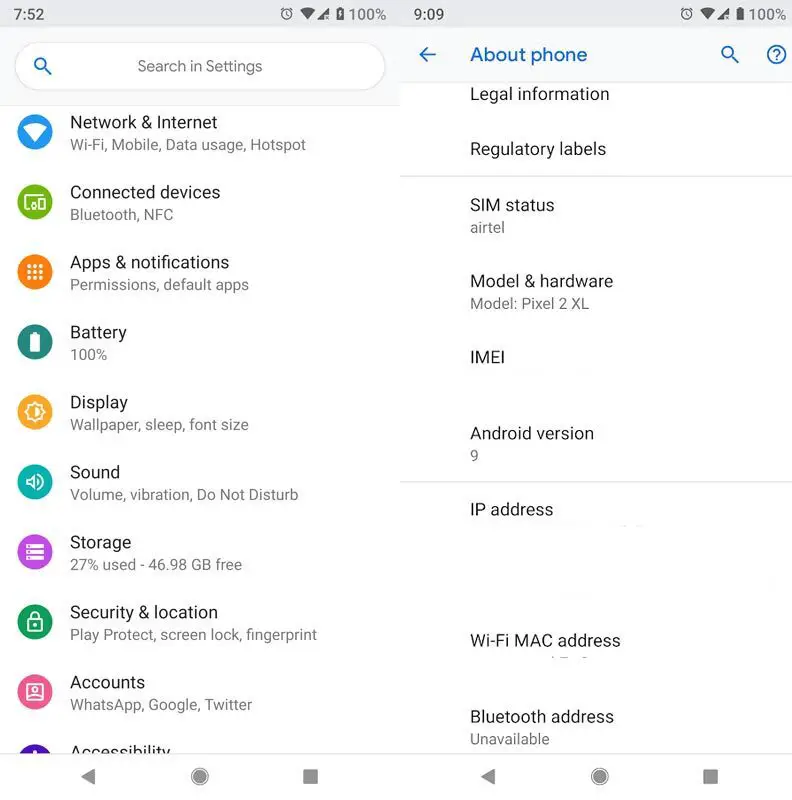

Checking Model Number Pixel 2 XL

Selecting firmware in Sony Xperia is a Little bit tricky. Before Downloading any firmware, you should find your model number. You can do this by going to Settings>> About Phone >> Model Number. You should also know your Operator and Region.

Sony Xperia 5 Model Numbers

International Variants

  • J8210
  • J9210 Dual

Getting started…

1: Download Xperia 5 RAW firmware using Xperifirm


The only Latest firmware will be Available in XperiFirm. Sony Xperia 5 Devices available with Pie updates.

When selecting a region, I advise you to consider the Operator Also.

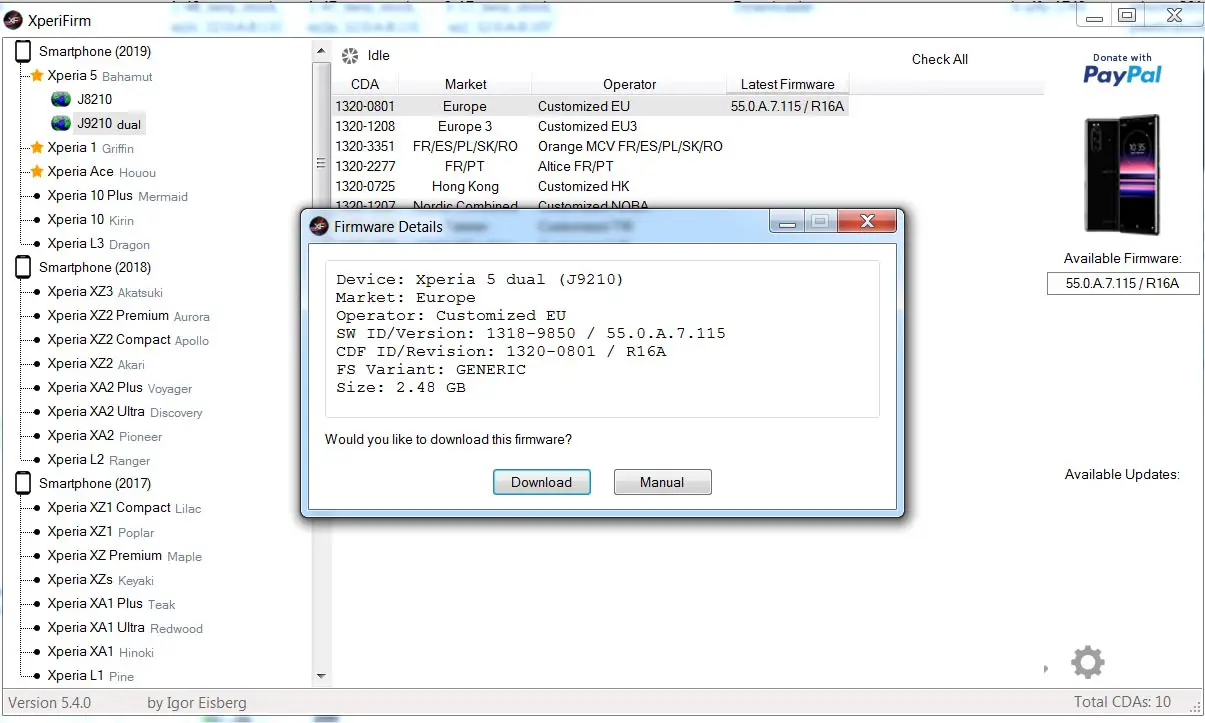

Sony Xperia 5 Xperifirm Selection

  1. Extract the XperiFirm zip files on your PC and install the application file. Launch/open the app after installation to continue

  2. Now, choose your Sony Xperia device model to download its firmware files, which are based on your region/country. When you have seen the different firmware for your device based on your region, go ahead to download it.

  3. After the download, locate and delete any file with the following name – fwinfo.xml in the downloaded files. The data is not necessary, so don’t panic about exercising your delete button on it.

Also Read-  Download Samsung Galaxy A32 5G US-Cellular Android 12 SM-A326U One UI 4.1 Stock Firmware (Carrier Locked)

After the steps above, move on to the Androxyde FlashTool steps.

2: Creating.ftf file Using Androxyde FlashToolSony Flash Tool Decrypt

  • Navigate to Tools > Bundles > FILESET Decrypt >Select files from Folder (Select whole folder).

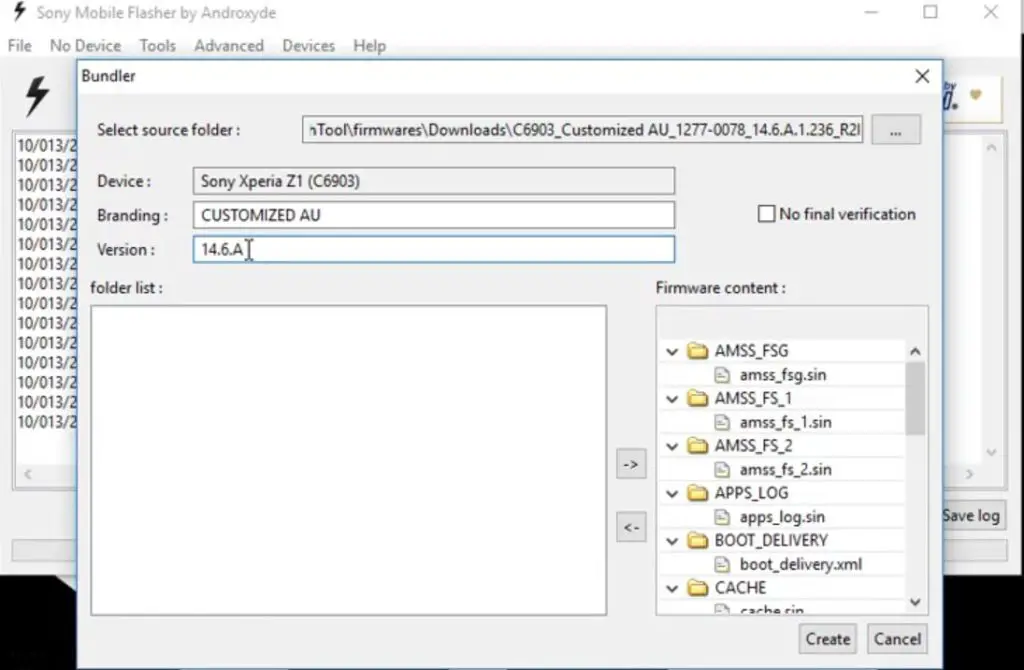

Sony Flash Tool ftf file create step 2

  • Give Device Name, Branding, and Version From the Xperifirm Tool (You can also give your Details, But to avoid confusion, follow correct details). Select all the firmware files downloaded from Xperifirm. Select the right arrow in the flash tool. It will move all of your data into “Firmware Content.” Now tap on “Create / Convert.”

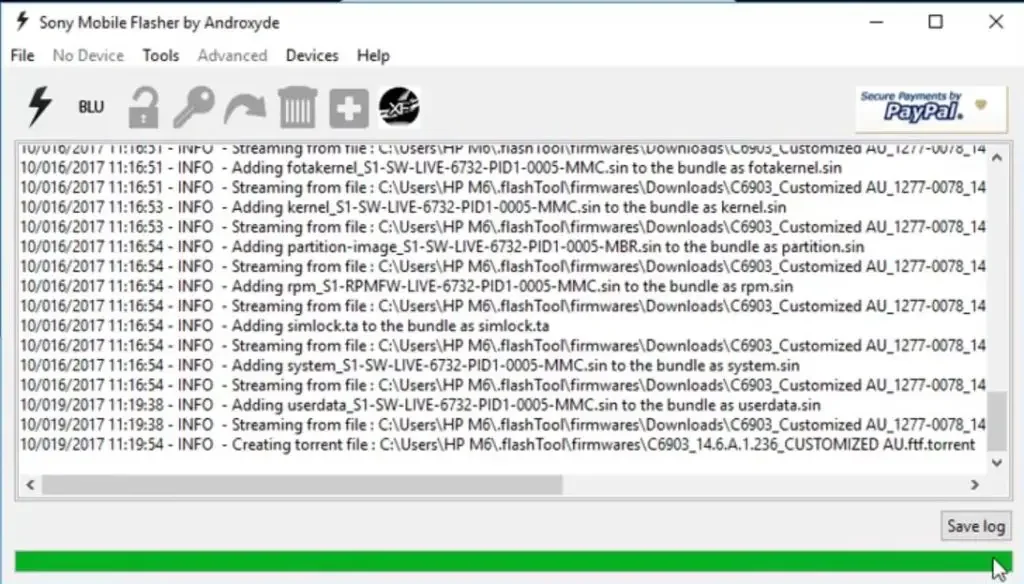

Sony Flash Tool ftf file create

  • Wait for the process complete. After the process complete, you can find the .ftf file in the log.

  • Now, you got the .ftf file needed for flashing Sony Xperia devices. Don’t close this software.

3: Flash a new firmware in your Sony Xperia 5 Devices

Soon you have .ftf file from the above steps. Since you have downloaded the Androxyde FlashTool, continue below

By default, the downloaded file will be in the Flashtool subfolder. If you installed other then C:/ in Windows, Copy the downloaded firmware files (with .ftf extension) to this folder C: Flashtool/firmware/Downloads.

Enter into Fastboot Mode

Sony Xperia 5 Fastboot Mode

  1. Switch Off your mobile.
  2. Connect your Xperia mobile device via USB Data Cable

  3. Press Volume Down Button. Now you are in Fastboot Mode.

Flash Firmware

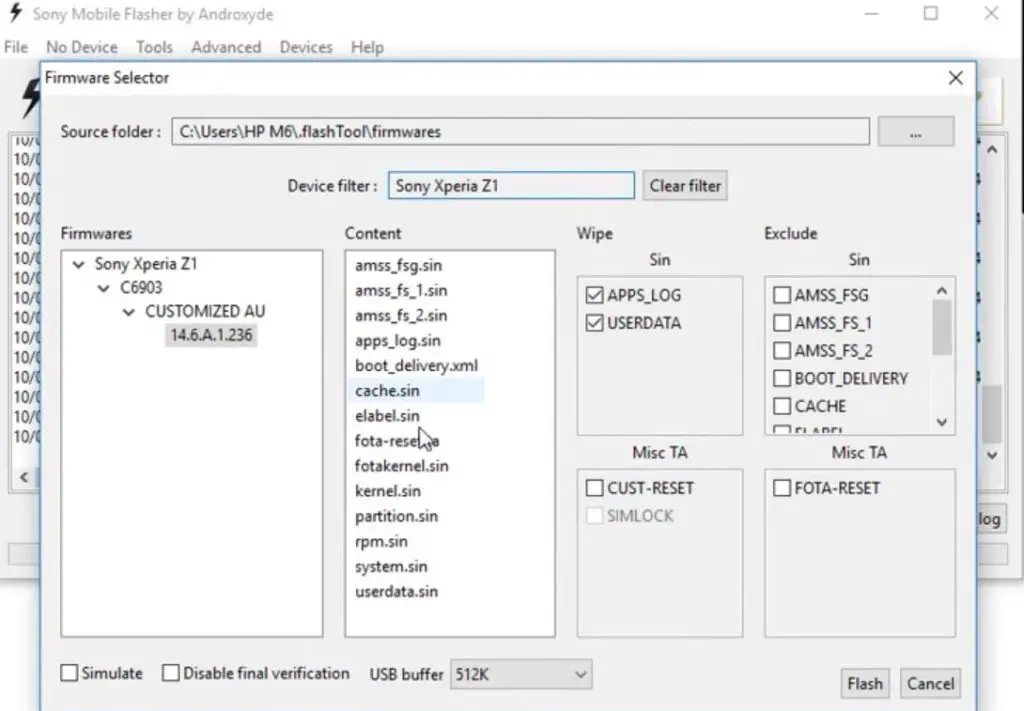

  1. After entering into fastboot mode, select the flash button with an electric symbol. You should choose Flashmode too.Flash Firmware Sony Xperia using Flashtool

  2. Select the folder like C: Flashtool/firmware. You will find the created .ftf file with version. Select the file.

  3. In the device Filter option, Select your device.
  4. On the right side, you will find “Wipe.” Tick the “Wipe data” and “Wipe Cache” options.

  5. Also, tick no “Final Verification” and tap ok

  6. Follow the onscreen instructions that will appear to keep going

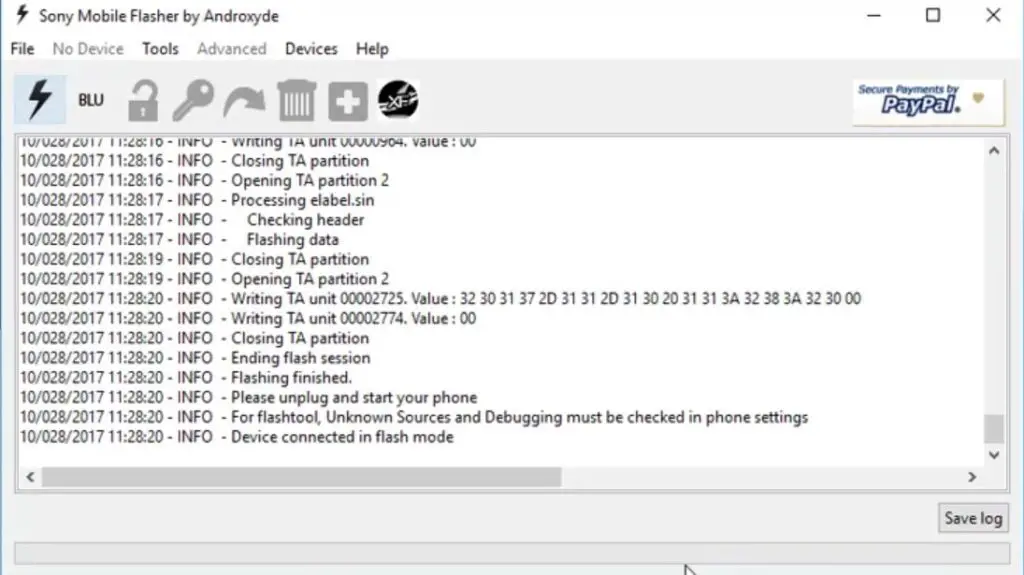

  7. Then, wait for the process to be complete.Sony Flashtool Firmware Flash Success Message

Once the Process complete, You will get the message “Flashing Finished.” Turn on your Sony Xperia mobile device; you have just flashed new firmware into it.

How to see your current firmware version?

You can check the firmware details here – go to device settings >>> About >>> Version.

Also Read-  Download Sony Xperia XA2, XA2 Ultra, XA2 Plus Oreo Firmware (.ftf creation)

Nothing more, enjoy!

Sony Xperia Pie 9.0 Features

Battery Saver

  • It allows you to restrict apps based on usage. If the app using the battery in the background unnecessarily, the new battery saver app informs you about this activity. You can hibernate the app in the Battery Saver options.
  • Adaptive Battery uses machine learning to predict which apps you’ll use in the next few hours and which you likely won’t, so your phone only spends battery power on the apps you care about.

Adaptive Brightness

  • Instead of adjusting brightness, your device can learn your environment based o the usage and adjust brightness automatically.

New Gesture Navigation

  • A lot of gesture-based navigations are added in Pie 9.0 as a shortcut.

Camera App

Sony Xperia Camera App

  • There are already special features like Bokeh mode, and Forever snapping selfies are available. Additional to this, Google Lens and some apps are added within the Camera App.
  • Now, this app can remember the least used feature.

What more?

As I already mention selecting firmware is an essential step in this process. So follow Model numbers correctly. Don’t download any third-party apps; sometimes, it may trigger the updates process. There are a lot of new Gestures available in this Update, try them also. In my opinion, the Sony OS is better to compare with some other Custom Skin OS. They always provide regular patch updates and Major Upgrades. So try to use this OS instead of a Custom OS. But the decision is your choice…:) If you face any problem, comment below, we will try our best to solve your problem.
