Root Motorola Moto E6 Pie 9.0 using Magisk

This root method is based on Magisk patched way. Means, you can’t install any Custom ROM. But, you can use Root required apps, and you will use rooted OS. Your Moto E6 comes with Pie 9.0 version. It is based on Near Stock Android. Most of the Custom ROMs UI is based on Stock Android. That’s why people love to flash those ROMs. You already have that UI. So, you don’t need that purpose. If you are a regular user, you don’t need to root your mobile to squeeze little performance from your mobile. Yes, you know why you bought this mobile. With 2 GB RAM and Lower Mid Range processor, We can’t squeeze a lot of performance from your mobile. Also, unlike the TWRP method, it required a lot of additional steps. If you are a Developer or regular root apps user, you can follow the below steps to achieve root on your mobile.

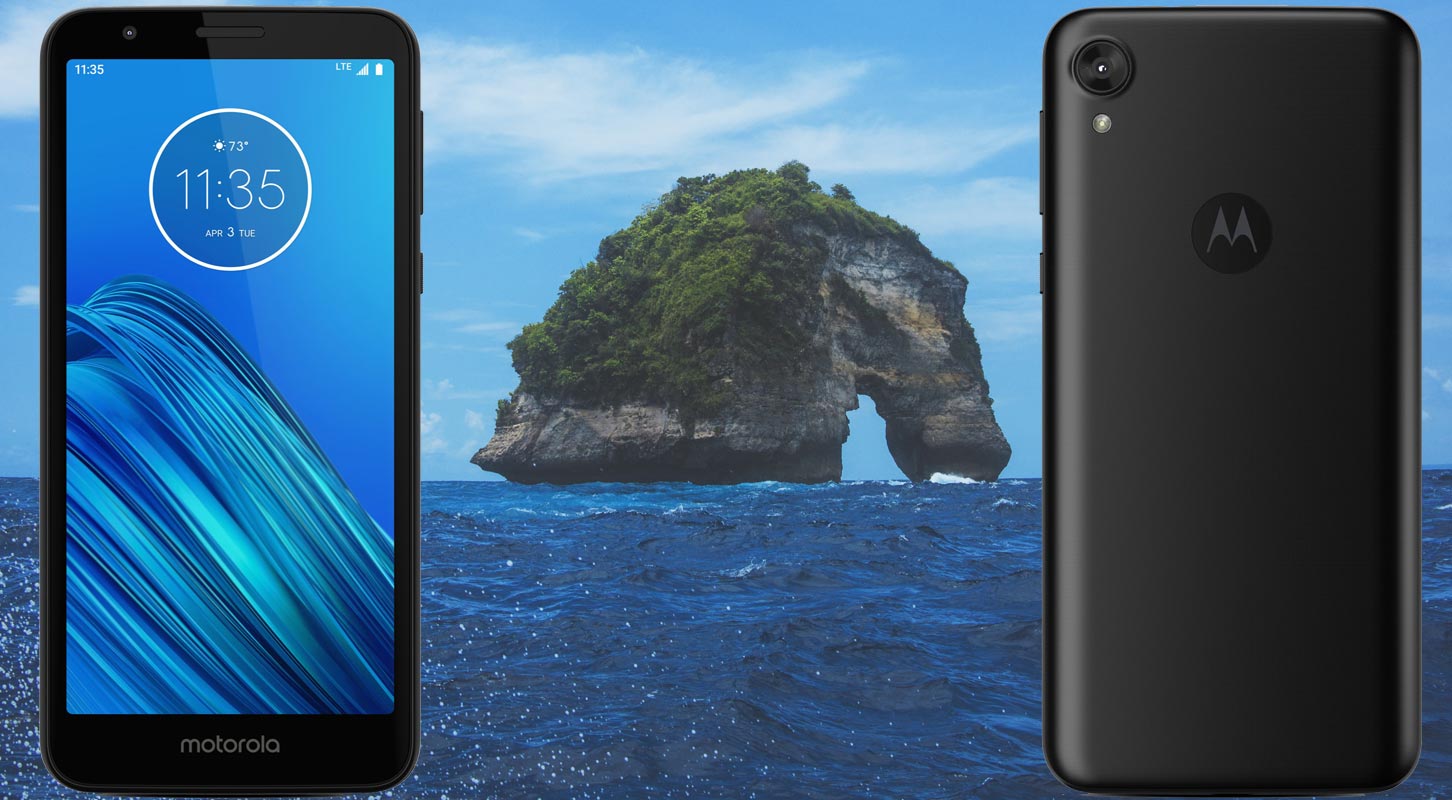

Moto E6 with Sea Background

Why should you Root Motorola Moto E6?

We thank XDA Developer- topjohnwu and mer2017 (Who successfully tested this method) Without their hard work, We can’t make this method. Coming to root, you should have a proper reason, and you know what you are doing. Yes, with a minimum of 2 GB RAM and Qualcomm SDM435 Snapdragon 435 processor, You can use this mobile for basic tasks without root for 2-3 Years If you use correctly. Software is better compared with other manufacturers, Custom skin OS. Don’t root because everybody is saying when root your mobile it can become the fastest car in the world. No. Rooting is to extract some performance from the device. But, you already have Powerful specs and software. So, If you are addicted to some root apps, you can root. But, if you want to test, I won’t recommend it.

How to Root Moto E6 (Surfna- International versions)

Moto E6 International Variants comes with a flexible bootloader other than some carrier locked devices. This means that different smartphone variants can be easily rooted. Also, the device can accept to install TWRP recovery or any other custom recovery file/app alike.

Most of the methods, We follow Magisk to root our device. TWRP recovery is a custom recovery file that must be installed on your devices because you can root them successfully. But, Below In this article, we explained the easiest method to follow and install Magisk on Moto E6. However, the tool required for rooting this device is the Magisk App.

You can install TWRP Recovery, once it is available for your Moto E6 to gain Custom Recovery access. Before sharing the tutorial, you may want to know that, without the TWRP recovery present on your device, you can not install any custom ROM or firmware. Does it seem complicated? Relax, everything will be explained succinctly in bullets.

Things to check out for;

  • Make sure your device battery is charged above 50%

  • Backup your current files and data, full data loss process (save them on external storage).

Pre-Requirement StepsOnePlus 6T OEM Unlock and USB Debugging

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this; go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode, OEM Unlock. There is no complicated process in Moto E6.

  • Also, download the ADB drivers. Install it in your PC.

Unlock Bootloader using ADB and Fastboot

Moto E6 Fastboot Mode

  • Switch off your device. Then, enter into Fastboot mode. To do this- Press and hold down the Volume Down + Power buttons at the same time for some time.

Moto G7 Plus Fastboot Mode Warning Screen

  • Press the Volume Up button to continue when you see the warning message.

  • Now, connect the Moto E6 mobile to the computer via USB cable.

  • Launch the fastboot on your computer. Open a Command prompt on your PC and type below command.

  • fastboot devices
  • It should display the connected devices. If you didn’t get the device, restart the command prompt and Disconnect and Connect your Moto E6. If you are detected type below commands.
  • fastboot oem get_unlock_data

Moto Get Unlock Data

  • Hit enter, you will get some unlock data. Copy those codes and remove <bootloader> Prefix from those lines and copy them into one single line.
  • Go to Official Moto Unlock Page. Log in with your moto account and in the Box, Paste those codes and Check the unlock Bootloader Status. If you get, Yes you can unlock, You can request unlock Key from Moto.
  • After the process completes, you will get 20 Digit to unlock key in your email. Now type the following command to unlock bootloader on your device.

  • fastboot oem unlock UNIQUE CODE

Moto unlock bootloader command

  • You should type this code two times and Hit enter to unlock your device successfully. After the successful unlock your device will automatically reboot to the standard OS.

  • Check again enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode, OEM Unlock. Sometimes they disabled themselves after the boot.

Preparing Patched Boot Image file

  • Download Moto E6 Firmware and save it on your PC. Your Current OS version and Downloaded Version should be Same.
  • You can use Phone Info to know your firmware version.

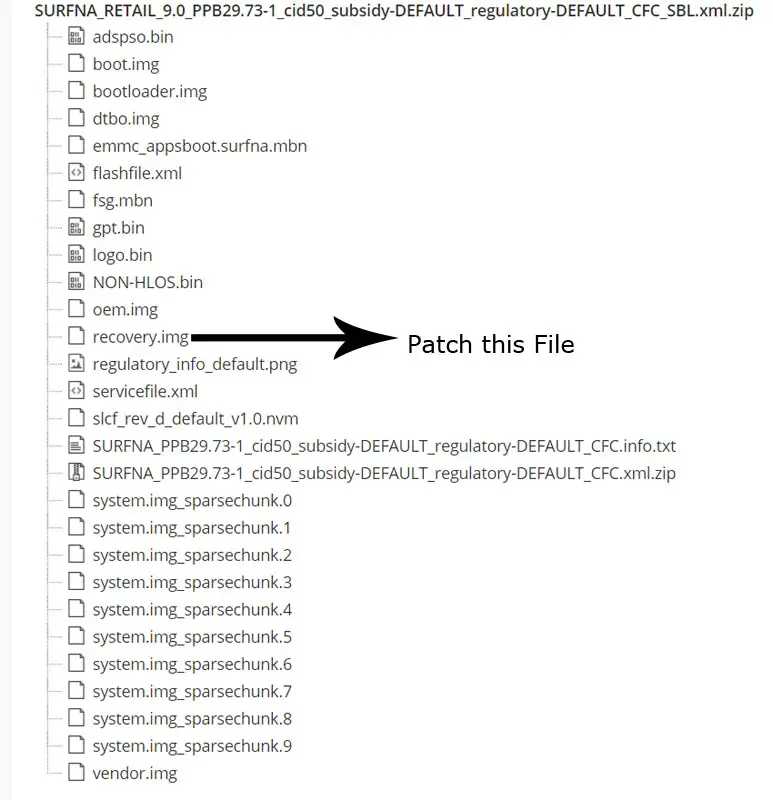

Moto E6 Extracted Firmware

  • Download 7Zip-ZS Install on your PC. Extract the files in downloaded firmware using 7Zip-ZS. You will get a lot of data. Copy recovery.img file to your mobile.
  • Download Magisk Manager (Download Latest version) or Magisk canary and Install it on your mobile. Open Installed Magisk and Select Install in Magisk, It will ask For zip file and Patch Recovery Image File. Select the Recovery Image file.

Magisk Boot Image File

  • Navigate to your copied Recovery Image File and patch the file as .img format.

Magisk Firmware Patch Process

  • Wait for the process to complete, In the end, you will get magisk patched .img file. The .img file will be in the same folder where you have the recovery.img.
  • Copy magisk_patched.img file to your PC. Rename the file to recovery.img again.

Flash Patched Recovery Image using ADB and Fastboot

  • Switch off your device. Then, enter into Fastboot mode. To do this- Press and hold down the Volume Down + Power buttons at the same time for some time.
  • Press the Volume Up button to continue when you see the warning message.

  • Now, connect the Moto E6 mobile to the computer via USB cable.

  • Launch the fastboot on your computer. Open a Command prompt on your PC and type below command.

  • fastboot devices
  • It should display the connected devices. If you didn’t get the device, restart the command prompt and Disconnect and Connect your Moto E6. If you are detected type below command and Hit Enter.

Fastboot Flash Recovery

  • fastboot flash recovery recovery.img
  • After the process complete, Press Volume Down+ Power button to exit Fastboot mode. When the screen goes off, Immediately Press Volume Up + Power buttons to boot into Recovery mode.
  • After entering into Stock recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase your saved data in your device. Don’t Boot into OS, Read below Boot stages before booting.

Boot into Rooted OS

  • Press and Hold Volume Up + Power buttons, release all the keys once the Bootloader warning appears. You have to set up your device like a new device. You can select the root status using Root Checker.
  • Stock Recovery Boot – Press and Hold Volume Up + Power buttons, release keys while you hold the Volume Up key.
  • You will see Magisk Manager in your App drawer. If you can’t find the app, you can install Magisk Manager in your mobile.

What More?

In my opinion, you don’t need rooting for yourMoto E6. If you thought, you could Improve Performance By root; With the Qualcomm SDM435 Snapdragon 435 Octa-Core processor and 2 GB RAM, your device can perform well. If you don’t know how much RAM you need, You will never use this much RAM. You should not Boot into Normal OS Booting, by pressing the power button, after firmware flash. It will boot you to Non-Rooted environment. If you accidentally urged and boot frequently, Don’t panic, after setup everything, switch off your device and boot into Rooted OS using above mentioned keys. Don’t Install any apps other than trusted sites on rooted devices. Third-party site apps can contain some background codes. So, Check twice before installing those apps.

Source, (2)

Share This Post:

14 thoughts on “Root Motorola Moto E6 Pie 9.0 using Magisk

  1. What am I doing wrong!!! I find the recovery image from the firmware, copy it to the download file on my phone, start magisk ad the file it works, I find the majisk_patched.img file……… at that point do I rename it in the phone or just cut and paste it to my pc but where. because when I start fastboot it recognizes the phone, but when I run fastboot it says
    error: cannot load ‘recovery.img’

      • I ran the magisk manager chose the image. Then I went to the file patched file copied it and paradise it in adb folder, renamed it recovery.
        I should think of none something was wrong because every time I go in or out of fastboot, it would say false key.
        The result….after the final step I tried to reboot, it went to a screen that said BAD KEY, and after a moment it goes to another with like a 16 did get number with spaces every four digits, and it blinks.
        It will respond to the power volume down. It goes into a fast boot, but if you try any of the options besides the bars, the model description, and so on, it goes right back to the blinking numbers. When I took it to the computer, it recognizes the device, but I think since I can’t get to the recovery when I run it, the recovery is anything, it reboots into the numbers. WOW

      • Sorry for the late reply.
        Did you unlock your mobile Correctly? Check the Status of the Bootloader. Your Mobile version and the Boot.img should be the same. If you update your mobile with the security patch, flash the firmware according to that.

  2. Hey Selva
    Thx for this guide, can you help me? I followed this guide on another website, and what happened is that it said the image was unsigned, and it would post a weird series of letters when I started the phone, but it still worked. Then I went into magicdsk and to patch a file to try your method, and there was a new option for magicdsk to install the image, and I did this, and then my phone was rooted!
    Then I restarted it, and it wasn’t rooted anymore. I am afraid to use your guide because what if your files are unsigned? Can you provide an email? You have one of the only guides to root an e6.

    • Here we are using Magisk based method. Not TWRP. You have to patch the firmware from the official mirror. What here we are giving is Official version firmware. So, there will be no issues.

  3. After unlocking the bootloader, the phone will be stuck on the “bad key” screen for several seconds until booting to the system or fastboot mode. Any way to fix the “bad key” screen?

  4. I patched the file in my phone copied to the computer, but it is not signed. This is what I got:
    Image not signed or corrupt.
