Root Samsung Galaxy M10s SM-M107F Pie 9.0 using Magisk

After the successful sales in Samsung Galaxy M10, Samsung launched M10s with slightly modified specs. The one thing which attracted me is the Display. It comes with an sAMOLED Display. The previous have LCD Display. Once you used AMOLED displays, you can’t use LCD again. You will not get satisfied. Coming to specs, 3 GB RAM and Upper Mid-range processor, and One UI Pie 9.0, you can use this device without root. If you bought this mobile, you know the limits and your purpose. So, we can’t squeeze a lot of performance from this mobile. Everything is hardware limited.  This method is based on Magisk. So, We can’t install Custom ROMs. If your plan is using Stock ROM, then you can’t. When your purpose is to use Root required apps, you can proceed further. Developers and Regular root apps user, you know your reason and purpose. Follow the below guide to achieve root on your mobile.
Samsung Galaxy M10s with Rubber Shapes in Food Bowl

Why should you Root Samsung Galaxy M10s?

You should have a strong reason for rooting. Samsung Already released One UI 9.0 Pie and is already optimized. You have More than Enough 3 GB RAM to use daily apps without Lag for years. Yes, I Know, 3 GB RAM is may not enough for heavy usage. But, Trust me, One UI is far better than other Custom Skin OS. You can use this device without lag for years until Samsung mess with some Bloatware. But beyond, this not go reasons, you are addicted to some root apps, or you are a frequent user of some Custom OS, you can proceed further. But if you want to root because everybody is doing, I advise you, don’t root If you didn’t have any experience. For regular users, It can become a Nightmare.

How to Root Samsung Galaxy M10s Pie 9.0 (SM-M107F)

First of all, thanks to kriraj – XDA developer for TWRP support and topjohnwu – this genius is a one who discovered and maintaining Magisk. Samsung Galaxy M10s International variants come with a flexible bootloader. This means that the smartphone can be easily rooted. Also, the device can accept to install TWRP recovery or any other custom recovery file/app alike. Don’t try with Snapdragon US Variants like Verizon devices. They come with a locked Bootloader.

But In the below method, we are going to Root this device by using Magisk. You can install Official TWRP using the official App when it is released. TWRP recovery is a custom recovery file that must be installed on Samsung Galaxy devices because you can root them successfully. In this article, we explained the easiest method to follow and install TWRP recovery on Samsung Galaxy M10s. However, the tool required for rooting this device is the Magisk App.

With the help of TWRP Recovery, you can quickly flash the latest version of Magisk into your Samsung M10s to gain root access. Before sharing the tutorial, you may want to know that, with the TWRP recovery present on your device, you can easily install any custom ROM or firmware. Does it seem complicated? Relax, everything will be explained succinctly in bullets.

Things to check out for;

  • Check your device model number.

  • Install Latest Magisk Manager.
  • Make sure your device battery is charged above 50%

  • Backup your current files and data- Full Data Loss Process (save them on external storage).

  • You cannot use Samsung Pay, Secured folder, and some official apps from Samsung.
  • You can’t update your firmware, to get new firmware you have to follow the below steps with the latest firmware.
  • Read the full tutorial before the process.

Pre-Requirement Steps

Unlock Bootloader

Enabling developer option

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this; go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode and OEM Unlock. There is no complicated process in the Samsung Galaxy M10s.

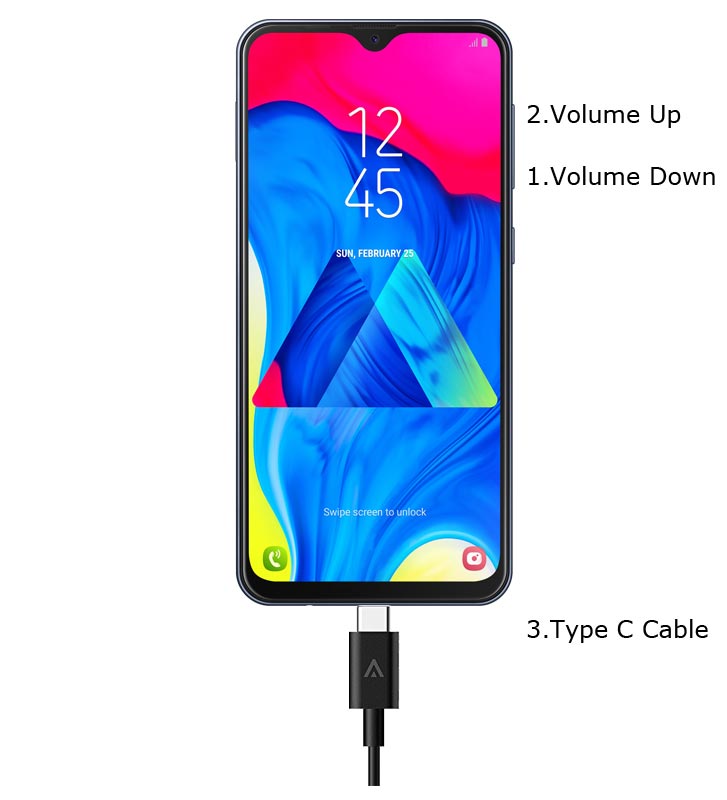

Samsung Galaxy M10s Download Mode

  • Switch off your device. Enter into Download Mode-> Volume Down+ Volume Up and Connect your mobile with PC using USB Cable. When Download mode warning screen Appears, Press Volume Up button to unlock Bootloader.

Samsung Galaxy Bootloader Warning Screen

  • The above process will wipe your User Data. After Setup your device, Please recheck the OEM Unlock in the settings. Sometimes It Will Lock Again.

Preparing Patched Boot Image file

  • Download and install the Samsung USB driver to your computer system.

  • Also, download the ODIN software. Select the above Oreo version in the ODIN list. Install ODIN on your PC.

  • You can use Phone Info to know your firmware version.
  • Download 7Zip-ZS. Extract the files in downloaded firmware using 7Zip-ZS. You will get four files. Copy AP.tar file to your mobile. (The AP file name will be long, make it short for a comfortable usage)
  • Download Magisk Manager (Download Latest version) or Magisk canary and Install it on your mobile. Open Installed Magisk and Select Install in Magisk; it will ask For zip file and Patch Boot Image File. Select the Boot Image file.

Magisk Boot Image File

  • Navigate to your copied Boot Image File and patch the file.

Magisk Firmware Patch Process

  • Wait for the process to complete, In the end, you will get magisk patched .tar file. The .tar file will be in the same folder where you have the Stock firmware file.
  • Copy magisk_patched.tar file to your PC.

Flash Patched Boot Image using ODIN

  • Due to Samsung’s new security restrictions, we can’t flash TWRP with Stock Boot on your mobile. So, we have to flash a patched boot using ODIN.
  • Unlock your screen lock. There should be no fingerprint, PIN Lock, Wipe. Set No lock in the settings.
  • Switch off your Mobile. Enter into Download mode->Volume Down+ Volume Up Buttons and Connect Your Mobile To PC via USB Cable, After Samsung Logo Appear, Release all keys.

Samsung J4 Plus Warning screen

  • After entering into Download Mode, it will say Warning, Press Volume Up button to continue.
  • Launch Odin Application.

ODIN Added Message

  • It Will Show the message added.
  • If you did not get this message Repeat the above steps.

ODIN software screenshot

  • After Getting Added Message Select, AP/PDA Button, then Browse for the patched Magisk .tar file select it. Along with this file, you should select and flash the other three non-patched firmware files. Un-Tick the Auto-Reboot.

Odin Auto Reboot

  • Press Start wait for the tasks to complete. After the process complete, Press Volume Down+ Power button to exit Download mode. When the screen goes off, Immediately Press Volume Up + Power buttons to boot into Recovery mode.

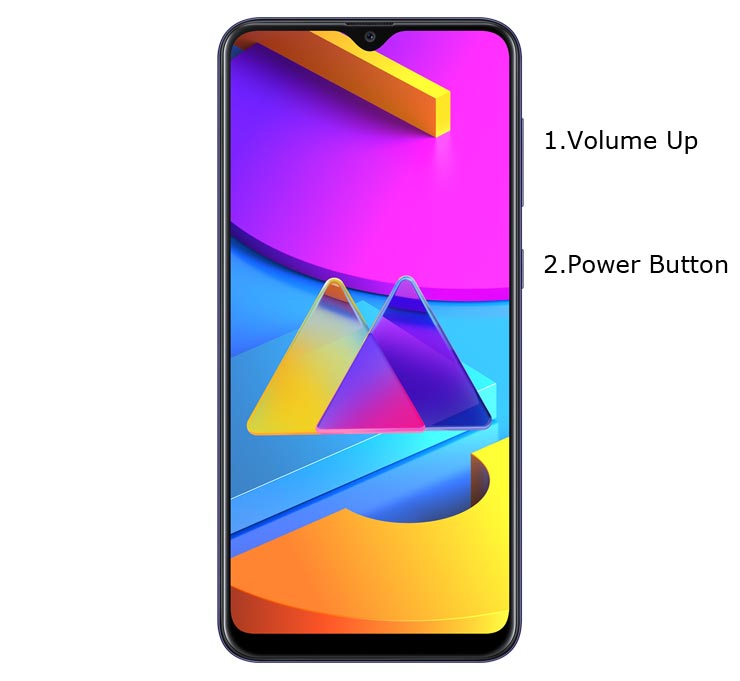

Samsung Galaxy M10s Recovery Mode

  • After entering into Stock recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase your saved data in your device. Don’t Boot into OS, Read below Boot stages before booting.

Samsung S10e Recovery Mode

Boot into Rooted OS

  • Press and Hold Volume Up + Power buttons, release all the keys once the Bootloader warning appears. You have to set up your device like a new device. You can check the root status using the Root Checker.

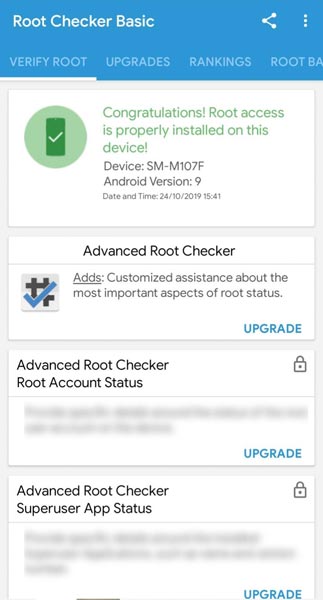

Samsung Galaxy M10s Root Checker Screenshot

  • Stock Recovery Boot – Press and Hold Volume Up + Power buttons, release keys while you hold the Volume Up key.
  • You will see Magisk Manager in your App drawer. If you can’t find the app, you can install Magisk Manager on your mobile.

What More?

In my opinion, you don’t need rooting for your Samsung Galaxy M10s. If you thought you could Improve Performance By root; With the Exynos 7884B Octa-Core processor and 3 GB RAM, your device can perform well. If you don’t know how much RAM you need, You will never use this much RAM. You should not Boot into Normal OS Booting, by pressing the power button, after firmware flash. It will boot you to a Non-Rooted environment. If you accidentally urged and boot frequently, Don’t panic, after setup everything, switch off your device and boot into Rooted OS using above mentioned keys. If you root your device, because of the battery drain issues, you can optimize your battery without root. Beyond this, if your purpose is to Disable Bloatware apps, you can do that without using this method. When you have any suggestions or doubts, comment below.

Source, (2), (3)

Also Read-  Download Samsung Galaxy A52 4G LTE SM-A525F/M Android 11 One UI 3.1 Stock Firmware
Share This Post:

19 thoughts on “Root Samsung Galaxy M10s SM-M107F Pie 9.0 using Magisk

  1. I tried all the above steps, and after the last step, I set up my device as new, then my storage decreases to 16gb. Magisk app wasn’t installed I install it again, then it shows the message to install magisk manager and ask me to flash the file back, and when I boot to Odin mode, it shows custom os plz help me what to do after this.

  2. I am going to try this rooting method before updating into android 10 ..
    I hope if anything goes wrong…someone will be able to help me out..
    Thank you.!

      • I got five files after I extracted from the firmware zip.

        I patched the AP.tar with magisk on my phone. Then I opened Odin since there are five files.
        I place the BL file on the BL category.
        I placed Magisk_patched.tar on the AP category and so on.
        now I am confused to put the file on CSC category because there r 2 files named as
        CSC_OMC and HOME_CSC….
        so I decided to put HOME_CSC on CSC category

        I clicked on START, but after flashing and showing PASS in Odin my phone restarted on its own

        Now I am stuck in downloading mode.
        even if I restart my phone, it again goes back to downloading mode
        and
        on left above screen it says
        VBMETA: error verifying vbmeta image
        VBMETA: VERIFICATION disabled bit is
        CUSTOM VBMETA
        VBMETA: no sign info
        please help me …..:'((

        • CSC files are carrier-specific files. For International variants, You don’t need to flash CSC. You can go with the other three data.

  3. When I flash the files, then it directly goes into downloading mode, and thus, I can enter into recovery.
    But when I only flash AP, then only the recovery mode comes.

    Well.. after trying soo many times with your method, I am very sorry to say that I think some parts of the purposes mentioned above aren’t working as it’s supposed to be.
    Please correct it ASAP, or else some other also like me also might face this kind of issue like me.

    • Hi, Your current firmware of the mobile should match with the patched firmware. When you flash different region firmware, It won’t work. We already mentioned this small thing in the guide, after the successful ODIN Flash. You have to exit download mode and immediately boot to the recovery and wipe user data steps. If you boot into OS, You will face some issues.

  4. 1. I m from India
    2.the code is INS
    3., of course, I would flash the INS firmware, I woud never touch other countries or different regions which I know very very well.
    4.i even checked my build number or firmware version 10 times before extracting the firmware zip file and putting to magisk manager

    I think you are not exactly getting my point what I am trying to say here is…
    (please read carefully)
    I exited download mode after the magisk patched.tar and tried to get into recovery.
    This is where the issue comes; it doesn’t go to recovery… it again goes to downloading mode and on the left side above its written

    VBMETA: error verifying vbmeta image
    VBMETA: VERIFICATION disabled bit is
    CUSTOM VBMETA
    VBMETA: no sign info

    I tried again, but this time I selected only MAGISK_PATCHED.tar in AP.
    This time the recovery mode came (because I only flashed MAGISK_PATCHED on AP category, I dint flash those other non patched four files)
    I did factory reset or wipe reset data and reset caches. But it still says magisk manager not installed.
    I apologize for replying to too much long and details.. but you were not getting my point what I was precisely trying to say above in those two posts…

    please read carefully again and tell me what issue I have got even tho i
    read and tried thoroughly every step.

    • Thank you for explaining the whole situation to us.
      In the second method, You flashed AP alone, and you can boot into OS.
      After the first boot, install the Magisk Manager APK file and select install. After the installation, boot into the rooted environment as per the key combinations. When you use different combinations, it will boot your mobile into a non-rooted OS.

  5. How do I boot into rooted environment as per the key combinations… ??
    The only one I know is downloading mode and recovery …please explain in details
