Root Samsung Galaxy Note 5 SM-N920 Nougat 7.0 using TWRP (All Variants)

Samsung Galaxy Note 5 comes with 4 GB RAM. It is Enough to manage your apps, But with old Nougat OS, sometimes it is lag. So, If you want to use this perfect mobile, you should remove and hibernate some apps. To do this, you have to root your mobile and manage full permissions using Magisk. After rooting and Optimize some apps, you can expect a 30-50% performance increase. If you use the Custom Lite OS, you can expect more performance. It has good hardware, So we can still use this mobile.
Samsung Galaxy Note 5 wirh root Background

Why should you Root Samsung Galaxy Note 5?

The security patch updates and monthly updates stopped by Samsung. 4 GB RAM is enough, But with old Softwares, You can feel the difference in performance issues day by day. There are plenty of Custom ROMs available that are work well with Samsung Galaxy Note 5.

How to root Samsung Galaxy Note 5 SM-N920? (International, Canada, T-Mobile, Sprint, US-Cellular, and China)

Samsung Galaxy Note 5 SM-N920 comes with a flexible bootloader other than Verizon devices. Verizon devices come with locked Bootloader. This means that the other smartphone variants (Samsung Galaxy Note 5) can be easily rooted. Also, the device can accept to install TWRP recovery or any other custom recovery file/app alike.

TWRP recovery is a custom recovery file which must be installed on Samsung Galaxy devices because you can root them successfully. In this article, we explained the easiest method to follow and install TWRP recovery on Samsung Galaxy Note 5. However, the tool required for rooting this device is the Magisk App.

With the help of TWRP Recovery, you can quickly flash the latest version of Magisk into your Samsung Galaxy Note 5 to gain root access. Before sharing the tutorial, you may want to know that, with the TWRP recovery present on your device, you can easily install any custom ROM or firmware. Does it seem complicated? Relax, everything will be explained succinctly in bullets.

Things to check out for;

  • Check your device model number.

  • Select TWRP Based on the mobile model number.
  • Make sure your device battery is charged above 50%

  • Backup your current files and data, just in case (save them on external storage).

Pre-Requirement Steps

Enabling developer option

  • Enable USB Debugging Mode and OEM Unlock in your mobile. To do this; go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode and OEM Unlock. There is no complicated process in the Samsung Galaxy Note 5.

  • Also, download the ODIN software. Select above Oreo version in the ODIN list. Install ODIN in your PC.

  • Download Magisk.Zip (Latest Version) and Copy it to Your Phone Memory.
  • Download and save the TWRP File. Please select correct model number TWRP file.

  • International Variants (SM-N920C, SM-N920CD, SM-N920G, SM-N920I)
  • China (SM-N9200, SM-N9208)
  • Korea (SM-N920K, SM-N920L, SM-N920S)

Flash TWRP using ODIN

Samsung Note 5 Download Mode



  • Restart the device. Then, enter into Download mode. To do this; press and hold down the Volume Down + Home+ Power buttons at the same time for some time.

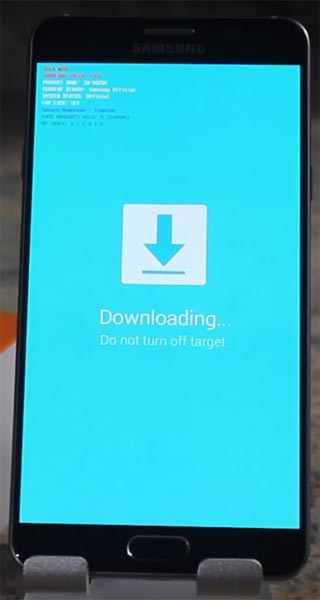

Samsung Note 5 Download Mode Warning Screen



  • Press the Volume Up button to continue when you see the warning message.

  • Now, connect the Samsung Galaxy Note 5 mobile to the computer via USB cable.

  • Launch the Odin app on your computer. If the device is detected by this app (Odin), it will show you a message that reads – added!!!

ODIN Added Message



However, if the device is not correctly connected to the PC, you won’t see this message. So, you have to check the USB cable if it is good and reconnect the device.

  • After connecting the Samsung device, click on the PDA/PA button to browse/search and get the TWRP from where you saved it on your PC. Also, navigate to “options” and tick the Auto Reboot.

Odin Auto Reboot

  • Click on “Start”

  • Once the file is loaded into the device, reboot your device.

  • Kudos, you have just Installed the TWRP on your Samsung Galaxy Note 5. If you installed TWRP, Don’t turn on your mobile. Immediately, move to Magisk Installation steps.

Install Magisk in your Samsung Galaxy Note 5 using TWRP

  • Boot it Into recovery mode->Volume Up+ Home +Power Button.
  • Now it Will Boot into TWRP Recovery Mode.
  • Select Wipe->Advance Wipe->Select Cache Data.
  • Return to Home of TWRP select Install.
  • Select Magisk.Zip.
  • After the Installation Reboot Your Mobile.

What More?

Samsung Galaxy Note 5 model has some Glitch in Last software updates. If you use Lite weight Custom Roms, you can expect a considerable performance Improvement. So, If you have little knowledge in tech, I advise you to Root and uninstall some unwanted apps. You can also flash some Custom ROMs. If you flash Custom ROM, check what is working and what is not working. It is wise to use Some Official Custom ROMs like Lineage.

Share This Post:

14 thoughts on “Root Samsung Galaxy Note 5 SM-N920 Nougat 7.0 using TWRP (All Variants)

  1. Hi
    I need help with my n920a phone and i did a sofware for it and then i have to ask drk files and i need to rut to solve the problem please help

    • AT&T devices are hard to flash due to locked Bootloader if you want to make software update Try Samsung Smart Switch.

  2. Hi..does any Samsung galaxy note 5 stock rom variant support VoLTE..i have N920G (CSC-INS) which supports 4g network (i am using Airtel which supports VoLTE in my locality) but no VoLTE option in mobile. So I am looking for Samsung galaxy note 5 stock rom of another variant which has VoLTE enable the option. I don’t want to root my mobile nor wish to switch to any custom rom as it will trip Knox hence won’t be able to use Samsung pay and Samsung health. So it will be helpful if anyone can answer this.

    Thanks in advance.

    • Apps and some adjustments to provide VoLTE may not work correctly. It is better to flash the Asia related firmware and configure Mobile Network as per your Mobile Operator Instructions.

  3. Hi,
    I have a Note 5 from Verizon which could not be configured to use data in India (Airtel). Even though the voice calls work, how should I go about updating the software and removing the Verizon bootloader and welcome screen?
    Thanks,
    Sam

    • The problem is you are using a GSM SIM. Verizon mobile supports only CDMA. You should contact your current Mobile Operator and ask for the solution. You should tell this reason exactly. Or Else they may suggest you other things which may not work.

    • After Marshmallow version, most of the Samsung can’t be rooted using the app only method. You need a PC way.

  4. Hello,
    I have a Note 5 N920P thru Sprint. The problem I’m having is the ODIN app can’t see my phone. I’ve downloaded a few versions, and it doesn’t seem to recognize my phone when I attach my USB cord to my laptop. A few of the latest releases, my computer doesn’t recognize the file after. Whereas the older version and the 10.7 loads the interface but still won’t show my phone. Is there something I’m missing, or is there a resolution?
    Thank you again

    • Try with different or original USB cable from Samsung. Most of the time, Samsung mobiles will not work with all cables.

  5. My note5 battery & software already change to a new one, so know all my memory pic in gallery/camera already missing..can you help me sir?..teach me pls..my daughter photo all missing.

    • Fortunately, we can recover most of the image files. Follow the root process and use Recovery software like Easeus. When you make a recovery, you should recover all the files in the first try. When you do the second or third time, you will lose a lot of data.
