Download Sony Xperia XA2, XA2 Ultra, XA2 Plus Oreo Firmware (.ftf creation)

When Sony Released Sony Xperia XA2, They released three variants for different people needs. Compact XA2 Edition with just 5.2 Inch Display. Other options have 6.0-inch Displays. Also, the RAM varies based on the devices. The mobiles were frequently getting security patch updates.  So, When you need Stock firmware? You accidentally bricked your device during Custom OS flash, so you decided to come back to Stock. You rooted your device; Sony released some updates with added features. In those situations, you have to flash firmware manually. Just follow below steps carefully. Why didn’t we include .ftf file mirror? Sometimes It broke, We can’t cover all variants. But using the below method, you can get 100% original Stock firmware.

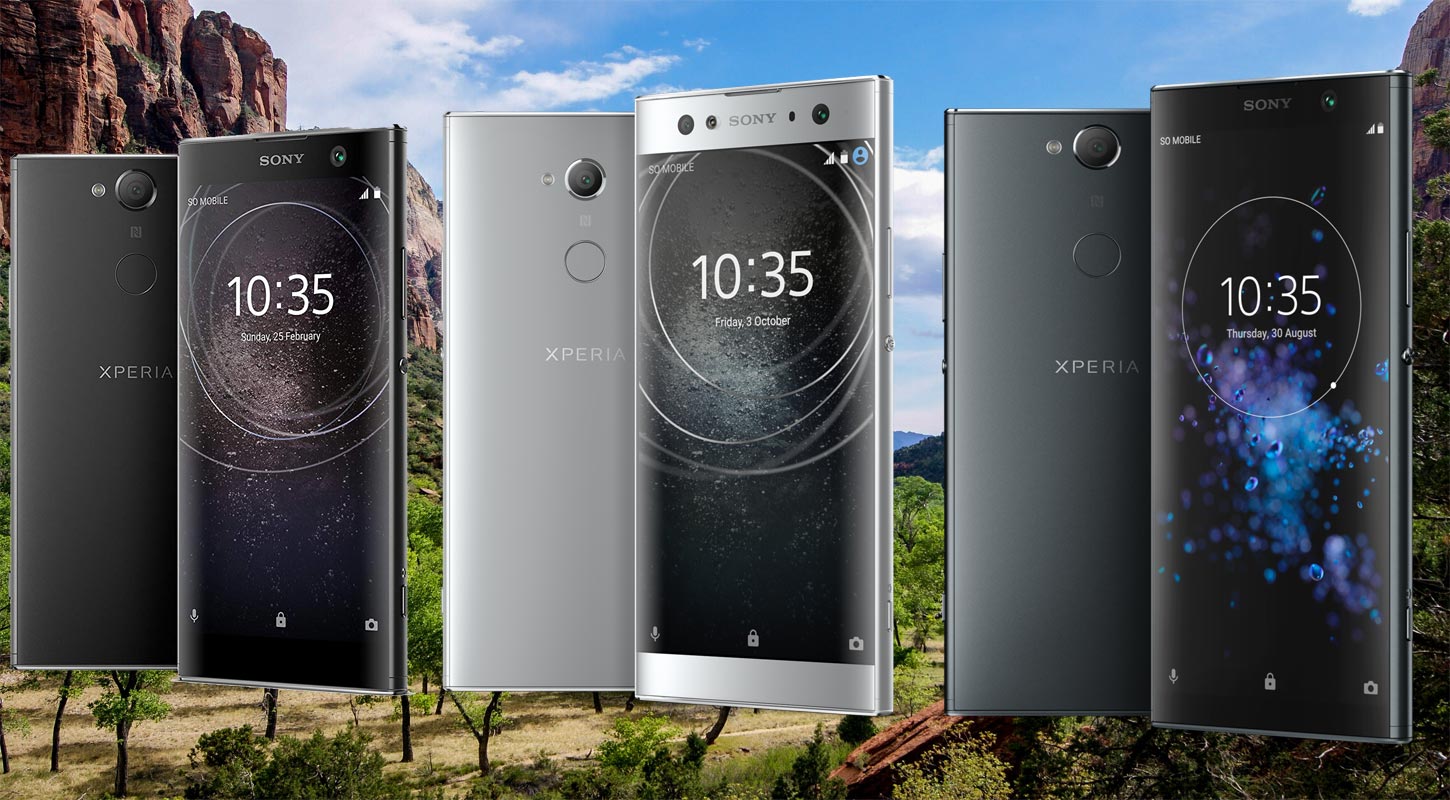

Sony Xperia XA Devices with Forest Background

Unlock the bootloader

Some USA or Other country devices are coming with Bootloader locked. If your device is Bootloader locked, you can unlock its using Unlock Bootloader steps.

Things to note and do before running Sony manual firmware update

Official OTA Method

If you want to update a security patch to the current month. Don’t go for the manual method. Try this Automatic method.

The process is straightforward and simple;

checking for software update android

  • Go to your device setting menu and scroll down to the bottom

    Samsung Galaxy S23 Renders
    Samsung Galaxy S23 Renders
  • Tap on “Software Update”

  • You may have to refresh the page to start the OTA upgrade process.

Run a full backup

It is essential that you run a full backup of all files, document, and data on the Sony Xperia Android device to be worked on. This is because even if you engage a professional to update your firmware if it is not done correctly, then, you’ll lose all the data saved on the device. Thus, we always advise running backups to be on the safe side.

Also Read-  Download Samsung Galaxy S9 Unlocked USA SM-G960U1 Android 10 One UI 2.0

Charge the device fully

Your Xperia device has to be fully charged, or the battery percentage should be more than 80%. If your device is not loaded, kindly wait until it is charged before you continue

Download the needed tools/software

To perform this action, you need to download the required tools for i. Here, we will provide the official links to download the tools you need; ensure you download them and install on your PC and smartphone respectively. For installing firmware on Sony Xperia devices Download Xperifirm. With XperiFirm you can limitlessly download any Sony firmware from official servers.


The official Sony Xperia tool for downloading the right firmware for all Sony devices running on the Android operating system (any version) is XperiFirm ( If you use Old version, you can’t download firmware, So I advise you always to use Newer version, If your versions are old, you will get the prompt to get newer version). Also, it could be used for Sony Android smartwatches. Install software in Local Disk C (Admin Privilege Disk).

Androxyde FlashTool

The Androxyde FlashTool (Direct Mirror / AFH Mirror ) is the best flashing tool for Sony Xperia devices; just as the Odin flashing tool is best for Samsung Galaxy devices. Get this tool installed on your working PC and continue with the steps below; Also install this too in Local Disk C.

Download and Flash Sony Xperia XA2 Official Firmware

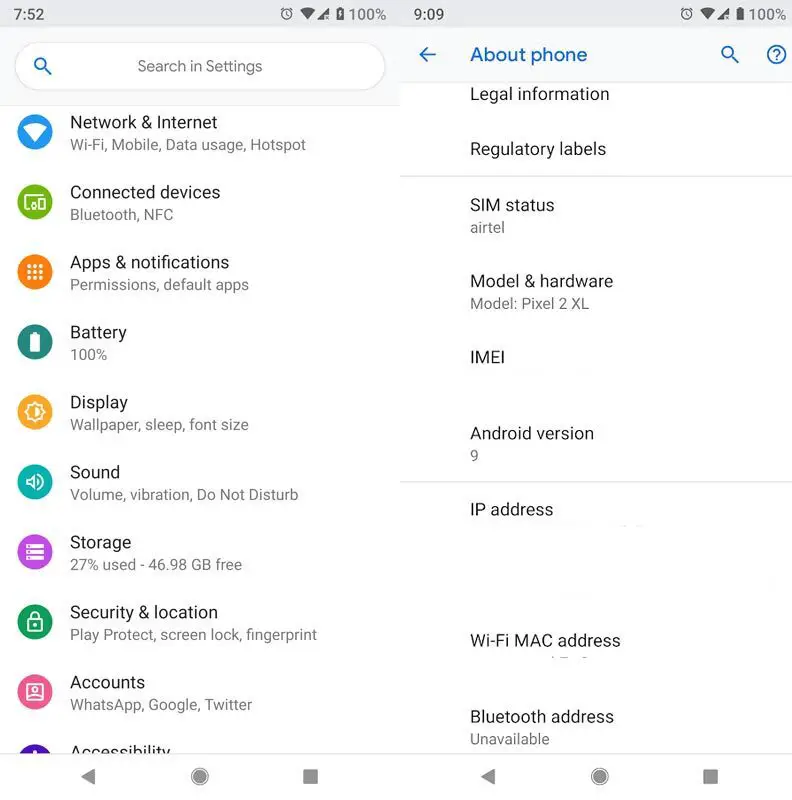

Checking Model Number Pixel 2 XL

Selecting firmware in Sony Xperia is Little bit tricky. Before Downloading any firmware, you should find your model number. You can do this by going to Settings>> About Phone >> Model Number. You should also know your Operator and Region.

Sony Xperia XA2 Model Numbers

International Variants

  • H3113
  • H3123
  • H3133
  • H4113 Dual
  • H4133 Dual

Xperia XA2 Ultra Model Numbers

International Variants

  • H3213
  • H3233
  • H4213 Dual
  • H4233 Dual

Xperia XA2 Plus Model Numbers

International Variants

  • H3413
  • H4413 Dual
  • H4493 Dual
Also Read-  Install Moto G4 Play Pixel Experience Pie 9.0 Official ROM

Getting started…

1: Download Xperia XA2 RAW firmware using Xperifirm


Only Latest firmware will be Available in XperiFirm. Sony Xperia XA2, Ultra, Plus Devices available with Oreo Update only. There is no sign of pie yet.

When selecting a region, I advise you to consider the Operator Also.

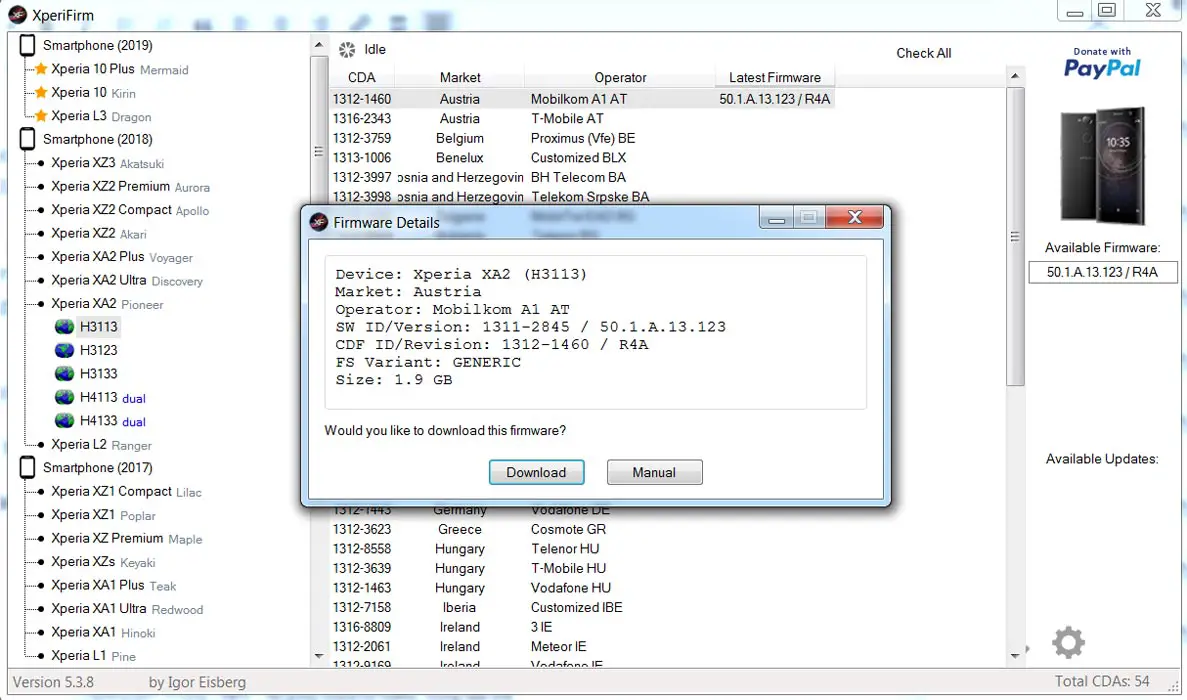

Sony Xperia XA2 Firmware Selection


  1. Extract the XperiFirm zip files on your PC and install the application file. Launch/open the app after installation to continue

  2. Now, choose your Sony Xperia device model to download its firmware files which are based on your region/country. When you have seen the different firmware for your device based on your region, go ahead to download it.

  3. After the download, locate and delete any file with the following name – fwinfo.xml in the downloaded files. The data is not necessary so don’t panic about exercising your delete button on it.

After the steps above, move on to Androxyde FlashTool steps.

2: Creating.ftf file Using Androxyde FlashToolSony Flash Tool Decrypt

  • Navigate to Tools > Bundles > FILESET Decrypt >Select files from Folder (Select whole folder).

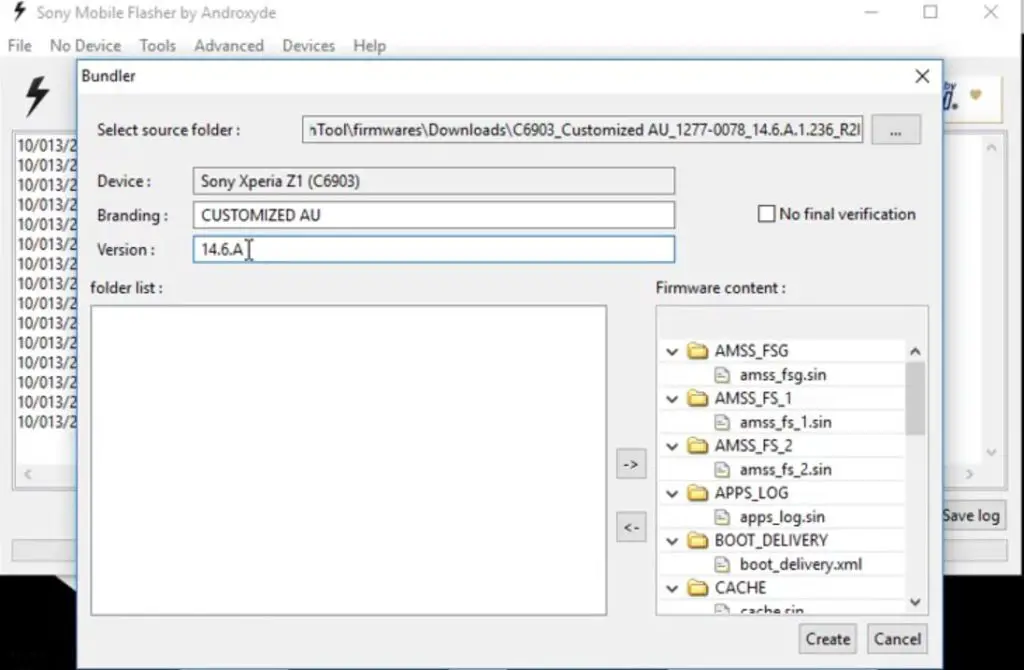

Sony Flash Tool ftf file create step 2

  • Give Device Name, Branding and Version From the Xperifirm Tool (You can also give your Details, But to avoid confusion, follow correct details). Select all the firmware files downloaded from Xperifirm, Select right arrow in the flash tool. It will move all of your data into “Firmware Content.” Now tap on “Create / Convert.”

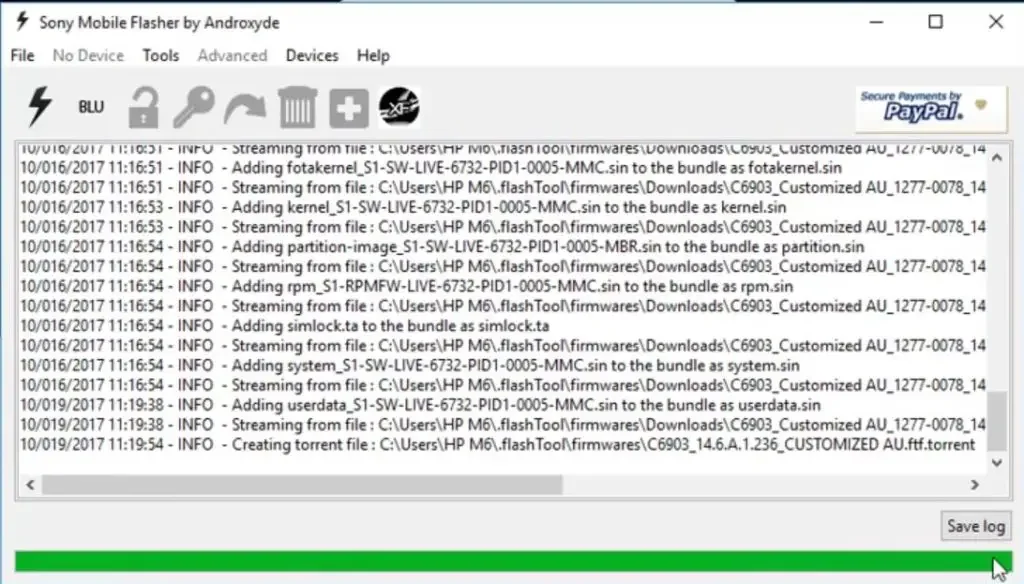

Sony Flash Tool ftf file create

  • Wait for the process complete. After the process complete you can find the .ftf file in the log.

  • Now, you got the .ftf file needed for flashing Sony Xperia devices. Don’t close this software.

3: Flash a new firmware in your Sony Xperia XA2 Devices

Soon you have .ftf file from the above steps. Since you have downloaded the Androxyde FlashTool, continue below

By Default, the downloaded file will be in Flashtool subfolder. If you installed other then C:/ in Windows, Copy the downloaded firmware files (with .ftf extension) to this folder C: Flashtool/firmware/Downloads.

Also Read-  Install Samsung Galaxy Note 10 SM-N970F/N Lineage OS 18.1 Android 11 Official ROM

Enter into Fastboot Mode

Xperia XA2 Fastboot Mode


  1. Switch Off your mobile.
  2. Connect your Xperia mobile device via USB Data Cable

  3. Press the Volume Up Button. Now you are in Fastboot Mode.

Flash Firmware

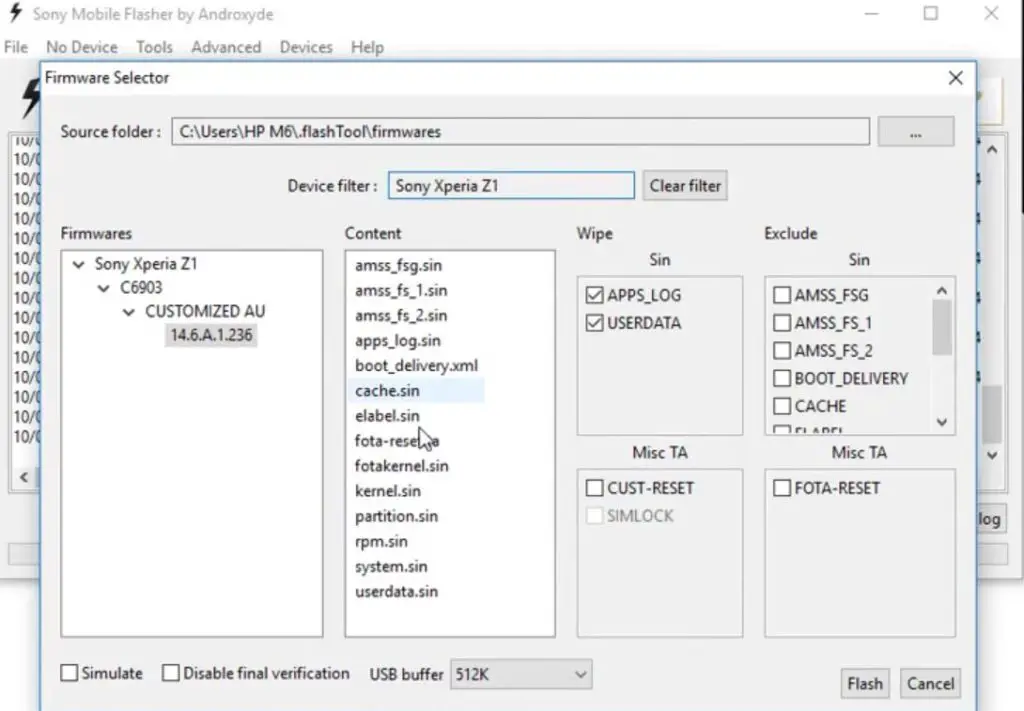

  1. After entering into fastboot mode, select the flash button with an electric symbol. You should choose Flashmode too.Flash Firmware Sony Xperia using Flashtool

  2. Select the folder as C: Flashtool/firmware. You will find the created .ftf file with version. Select the file.

  3. In device Filter option, Select your device.
  4. On the right side, you will find “Wipe.” Tick the “Wipe data” and “Wipe Cache” options.

  5. Also, tick no “Final Verification” and tap ok

  6. Follow the onscreen instructions that will appear to keep going

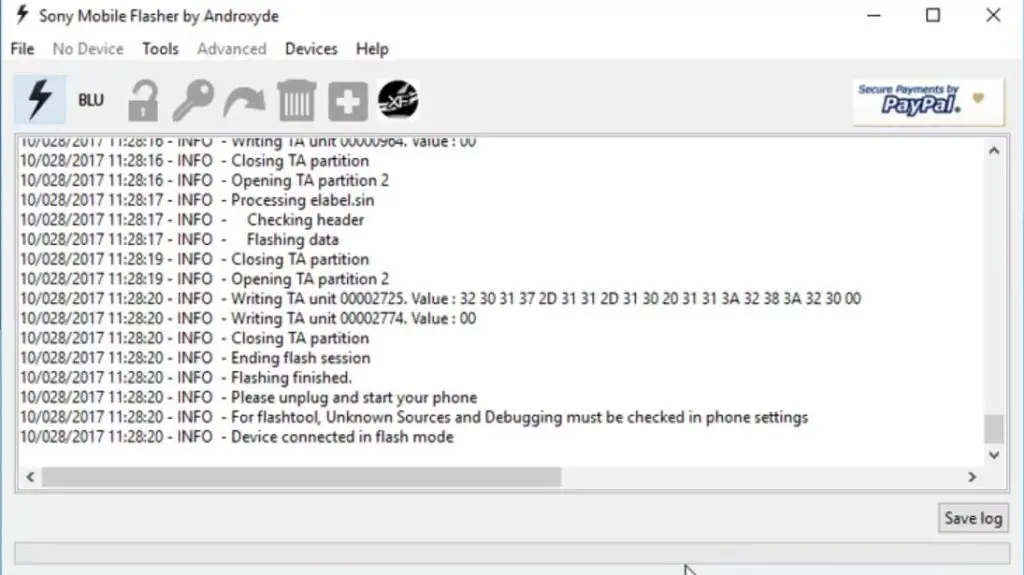

  7. Then, wait for the process to be complete.Sony Flashtool Firmware Flash Success Message

Once the Process complete, You will get the message “Flashing Finished.” Turn on your Sony Xperia mobile device; you have just flashed new firmware into it.

How to see your current firmware version?

You can check the firmware details here – go to device settings >>> About >>> Version.

Nothing more, enjoy!

What more?

As I already mention selecting firmware is an essential step in this process. So follow Model numbers correctly. If you face any problem, comment below, we will try our best to solve your problem.

Source: XDA Developer- IgorEisberg
