Root Sony Xperia XZ1 Pie 9.0 using TWRP and Magisk

Sony Xperia devices are always unique in some way. Their dedication towards both Hardware and Software are still high. They provide regular patch updates and Major upgrades to all their device. Sony Xperia XZ1 got Pie 9.0 update. When coming to developing techniques like rooting, Sony devices need some additional steps. Fortunately, they support the official bootloader unlock process, that makes the process quite comfortable if you are a regular user. In my opinion, you don’t need to root your mobile until you have a strong reason. Rooted mobiles need proper optimizations. You will lose Official updates from Sony. You have to update your OS If there is a critical update manually. Compare with other Manufacturers; Sony always provides Software support. If you are a Developer or regular root apps user, you can follow below guide to Root your mobile.Sony Xperia XZ1 with Grey Ice Land Background

Read the article thoroughly before starting the process. It will give some ideas for the preparation. If you planned to flash Custom ROMs, you should check what will work and whatnot. Unofficial ROMs may contain a lot of significant bugs. If you want to install the update using TWRP, after the firmware flash, you should flash Magisk every time.

Why should you Root Sony Xperia XZ1?

We thank XDA Developer- topjohnwu, oF2pks (Who successfully tested this method) and linckandrea (For the Kernel file) Without their hard work, We can’t make this method. Coming to root, you should have a proper reason, and you know what you are doing. Yes, with a minimum of 4 GB RAM and Qualcomm MSM8998 Snapdragon 835 processor, You can use this mobile for regular tasks without root for 2-3 Years If you use correctly. Software is better compared with other manufacturers, Custom skin OS. Don’t root because everybody is saying when root your mobile it can become fastest. No. Rooting is to extract some performance from the device. But, you already have Powerful specs and software. So, If you are addicted to some root apps, you can root. But, if you want to test, I won’t recommend it.

How to Root Sony Xperia XZ1 Pie 9.0 (G8341/G8342 Dual/G8343)

Sony Xperia XZ1 International Variants comes with a flexible bootloader other than some carrier locked devices. This means that different smartphone variants can be easily rooted. Also, the device can accept to install TWRP recovery or any other custom recovery file/app alike.

TWRP recovery is a custom recovery file which must be installed on your devices because you can root them successfully. In this article, we explained the easiest method to follow and install TWRP recovery on Sony Xperia XZ1. However, the tool required for rooting this device is the Magisk App.

With the help of TWRP Recovery, you can quickly flash the latest version of Magisk into your Xperia XZ1 to gain root access. Before sharing the tutorial, you may want to know that, with the TWRP recovery present on your device, you can easily install any custom ROM or firmware. Does it seem complicated? Relax, everything will be explained succinctly in bullets.

Things to check out for;

  • Make sure your device battery is charged above 50%

  • Backup your current files and data, full data loss process (save them on external storage).

Pre-Requirement StepsOnePlus 6T OEM Unlock and USB Debugging

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this; go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode, OEM Unlock. There is no complicated process in Sony Xperia XZ1.

  • Also, download the ADB drivers. Install it on your PC.

  • Download Magisk.Zip (Latest Version) and Copy it to Your mobile SD card or Pendrive OTG Cable.
  • Pie Kernel (Optional) Download and Copy it to Your PC. This file helps you to maintain the Bootloader unlock and debug some Root issues in your device.
  • Copy all the above files into the Fastboot folder.

Unlock the bootloader using ADB and Fastboot

Your mobile should be supported to get the unlock code. Check this using the below step. If your mobile is supported get the code and unlock using unlock stages.

Check Compatibility

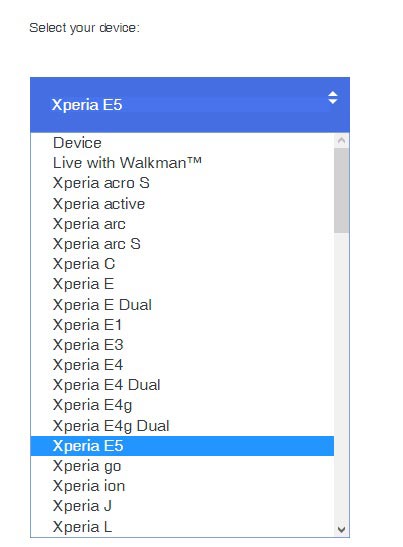

  • Go to Sony Developers Official Page to check if your device model is accepted for this.
  • You should signup for a new Sony Xperia account or log in with details to an existing account. Alternatively, you can use your Gmail account.

  • The device must be connected to the internet

  • Dual SIM Sony devices have two IMEI numbers. Use the IMEI 1 to get the exact unlock code for your deviceselect device sony

  • This action works for all Sony Android devices. However, you still have to check out if your device model supports such action (unlocking the bootloader);

If your device is supported, then, go ahead with the steps below to unlock the boot loader.

Unlock Steps

  • Open your phone dialer and dial this code – *#*#7378423#*#*

    • Go to Service Info >>> configuration >>> rooting status >>> Check to see if bootloader unlocking is allowed or not. If it is allowed, then continue below.

    • Get the “download_inf.zip” file and paste it into the folder where you installed ADB and Fastboot.

  • Dial *#06# and copy down your Sony Mobile IMEI number.

fill details to get unlock ID sony

  • Return to the Sony Official page, select your device model, and provide your Email Id.

  • You will receive a link to your Email id, click on the link to get the Unlock code to use and unlock your bootloader.

  • Switch off your device. Then, enter into Fastboot mode. To do this; press and hold down the Volume Down button connect mobile to your PC using a USB Cable.
  • Go to the ADB and Fastboot folder, Launch the fastboot on your computer. Open a Command prompt on your PC and type the below command.

  • fastboot devices
  • It should display the connected devices. If you didn’t get the device, restart the command prompt and Disconnect and Connect your Sony Xperia XZ1. If you are detected type the below command and Hit Enter.
  • fastboot oem unlock 0x<insert your unlock code>

Note: you have to replace the key with your own generated Key

  • Tap “Enter” and wait for some time

  • Your mobile bootloader is now unlocked, reboot the device. Move to flash TWRP steps.

Flash TWRP

Sony Xperia XZ1 Fastboot Mode

  • Switch off your device. Then, enter into Fastboot mode. To do this; press and hold down the Volume Down button connect mobile to your PC using USB Cable.
  • Launch the fastboot on your computer. Open a Command prompt on your PC and type below command.

  • fastboot devices
  • It should display the connected devices. If you didn’t get the device, restart the command prompt and Disconnect and Connect your Sony Xperia XZ1. If you are detected type below command and Hit Enter.

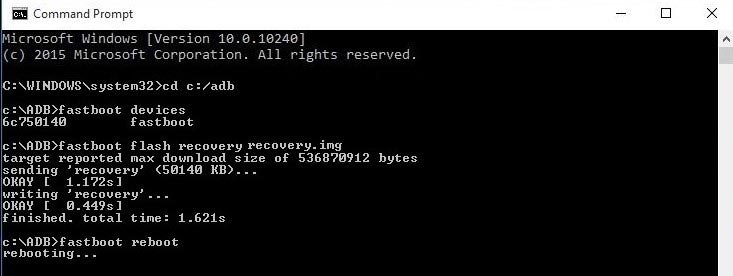

Fastboot Flash Recovery

  • fastboot flash recovery recovery.img
  • After the process complete, Type below command to boot into TWRP.
  • fastboot reboot
  • If you can’t reboot your mobile using above command, Press Volume Down+ Power button to exit Fastboot mode. When the screen goes off, Immediately Press Volume Up + Power buttons to boot into Recovery mode.
  • It will boot into the temporary TWRP. Don’t Boot into standard OS until we flash magisk.

Install Magisk, and Kernel in your Sony Xperia XZ1 using TWRP

  • In TWRP, Make a full Backup on External SD Card or Pendrive using OTG Cable.
  • After the process complete, Reboot to Bootloader using TWRP Option. Reboot->Reboot Bootloader.
  • Go to TWRP menu. Select Wipe->Advance Wipe->Select Cache Data.
  • Return to Home of TWRP select Install.
  • Select Magisk.Zip.
  • Again Return to Home of TWRP select Install.
  • Select Kernel.Zip.
  • After the Installation Reboot Your Mobile.

Sony Xperia XZ1 Pie Root Checker

What More?

In my opinion, you don’t need to root for your Sony Xperia XZ1. If you thought, you could Improve Performance By root; With the Qualcomm MSM8998 Snapdragon 835 Octa-Core processor and 4 GB RAM, your device can perform well. If you don’t know how much RAM you need, You will never use this much RAM. Don’t Install any apps other than trusted sites on rooted devices. Third-party site apps can contain some background codes. So, Check twice before installing those apps. If you want to return to stock firmware, flash Sony Xperia XZ1 Pie 9.0 firmware. If you face any problems during this process, comment below.

Source, (2)

Also Read-  How to use Sony PS5 DualSense Controller in Android 12 Mobiles?
Share This Post:

24 thoughts on “Root Sony Xperia XZ1 Pie 9.0 using TWRP and Magisk

  1. I don’t want to delete DRM keys as well as I need xreality engine for video optimization, how can I backup DRM keys and restore it later?

    • We already attached Pie Kernel; It will do that work. You can also use other kernels. There are plenty of available options. All you have to do is flash the Kernel during the Magisk installation and backup the DRM files either by separate backup or full backup.

  2. I can’t get the device into fastboot. I’ve followed every step, multiple times, I’ve factory reset the phone, tried a different cable, worked on a different computer, but it gives me nothing after I attempt to put into fastboot and I write “fastboot devices.”
    Before attempting the fastboot, it is detected in adb when I type “adb devices,” I’ve got the oem unlock enabled, USB debugging allowed, I’ve confirmed it is “bootloader enabled” with the *#*#7378423#*#*.
    I’ve tried both the mechanical way (volume button and plugging in) and the command line “adb reboot bootloader”; both bring up the blue light and… nothing.
    Of note, Xperia companion says it’s locked every time I “try” to put it into fastboot… don’t know if that has anything to do with it.

    • So I made it into getting fastboot, had to press volume up and not down.
      But now it won’t boot into recovery. The command you write “fastboot reboot” doesn’t boot it up into recovery; “fastboot reboot recovery” would, if my phone could successfully boot into recovery.

      • So I’ve gotten it into TWRP recovery. Finally, you need to unplug the phone and hold the volume – and power until the screen turns on, then you wait, and it should open. Using the command line doesn’t work for me.

        FYI, I’m using a Sony Xperia ZX1 G8343 that was bought in Canada.

  3. Hi, I know this comment may be a little late, but I need help.
    After launching the fastboot reboot command, my phone just rebooted, not even entering TWRP, and giving me the message “your device software can’t be checked for corruption, please lock the bootloader.” After that, he rebooted himself and returned to the practically formatted operating system. What do I do? Please help me !!

  4. When I want to write a fastboot device in command prompt
    it just says: “‘fastboot’ is not recognized as an internal or external command,
    operable program or batch file.”

    • You can back up your app data using Google Account. Save other media files in external storage. You can also take backup in the first boot of TWRP.

  5. Hello, I have the Xperia xz1 compact 9.0 Android G8441, number build 47.2.a.11.128. I have to root it to recover some deleted files. Does this tutorial work for my model phone? I also would like to keep the DRM keys, but I don’t know-how. Can you help me please? Thank you
