Xiaomi Black Shark 4 Modes, Reset and SAR Value

by Selva Kumar A Leave a Comment

Before a few years, Smartphones only fall into three categories: Entry, Mid-Range, and Flagship mobiles. After Other popular product companies begin to release smartphones, They begin to use their technology in mobiles. Yes, I am talking about exclusive Gaming mobile from Asus. After the success of ROG Phones, Other Popular companies like Xioami began to release Black Shark- A specialized gaming phone. All of the Gaming phones are spec bundles. It means They have more hardware resources than flagship-level mobiles. So, It can handle many daily apps without issues. Xiaomi Black Shark 4  comes with Qualcomm SM8250-AC Snapdragon 870 5G processor and 6-12 GB of RAM. It is a beast in specs. But when you face any software issue during regular usage, you can fix your mobile by booting into Troubleshoot modes. Here we listed All Xiaomi Black Shark 4 modes and respective boot keys. We also listed Xiaomi Black Shark 4 SAR value for your reference.

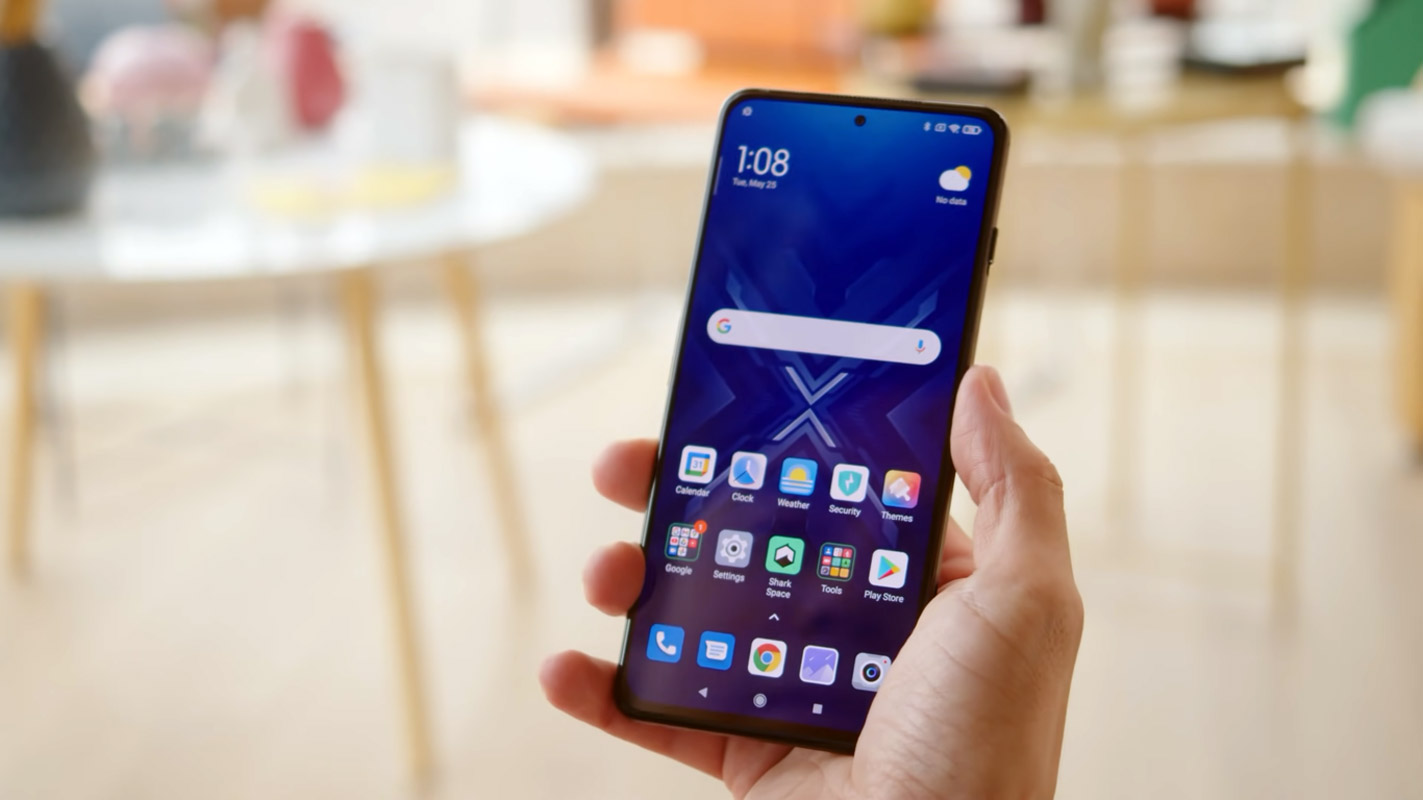

xiaomi black shark 4 unlock screen

Table of Contents

  • Xiaomi Black Shark 4 Modes
  • Boot into Fastboot/Bootloader Mode
    • Unlock Xiaomi Black Shark 4 Bootloader using ADB and Fastboot
    • Flash Xiaomi Black Shark 4 Firmware using Xiaomi Flash Tool
    • Flash Files using ADB and Fastboot
  • Enter into Recovery Mode
    • Stock Recovery
    • TWRP Recovery
  • Boot Xiaomi Black Shark 4 into Safe Mode
  • Wipe Cache Data Partition
    • Stock Recovery Method
    • TWRP Recovery method
  • Reset Your Xiaomi Black Shark 4 Mobile
    • Stock Recovery method
    • TWRP Recovery method
  • Xiaomi Black Shark 4 SAR Value
  • Wrap Up

Xiaomi Black Shark 4 Modes

When you stick with the regular usage in your Android mobiles, mobile manufacturers’ optimized UI and options are enough. But When you want to reach the limit of your Android mobile, You need to deal with the developer options and optimizations. To Perform Developer related options like Firmware flash or Rooting, We have to put our mobiles in a particular mode. Based on the requirement, the models may vary. Booting into different ways needs different key combination presses or commands. The key combinations and ADB commands help us to boot into specific modes and perform other actions. So, here we are listing how you can boot into different ways on your mobile.

Boot into Fastboot/Bootloader Modexiaomi black shark 4 fastboot mode

Fastboot mode is used to flash the files into your mobile. You can flash any firmware or root files on your mobile. Mainly in the Fastboot way, we use Xiaomi Flashtool or ADB Commands for flashing the file. You can also use this mode to unlock your Bootloader.

Buy Samsung Galaxy S22 Ultra from $6.46/mo for 24 Months with Eligible Trade-In.
Samsung Galaxy S23 available for $0.00/mo with T-Mobile Credit and Trade-in Deal
  • Switch off your Xiaomi Black Shark 4 Mobile. Enter into Fastboot mode->Volume Down+Power Button and Connect Your Mobile To PC via USB Cable; after Xiaomi Logo Appear, Release all keys.

Unlock Xiaomi Black Shark 4 Bootloader using ADB and FastbootOnePlus 6T OEM Unlock and USB Debugging

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this, go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode, OEM Unlock. There is no complicated process in Xiaomi Black Shark 4

  • Also, download the ADB drivers. Install it on your PC.

  • Go to the official Mi Bootloader Unlock website and log in with your Mi Account.
  • Enter your Mobile details like phone number, IMEI, reason. You will get the confirmation code on your mobile. Enter the confirmation code on the Mi website and request for unlocking. You will receive a confirmation mail after the approval in 2-10 Days.
Also Read-  Download Xiaomi 11T Pro Android 11 MIUI 12.5 ROM

Mi Flashtool Installation



  • Install the Mi Flash Tool in the received mail. Log in with your Same Mi Account, which is used to get the software.

Mi Flash Tool Unlock

  • Switch off your device. Connect your mobile to the PC. Then, enter into Fastboot mode. To do this; Press and hold down the Volume Down + Power buttons simultaneously for some time, and it will boot your mobile into Fastboot mode.
  • After you successfully boot into Fastboot mode, Select Unlock. It will take 2-3 minutes to finish the process. After the successful process completion, Reboot your mobile.Xiaomi Redmi Note 7 Fastboot

  • Check again to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode, OEM Unlock. Sometimes they disabled themselves after the boot.

Flash Xiaomi Black Shark 4 Firmware using Xiaomi Flash Tool

  • Download the Xiaomi Flash tool.
  • Extract the files from the Zip.

Xiaomi Flash tool file run

  • After the extraction, Right-click on the “XiaoMiFlash” software on your PC and choose “Run as Administrator.”
  • We use Administrator Because the USB driver should have General access To get access everywhere without any folder restrictions. If you have already installed the ADB drivers, you may know these kinds of issues.

Driver Install Xiaomi Flash tool

  • Navigate to “Driver” and Install all the necessary Driver files.
  • Download the necessary firmware for your mobile and copy it to your PC.
  • Switch off your device. Then, enter into Fastboot mode. To do this, press and hold down the Volume Down + Power buttons simultaneously for some time.
  • Press the Volume Up button to continue when you see the warning message.

  • Now, connect the Xiaomi Black Shark 4 mobile to the USB cable computer.

  • Select “Refresh” in the app; you will get the device ID in the list.
  • When you didn’t get the device, Repeat the above steps.

Firmware Flash Select Flash tool

  • After getting your mobile ID, Choose firmware using the “select” tab.
  • Choose “save user data” in the bottom dot options.
  • Now select “Flash.” The software will flash the firmware to your mobile.

Success Flash Xiaomi Flash Tool

  • You will get the “Success” message once the flash firmware is done.
  • After the process is complete, you must press the Volume Up+ Power button to exit Fastboot mode.

Flash Files using ADB and Fastboot

  • Download the ADB drivers. Install it on your PC.
  • Switch off your device. Then, enter into Fastboot mode. To do this, press and hold down the Volume Down + Power buttons simultaneously for some time.
  • Press the Volume Up button to continue when you see the warning message.

  • Now, connect the Xiaomi Black Shark 4 mobile to the computer via USB cable.

  • Launch the fastboot on your computer. Open a Command prompt on your PC and type the below command.

  • fastboot devices
  • It should display the connected devices. If you didn’t get the device, restart the command prompt and Disconnect and Connect your Xiaomi Black Shark 4. If you are detected, type the below commands one by one and hit Enter.
  • You should execute the commands after every successful response. Here we take recovery files as an example.
  • fastboot flash recovery recovery.img

fastboot flash recovery command

  • After the process is complete, Press the Volume Down+ Power button to exit Fastboot mode.

Enter into Recovery Mode

Recovery mode is used to deal with current OS actions. You can wipe user data or fix fundamental issues with the recovery. Most of the time, you have Stock recovery on your mobile. When you have root access, then you may have a custom recovery like TWRP. This method will not affect your User data unless you wipe it. You have to press Volume Up+ Power Button on your mobile for 7-10 Seconds to boot into recovery mode. After that, it will boot you into the recovery mode or directly boot into System OS. The response may vary depending on the mobile manufacturers. If you received a Recovery mode menu, use the Volume keys to navigate and the Power button to confirm the selection.

Also Read-  Fix Xiaomi 12S Stuck on Boot Start screen logo

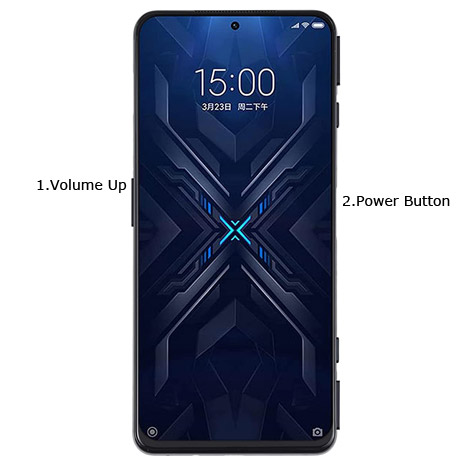

Stock Recovery        xiaomi black shark 4 recovery mode



  • Switch off your device. Then, enter into Recovery mode. To do this, press and hold down the Volume Up+ Power buttons simultaneously for some time.
  • Press the Volume Down button to continue when you see the warning message.

Xiaomi ROM Update using Stock Recovery

  • If you want to install any file, Select “Install update.zip to the system.” select the storage where you downloaded your firmware file.
  • Wait for the process to complete. Don’t interrupt your mobile during the process.

TWRP Recovery

When you use Rooted mobiles, you either use Stock Recovery or TWRP custom recovery. If you have Stock Recovery, you can use the above process. When you install TWRP on your mobile, follow the steps below.

TWRP Recovery Normal Boot to OS

  • The Volume Up+ Volume Down+ Power Button Keycombinations will boot your mobile into TWRP Recovery mode.
  • On the Home screen, you can find the option “Boot.” Select the item; you will receive further options as System, Power Off, Recovery, and Bootloader. Select “System.” Your mobile will boot into Normal OS.

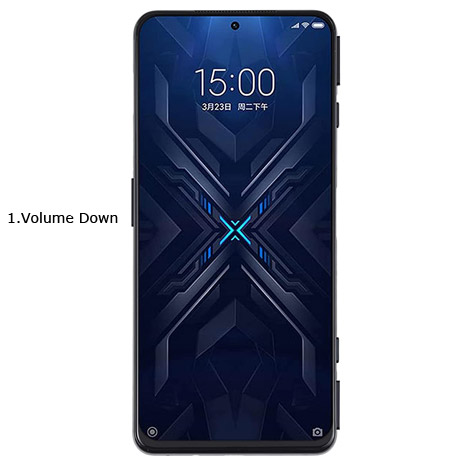

Boot Xiaomi Black Shark 4 into Safe Mode

Try to boot into Safe Mode by pressing Volume Down for 10-15 seconds. Your mobile will boot into Safe mode. Try to Un-Install the recently installed app before the OTA process. Also, check the compatibility in Play Store. When you install apps other than Play Store, Un-Install them and try to boot again. Sometimes third-party apps may trigger the new version, and it may cause the stuck-in boot logo. In Safe Mode, most of the third-party apps will be disabled by default.xiaomi black shark 4 safe mode

Wipe Cache Data Partition

When you perform, restart using recovery, and you can’t boot into OS again. In this situation, We have another choice of the fix by Wipe cache partition. It is also will not affect user data, and it will wipe only cache data. You have to press Volume Up+ Power Button on your mobile for 7-10 Seconds. After that, it will boot you into the recovery mode or directly boot into System OS. The response may vary depending on the mobile manufacturers. If you received a Recovery mode menu, use the Volume keys to navigate and the Power button to confirm the selection. Remember, you should wipe only the cache partition, Not the Wipe Data/Factory Reset.

Stock Recovery Method

  • Switch off your device. Then, enter into Recovery mode. To do this, press and hold down the Volume Up+ Power buttons simultaneously for some time.
  • Press the Volume Down button to continue when you see the warning message.

Xiaomi ROM Update using Stock Recovery

  • If you want to install any file, Select “Install update.zip to the system.” select the storage where you downloaded your firmware file.
  • Wait for the process to complete. Don’t interrupt your mobile during the process.

TWRP Recovery method

When you use Rooted mobiles, you either use Stock Recovery or TWRP custom recovery. If you have Stock Recovery, you can use the above process. When you install TWRP on your mobile, follow the steps below.

Wipe Data in TWRP

  • The Keycombinations will boot your mobile into TWRP Recovery mode.
  • On the Home screen, you can find the option “Wipe.” Select the wipe option; you will receive further details. Select “Cache.” Don’t select the System, and it will wipe your OS. After selecting other choices, swipe to erase the data. When the process completes, return to home and boot into OS.
Also Read-  Download Xiaomi Mi 10T Lite 5G MIUI 12 Android 10 ROM

Reset Your Xiaomi Black Shark 4 Mobile

Factory Reset Android Mobile

If you follow all the methods and still face issues, you can Rest your mobile. Take complete backup on your mobile. You can do a soft reset or hard reset. To Rest your mobile, Go to settings> System>Reset Options> Reset app preferences/ Factory Reset.

  • Soft Reset/App Preference Reset– This option will remove all the custom settings we made and return to the default settings. It will not delete user data.
  • Hard Reset/Factory Reset– It will remove all user data. Your mobile OS will become new, like when you purchased it, and you have to set up everything from the beginning.

You can also use your mobile recovery to reset when you can’t boot into your Mobile OS.

Stock Recovery method

Xiaomi ROM Update using Stock Recovery



  • Switch off your device. To do this- Press and hold down the Volume Up + Power buttons simultaneously for some time. Then, enter into the Stock Recovery mode, and it will boot your mobile into Recovery mode.
  • If you don’t use Rooted mobiles, you have Stock Recovery, which your official mobile manufacturer provides most of the time. If you have stock recovery, you have the direct option as “Wipe Data/Factory Reset.” Navigate to this option and confirm it using the power key button. Remember, It will delete your entire mobile data. So, backup first before the process.

TWRP Recovery method

When you use Rooted mobiles, you either use Stock Recovery or TWRP custom recovery. If you have Stock Recovery, you can use the above process. When you install TWRP on your mobile, follow the steps below.

Wipe Data in TWRP

  • The Keycombinations will boot your mobile into TWRP Recovery mode.
  • On the Home screen, you can find the option “Wipe.” Select the wipe option; you will receive further details. Select “Dalvik, Data, and Internal Storage.” Don’t select the System, and it will wipe your OS. After selecting other choices, swipe to erase the data. When the process completes, return to home and boot into OS.

Xiaomi Black Shark 4 SAR Value

In the world of mobile, SAR Value is used to measure a cell phone’s radiation broadcasting capabilities. Thus, one can ensure that their mobile device does not exceed the maximum limits set for the mobile user’s safety, making SAR important. For example, Xiaomi Black Shark 4  SAR Value Head: 1.290 W/Kg, Body: 1.601 W/Kg ;

Wrap Up

The boot mode key combinations may look simple Because it varies depending on the mobile models. Therefore, knowing your key combinations is necessary. Even if you are a regular user, You have to go through some fundamental troubleshooting issues in your mobile, like stuck on the boot logo or freeze subjects. Learning about your Xiaomi Black Shark 4 modes and boot key combinations is necessary for troubleshooting. We hope the different boot modes will help you deal with your needs when you face any issues during the process; comment below.
