Samsung Galaxy Tab S6 4G/5G SM-T866N/SM-T865/N Modes, Reset and SAR Value

by Selva Kumar A Leave a Comment

Mobile companies are developing their specs to the extent that the current tablet is mainly used as a small PC. Samsung Galaxy Tab S6 4G/5G is an Upper mid-range mobile with 6GB RAM and a Qualcomm SM8150 Snapdragon 855+ processor. But when you face any issues or want to root or flash firmware, you have to boot into some Troubleshoot modes. We listed all Samsung Galaxy Tab S6 4G/5G modes and respective keys here. We also recorded the SAR value for your reference.samsung galaxy tab s6 5g unlock screen

Table of Contents

  • Samsung Galaxy Tab S6 4G/5G Modes (SM-T866N)
  • Boot into Download Mode
  • Enter into Recovery Mode
    • Stock Recovery
    • TWRP Recovery
  • Boot Samsung Galaxy Tab S6 4G/5G into Safe Mode
  • Wipe Cache Data Partition
    • Stock Recovery method
    • TWRP Recovery method
  • Reset Your Samsung Galaxy Tab S6 4G/5G Mobile
    • Stock Recovery method
    • TWRP Recovery method
  • Samsung Galaxy Tab S6 4G/5G SAR Value
  • Wrap Up

Samsung Galaxy Tab S6 4G/5G Modes (SM-T866N)

When you stick with the regular usage in your Android mobiles, mobile manufacturers’ optimized UI and options are enough. But When you want to reach the limit of your Android mobile, You need to deal with the developer options and optimizations. To Perform Developer related options like Firmware flash or Rooting, We have to put our mobiles in a particular mode. Based on the requirement, the models may vary. Booting into different ways needs different key combination presses or commands. The key combinations and ADB commands help us boot into specific modes and perform other actions. So, here we are listing how you can boot into different ways on your mobile.

Boot into Download Mode

You can flash any firmware or root files on your mobile. Download mode is used to flash the files into your mobile. Mostly in Download mode, we use ODIN for flashing the file.

Buy Samsung Galaxy S22 Ultra from $6.46/mo for 24 Months with Eligible Trade-In.
Samsung Galaxy S23 available for $0.00/mo with T-Mobile Credit and Trade-in Deal

samsung galaxy tab s6 5g download mode

  • Switch off your Samsung Galaxy Tab S6 4G/5G Mobile. Enter into Download mode->Volume Down and Connect Your Mobile To PC via USB Cable; after Samsung Logo Appear, Release all keys.

Samsung Galaxy Tab S3 Download Mode Warning Screen

  • After entering into Download Mode, it will say Warning; press the Volume Up button to continue.
  • Launch Odin Application.

ODIN Added Message

  • It Will Show the message added.
  • If you did not get this message, Repeat the above steps.

ODIN software screenshot

  • After Getting Added Message Select, AP/PDA Button, then Browse for the file selects it. Tick/Un-Tick the Auto-Reboot.

Odin Auto Reboot

  • Press Start wait for the tasks to complete. It will automatically reboot after the process ends.
Also Read-  Fix Samsung Galaxy Z Fold 4 Bluetooth Pairing and Not Detecting issues SM-F9360/B/N/U/W

Enter into Recovery Mode

Recovery mode is used to deal with current OS actions. You can wipe user data or fix fundamental issues with the recovery. Most of the time, you have Stock recovery on your mobile. You may have a custom recovery with root access, like TWRP. This method will not affect your User data unless you wipe it. You have to press Volume Up+ Volume Down+ Power Button on your mobile for 7-10 Seconds and connect a USB cable attached to the PC to boot into recovery mode. After that, it will boot you into the recovery mode or directly boot into System OS. The response may vary depending on the mobile manufacturers. If you received a Recovery mode menu, use the Volume keys to navigate and the Power button to confirm the selection.

samsung galaxy tab s6 5g recovery mode

Stock RecoverySamsung Galaxy Tab S5e Stock Recovery

If you didn’t use Rooted mobiles, you have Stock Recovery, provided by your official mobile manufacturer. You have direct options like Reboot, Apply Update, and Wipe Options if you have stock recovery. Navigate to this option and confirm it using the power key button.

TWRP Recovery

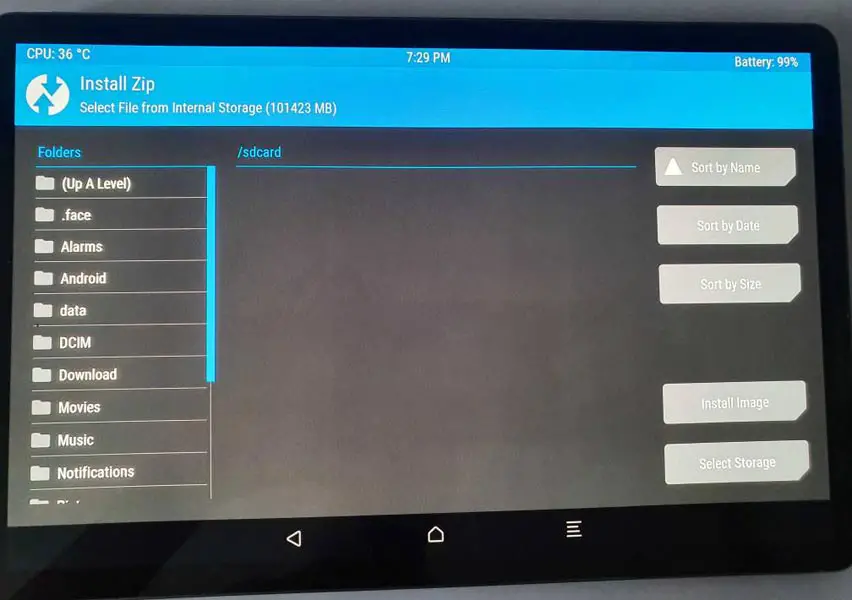

When using Rooted mobiles, you either use Stock Recovery or TWRP custom recovery. If you have Stock Recovery, you can use the above process. When you install TWRP on your mobile, follow the steps below.Samsung Tab S6 TWRP

  • The Volume Up+ Volume Down+ Power Button Keycombinations will boot your mobile into TWRP Recovery mode.
  • On the Home screen, you can find the option “Boot.” Select the item; you will receive further options such as System, Power Off, Recovery, and Bootloader. Select “System.” Your mobile will boot into Normal OS.

Boot Samsung Galaxy Tab S6 4G/5G into Safe Mode

Sometimes third-party apps may trigger the new version, and it may cause the stuck-in boot logo. Try to boot into Safe Mode by pressing Volume Down for 10-15 seconds. Your mobile will boot into Safe mode. Try to Un-Install the recently installed app before the OTA process. Also, check the compatibility in Play Store. When installing apps other than Play Store, Uninstall them and try to boot again. In Safe Mode, most third-party apps will be disabled by default.

samsung galaxy tab s6 5g safe mode

Wipe Cache Data Partition

When you perform, restart using recovery, and you can’t boot into OS again. We have another choice of fix by Wipe cache partition in this situation. It is also will not affect user data. It will wipe only cache data. You have to press Volume Up on your mobile for 7-10 Seconds and connect a USB cable attached to the PC to boot into recovery mode. After that, it will boot you into the recovery mode or directly boot into System OS. The response may vary depending on the mobile manufacturers. If you received a Recovery mode menu, use the Volume keys to navigate and the Power button to confirm the selection. Remember to wipe only the cache partition, Not the Wipe Data/Factory Reset.

Also Read-  Samsung Galaxy Android 10 One UI 2.0 getting Mobiles list

Stock Recovery method

Samsung Galaxy Wipe Cache Partition

  • If you didn’t use Rooted mobiles, you have Stock Recovery, provided by your official mobile manufacturer.
  • If you have stock recovery, you have the direct option as “Wipe Cache partition.” Navigate to this option and confirm it using the power key button.

Confirm Wipe Cache Samsung Galaxy

  • It will ask you to confirm the process. Select “Yes.”
  • Most of the time, it will boot into OS after the wipe. When it returns to recovery, Select the Reboot system now.

TWRP Recovery method

When using Rooted mobiles, you either use Stock Recovery or TWRP custom recovery. If you have Stock Recovery, you can use the above process. When you install TWRP on your mobile, follow the steps below.

Wipe Data in TWRP

  • The Keycombinations will boot your mobile into TWRP Recovery mode.
  • On the Home screen, you can find the option “Wipe.” Select the wipe option; you will receive further details. Select “Cache.” Don’t select the System. It will wipe your OS. After selecting other choices, swipe to erase the data. When the process completes, return to home and boot into OS.

Reset Your Samsung Galaxy Tab S6 4G/5G Mobile

Factory Reset Android Mobile

If you follow all the methods and still face issues, you can Rest your mobile. Take complete backup on your mobile. You can do a soft reset or hard reset. To Rest your mobile, Go to settings> System>Reset Options> Reset app preferences/ Factory Reset.

  • Soft Reset/App Preference Reset– This option will remove all the custom settings we made and return to the default settings. It will not delete user data.
  • Hard Reset/Factory Reset– It will remove all user data. Your mobile OS will become new, like when you purchased it. You have to set up everything from the beginning.

You can also use your mobile recovery to reset when you can’t boot into your Mobile OS.

Stock Recovery method

Samsung Galaxy A50s Stock Recovery

  • Switch off your device. Then, enter into the Stock Recovery mode. To do this, press and hold down the Volume Up + Power buttons simultaneously for some time. It will boot your mobile into Recovery mode.
  • If you don’t use Rooted mobiles, you have Stock Recovery, which your official mobile manufacturer provides most of the time. If you have stock recovery, you have the direct option as “Wipe Data/Factory Reset.” Navigate to this option and confirm it using the power key button. Remember, It will delete your entire mobile data. So, backup first before the process.
Also Read-  Fix Battery Drain Issues in Samsung Galaxy A02 SM-A022F/G/M After Installing Update

TWRP Recovery method

When using Rooted mobiles, you either use Stock Recovery or TWRP custom recovery. If you have Stock Recovery, you can use the above process. When you install TWRP on your mobile, follow the steps below.

Wipe Data in TWRP

  • The Keycombinations will boot your mobile into TWRP Recovery mode.
  • On the Home screen, you can find the option “Wipe.” Select the wipe option; you will receive further details. Select “Dalvik, Data, and Internal Storage.” Don’t select the System. It will wipe your OS. After selecting other choices, swipe to erase the data. When the process completes, return to home and boot into OS.

Samsung Galaxy Tab S6 4G/5G SAR Value

In the world of mobile, SAR Value is used to measure a cell phone’s radiation broadcasting capabilities. This can ensure that their mobile device does not exceed the maximum limits set for the mobile user’s safety, making SAR important. Samsung Galaxy Tab S6 5G SAR Value is Body SAR: 1.180 W/Kg, Samsung Galaxy Tab S6 4G SAR Value is Body SAR:1.221 W/Kg.

Wrap Up

Knowing your key combinations is necessary. Even if you are a regular user, You have to go through some fundamental troubleshooting issues in your mobile, like stuck on the boot logo or freeze issues. It is necessary to learn about your Samsung Galaxy Tab S6 4G/5G modes and boot key combinations to deal with that troubleshooting. The boot mode key combinations may look simple Because it varies depending on the mobile models. We hope the different boot modes will help you deal with your needs when you face any issues during the process; comment below.

Source, (2), (3)
