Root Motorola Edge 30 Fusion Android 12 using Magisk XT-2243

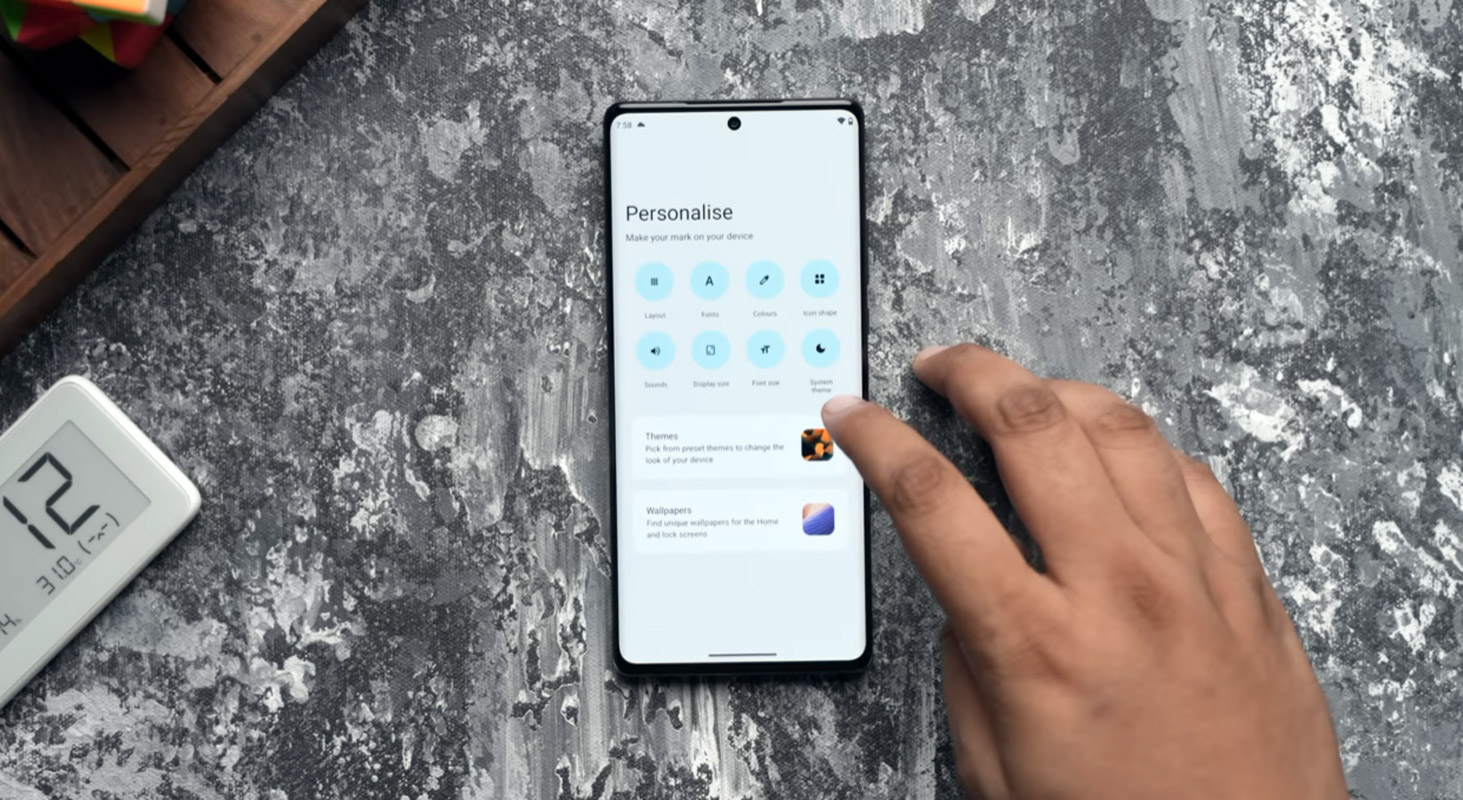

After the reentry of Motorola into the mobile Sector for a long time, they only stick with entry-level and midrange mobiles. After gaining a vast user base, they also began to release flagship mobiles. Compared with other mobile companies, since Motorola uses stock Android, we can expect better performance on both UI and hardware performance. Motorola Edge 30 fusion is a flagship mobile with 8/12 GB of RAM and a Snapdragon 888+ 5G processor. Since it comes with high-end specs, we don’t have to worry about daily apps or updates, tasks, and other things. So when you are a regular user, you can stick with the official version, which comes with Android 12 as the default OS. Still, when you are a Regular root app user or developer, you can root your Motorola Edge 30 fusion Android 12 version using the below method.motorola edge 30 fusion personalise

After rooting, you will lose official updates and update your mobile manually. So, Before proceeding with the process, you should know why you need to do it. If you are a regular user, you can try some alternatives for your purpose that don’t require rooting your mobile. When you are a regular root apps user and developer, you can follow the below guide to achieve root on your mobile.

Should you need Root Motorola Edge 30 Fusion Android 12 (tundra)?

We thank XDA Developer- topjohnwu and gost_Nava (Who successfully tested this method). Without their hard work, We can’t make this method. Coming to the root, you should have a proper reason and know what you are doing. Yes, with a minimum of 8/12 GB RAM and a Qualcomm SM8350 Snapdragon 888+ 5G processor, You can use this mobile for basic tasks without root for 2-3 Years if you use it correctly. Software is better compared with other manufacturers, Custom skin OS. Don’t root because everybody says it can become the fastest car in the world when you root your mobile. No. Rooting is to extract some performance from the device. But you already have Powerful specs and software. So, If you are addicted to some root apps, you can root. But if you want to test it, I won’t recommend it.

Also Read-  Root Motorola Moto G 5G Plus Android 10 using TWRP and Install Magisk

How to Root Motorola Edge 30 Fusion Android 12 version (XT-2243, International Variants)?

Motorola Edge 30 Fusion International Variants has a flexible bootloader other than some carrier-locked devices, so we can easily root different smartphone variants. The device can also install TWRP recovery or any custom recovery file/app.

For most of the methods, We follow Magisk to root our device. TWRP recovery is a custom recovery file we must install on your devices because you can embed them successfully. This article explained the easiest method to follow and install Magisk on Motorola Edge 30 Fusion. However, the tool required for rooting this device is the Magisk App.

You can install TWRP Recovery once your Motorola Edge 30 Fusion is available to gain Custom Recovery access. Before sharing the tutorial, you may want to know that, without the TWRP recovery present on your device, you can not install any custom ROM or firmware. Does it seem complicated? Relax; we will explain everything briefly in bullets.

Things to check out for;

  • Make sure your device’s battery is above 50%.

  • You should back up your current files and data and the entire data loss process (save them on external storage).

Pre-Requirement StepsOnePlus 6T OEM Unlock and USB Debugging

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this, go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode, OEM Unlock. There is no complicated process in Motorola Edge 30 Fusion.

  • Also, download the ADB drivers. Install it on your PC.

Unlock Motorola Edge 30 Fusion bootloader using ADB and Fastboot

moto s30 pro fastboot mode

  • Switch off your device. Then, enter Fastboot mode. To do this- Press and hold down the Volume Down + Power buttons simultaneously for some time.

Moto G7 Plus Fastboot Mode Warning Screen

  • Press the Volume Up button to continue when you see the warning message.

  • Connect the Motorola Edge 30 Fusion mobile to the computer via a USB cable.

  • Launch the fastboot on your computer. Open a Command prompt on your PC and type the below command.

  • fastboot devices
  • It should display the connected devices. If you didn’t get the device, restart the command prompt and Disconnect and Connect your Motorola Edge 30 Fusion; if you are detected, type the below commands.
  • fastboot oem get_unlock_data

Moto Get Unlock Data

  • Hit enter, and you will get some unlock data. Copy those codes, remove < bootloader> Prefix from those lines, and copy them into one line.
  • If the above command doesn’t work, type the below command and enter.
  • fastboot flashing unlock
  • Go to Official Moto Unlock Page. Log in with your moto account, and in the Box, paste those codes and Check the unlock Bootloader Status. If you get it, you can open it and request unlock Key from Moto.
  • After the process, you will get 20 Digits to unlock the key in your email. Now type the following command to unlock the bootloader on your device.

  • fastboot oem unlock UNIQUE CODE
Also Read-  Fix Motorola Moto E32s Bluetooth Pairing and Not Detecting issues

Moto unlock bootloader command

  • You should type this code two times and Hit enter to unlock your device successfully. After the successful unlock, your device will automatically reboot to the standard OS.

  • Check again to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode, OEM Unlock. Sometimes they disabled themselves after the boot.

Preparing Patched Boot Image file

  • You can use Phone Info to know your firmware version.

Motorola Edge 30 Fusion Android 12 Extracted Firmware Files

  • Download 7Zip-ZS Install on your PC. Extract the files in the downloaded firmware using 7Zip-ZS. You will get a lot of data. Copy boot.img file to your mobile.
  • Download Magisk Manager (Download the Latest version) or Magisk canary and Install it on your mobile. Open Installed Magisk and Select Install in Magisk; ask For a zip file and Patch Recovery Image File. Select the boot image file.

Magisk Boot Image File

  • Navigate to your copied boot image File and patch the file in .img format.

Magisk Firmware Patch Process

  • Wait for the process to complete; you will get a magisk patched .img file. The .img file will be in the same folder where you have the boot. img.
  • Copy the magisk_patched.img file to your PC. Rename the file to boot.img again.

Flash Patched Boot Image in Motorola Edge 30 Fusion using ADB and Fastboot

moto s30 pro fastboot mode

  • Switch off your device. Then, enter into fastboot mode. To do this- Press and hold down the Volume Down + Power buttons simultaneously for some time.
  • Press the Volume Up button to continue when you see the warning message.

  • Connect the Motorola Edge 30 Fusion mobile to the computer via a USB cable.

  • Launch the fastboot on your computer. Open a Command prompt on your PC and type the below command.

  • fastboot devices
  • It should display the connected devices. If you didn’t get the device, restart the command prompt and Disconnect and Connect your Motorola Edge 30 Fusion. If you are detected, type the below command and hit Enter.
  • fastboot flash boot_a patched_boot.img
    fastboot flash boot_b patched_boot.img

fastboot flash boot boot.img command

  • After completing the process, Press the Volume Down+ Power button to exit Fastboot mode. Immediately Press Volume Up + Power buttons when the screen goes off to boot into Recovery mode.
  • After entering Stock recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase the saved data on your device. Don’t Boot into OS; read below Boot stages before booting.
Also Read-  Root Motorola Edge 30 Neo Android 12 using Magisk XT-2245

Boot into Rooted OS

  • Press and Hold Volume Up + Power buttons, and release all the keys once the Bootloader warning appears. You have to set up your device like a new device. You can select the root status using the Root Checker.
  • Stock Recovery Boot – Press and Hold Volume Up + Power buttons and release keys while you hold the Volume Up key.
  • You will see Magisk Manager in your App drawer. You can install Magisk Manager on your mobile if you can’t find the app.

What More?

You don’t need to root for your Motorola Edge 30 Fusion Android 12 version. If you thought you could Improve Performance By Root, Qualcomm SM8350 Snapdragon 888+ 5G processor, and 8/12 GB RAM. If you don’t know how much RAM you need, You will never use this much RAM. It would help if you did not Boot into Normal OS Booting by pressing the power button after firmware flash, and it will boot you to a Non-Rooted environment. So, you should pay attention to the first recovery boot step.

You can optimize your battery without rooting if you root your device because of the battery drain issues. Beyond this, if your purpose is to Disable Bloatware apps, you can do that without using them. This method uses the Magisk patch way, and thus you can’t install Custom ROMs. If you have any suggestions or doubts, comment below.

Source, (2)
