Root Samsung Galaxy A2 Core SM-A260F/G Oreo 8.1 using Magisk (Android Go)

Samsung released Two Android Go based mobiles- Samsung Galaxy J2 Core and A2 Core. Compare with the J model A2 Core comes with a slightly upgraded processor. Unlike other manufacturers, Samsung Customized the OS and provided with Oreo 8.1 based Samsung Custom Skin OS. There are some benefits and giveaway here. You can access Samsung heavy apps here. But, your mobile may not perform well like other devices due to heavy customization. When you bought this mobile, you know your purpose well. Even If We optimized manually, We are limited by the hardware. So, If you are a Regular user, Don’t root your device. You will not get official updates from Samsung. When you know your purpose well, like removing Bloatware apps, you can root your mobile. If you are a Developer or regular Root apps user, follow the below guide to achieve root. This method is based on Magisk. You can’t Install Custom ROMs that require Custom Recovery.
Samsung Galaxy A2 Core with Painting Background

Why should you Root Samsung Galaxy A2 Core?

You should have a strong reason for rooting. Samsung planning for 9.0 Pie and will further optimize your mobile. You have Enough 1 GB RAM to use daily apps without Lag for years. Yes, I know, you may think, 1 GB RAM is not enough in this modern Android world. But, Trust me, Android Go is far better than other Custom Skin OS. You can use this device without lag for years until Samsung mess with some Bloatware. But beyond, this not go reasons, you are addicted to some root apps, or you are a frequent user of some Custom OS, you can proceed further. But if you want to root because everybody is doing, I advise you, don’t root If you didn’t have any experience. For regular users, It can become a Nightmare.

How to Root Samsung Galaxy A2 Core Oreo 8.1 (SM-A260F, SM-A260G)

First of all, thanks to topjohnwu – this genius is one who discovered and maintaining Magisk. Samsung Galaxy A2 Core International variants come with a flexible bootloader. This means that the smartphone can be easily rooted. Also, the device can accept to install TWRP recovery or any other custom recovery file/app alike. Don’t try with Snapdragon US Variants like Verizon devices. They come with a locked Bootloader.

But In the below method, we are going to Root this device by using Magisk, not TWRP. You can install TWRP using the official App when it is released. TWRP recovery is a custom recovery file that must be installed on Samsung Galaxy devices because you can root them successfully. In this article, we explained the easiest method to follow and install TWRP recovery on Samsung Galaxy A2 Core. However, the tool required for rooting this device is the Magisk App.

With the help of TWRP Recovery, you can quickly flash the latest version of Magisk into your A2 Core to gain root access. Before sharing the tutorial, you may want to know that, with the TWRP recovery present on your device, you can easily install any custom ROM or firmware. Does it seem complicated? Relax, everything will be explained succinctly in bullets.

Things to check out for;

  • Check your device model number.

  • Install Latest Magisk Manager.
  • Make sure your device battery is charged above 50%

  • Backup your current files and data- Full Data Loss Process (save them on external storage).

  • You cannot use Samsung Pay, Secured folder, and some official apps from Samsung.
  • You can’t update your firmware, to get new firmware you have to follow the below steps with the latest firmware.
  • Read the full tutorial before the process.

Pre-Requirement Steps

Preparing Patched Boot Image file

  • Download and install the Samsung USB driver to your computer system.

  • Also, download the ODIN software. Select the above Oreo version in the ODIN list. Install ODIN on your PC.

  • You can use Phone Info to know your firmware version.
  • Download 7Zip-ZS and LZ4 Install both on your PC. Extract the files in downloaded firmware using 7Zip-ZS. You will get four files. Click on the AP File and Extract again. You will get some files along with the boot.img.lz4. Copy the boot.img.lz4 to LZ4 Installed folder. Convert lz4 file to .img file. After the convert, Copy boot — img file to your mobile.
  • Download Magisk Manager (Download Latest version) or Magisk canary and Install it on your mobile. Open Installed Magisk and Select Install in Magisk; it will ask For zip file and Patch Boot Image File. Select the Boot Image file.

Magisk Boot Image File

  • Navigate to your copied Boot Image File and patch the file.

Magisk Firmware Patch Process

  • Wait for the process to complete, In the end, you will get magisk patched .tar file. The .tar file will be in the same folder where you have the Stock firmware file.
  • Copy magisk_patched.tar file to your PC.

Unlock Bootloader

Enabling developer option

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this; go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode and OEM Unlock. There is no complicated process in the Samsung Galaxy A2 Core.

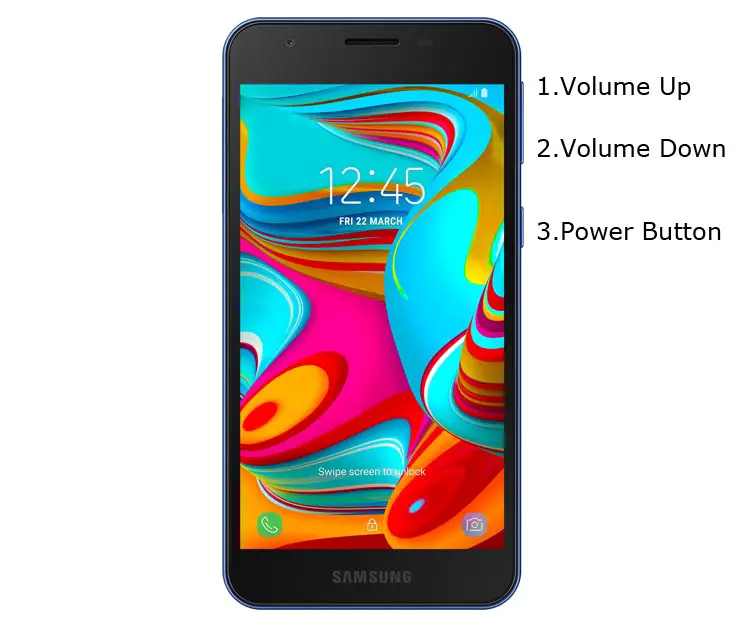

Bootloader Unlock Key Combination Samsung Galaxy A2 Core

  • Switch off your device. Enter into Recovery Mode-> Volume Up+ Volume Down+ Power Button. Your mobile will boot into recovery mode. Go to Wipe Data/ Factory Reset. Select “Yes.” After the process complete, Select Reboot to Bootloader.

Samsung Galaxy M40 Download Mode Warning Screen



  • The above process will wipe your User Data. It will show Download Warning screen, connect your mobile with PC using USB Cable.

Flash Patched Boot Image using ODIN

Samsung Galaxy A2 Core Download Mode

  • You already in Download Mode. If you accidentally entered into Setup, Switch off your Mobile. Enter into Download mode->Volume Down+ Volume Up Buttons and Connect Your Mobile To PC via USB Cable, After Samsung Logo Appear, Release all keys.
  • After entering into Download Mode, it will say Warning, Press Volume Up button to continue.
  • Launch Odin Application.

ODIN Added Message

  • It Will Show the message added.
  • If you did not get this message Repeat the above steps.

ODIN software screenshot

  • After Getting Added Message Select, AP/PDA Button, then Browse for the magisk patched file selects it. Un-Tick the Auto-Reboot. You should only flash the patched image file.

Odin Auto Reboot

  • Press Start wait for the tasks to complete. After the process complete, Press Volume Down+ Power button to exit Download mode. When the screen goes off, Immediately Press Volume Up + Power buttons to boot into Recovery mode.
  • After entering into Stock recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase your saved data in your device. Don’t Boot into OS, Read below Boot stages before booting.

Samsung Galaxy M40 Stock recovery

Boot into Rooted OS

  • Press and Hold Volume Up + Power buttons, release all the keys once the Bootloader warning appears. You have to set up your device like a new device. You can select the root status using the Root Checker.

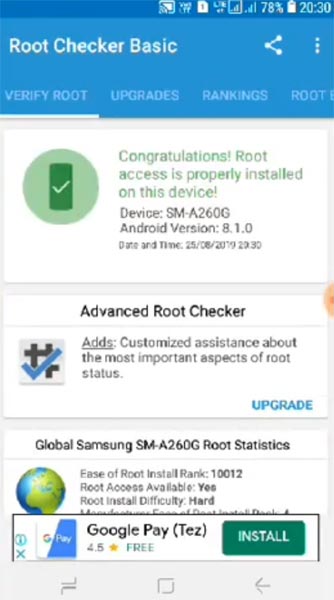

Samsung Galaxy A2 Core Root Checker Result

  • Stock Recovery Boot – Press and Hold Volume Up + Power buttons, release keys while you hold the Volume Up key.
  • You will see Magisk Manager in your App drawer. If you can’t find the app, you can install Magisk Manager on your mobile.

What More?

In my opinion, you don’t need rooting for your Samsung Galaxy A2 Core. If you thought you could Improve Performance By root; With the Exynos 7870 Octa-Core processor, Android Go, and 1 GB RAM, your device can perform well. If you don’t know how much RAM you need, You will never use this much RAM. You should not Boot into Normal OS Booting, by pressing the power button, after firmware flash. It will boot you to a Non-Rooted environment. If you accidentally urged and boot frequently, Don’t panic, after setup everything, switch off your device and boot into Rooted OS using above mentioned keys. If you root your device, because of the battery drain issues, you can optimize your battery without root.

Source, (2)

Also Read-  Root Xiaomi Poco X3/NFC Android 10 using TWRP and Magisk
Share This Post:

16 thoughts on “Root Samsung Galaxy A2 Core SM-A260F/G Oreo 8.1 using Magisk (Android Go)

  1. Hola ya realice los pasos como dices , y tambien hice “Debe parchear el firmware que es el mismo con el firmware instalado actualmente” lo que dijste pero al momento de que ODIN arranca llega a una etapa en que solo queda leyendo el parche y no pasa de alli

    • We will update the TWRP version once we get a stable method. But Core series mobiles have minimal hardware so Custom ROMs may not work as expected.

  2. To be honest, I don’t want to root my A2core. The main reason for wanting to root is to increase internal memory. I have been deleting lots of useful apps that I should be used to create space for the crucial ones. So, my question is, how can I increase the internal memory of my A2core and also possibly improve the virtual ram as well?

  3. I’ve followed the above steps up to this point;
    I don’t get a .tar file as output. My output file after patching in magisk is “magisk_patched.img.”
    I don’t know what I’m doing wrong here. Please help.

  4. Hey,
    I doubt the renaming part. You told me that you have to copy the boot.img.lz4 to the LZ4 installed file, and from there, you told me to rename the lz4 file, so which one is it? is it LZ4 or boot.img.lz4 . And secondly, how do you copy the renamed .img file. To your mobile? to install in magisk?.

    • After yo9u converts the .lz4 file to the .img file, There is no need for rename. It will automatically convert the file to boot. img.
