Root Samsung Galaxy A30 SM-A305F/FN/G/GN Android 10 using Magisk

by Selva Kumar A Leave a Comment

Even if we have potent specs Android mobiles that can handle heavy applications, the craze about rooting is not settled yet due to a lot of developing reasons. Customizing our mobile with our favorite apps gives us a good feeling. But with custom skin, OS, or limited access in the root of your mobile will restrict you from doing the process. That is the situation where the rooting process comes. The methods to root your mobile is becoming hard compare with previous Android versions. But we can still achieve root in Android. Below we are going guide you on how you can root your Samsung Galaxy A30 on Android 10 version.
Samsung Galaxy A30 Volume Adjustment in the hand

After One UI release Samsung optimized mobiles well with the software. But when you feel you need to use root required apps or more control on your mobile, you can root your mobile using the below method. When you are a regular user, instead of rooting, you can try some alternative apps.

Table of Contents

  • Did you need to Root Samsung Galaxy A30 in Android 10?
  • How to Root Samsung Galaxy A30 Android 10 One UI 2.0 (SM-A305F/ SM-A305FN / SM-A305G / SM-A305GN)
    • Things to check out for;
    • Pre-Requirement Steps
      • Unlock Bootloader
      • Preparing Patched Boot Image file
    • Flash Patched Boot Image using ODIN
      • Boot into Rooted OS
  • What More?

Did you need to Root Samsung Galaxy A30 in Android 10?

You should have a strong reason for rooting. Samsung Already released One UI 2.0 based on Android 10 and is already optimized. You have More than Enough 3/4 GB RAM to use daily apps without lag for years. Yes, I Know, RAM maybe looks like not enough because of the Samsung Heavily customized OS. But, Trust me, One UI is far better than other Custom Skin OS. You can use this device without lag for years until Samsung mess with some Bloatware. But beyond, this not go reasons, you are addicted to some root apps, or you are a frequent user of some Custom OS, you can proceed further. But if you want to root because everybody is doing, I advise you, don’t root If you didn’t have any experience. For regular users, It can become a Nightmare.

Buy Samsung Galaxy S22 Ultra from $6.46/mo for 24 Months with Eligible Trade-In.
Samsung Galaxy S23 available for $0.00/mo with T-Mobile Credit and Trade-in Deal

How to Root Samsung Galaxy A30 Android 10 One UI 2.0 (SM-A305F/ SM-A305FN / SM-A305G / SM-A305GN)

First of all, thanks to the developer for the Root method. topjohnwu – this genius is a one who discovered and maintaining Magisk. Samsung Galaxy A30 International variants come with a flexible bootloader. It means that the smartphone can be easily rooted. Also, the device can accept to install TWRP recovery or any other custom recovery file/app alike. Don’t try with Snapdragon US Variants like Verizon devices. They come with a locked Bootloader.

Also Read-  Root Samsung Galaxy A12/Nacho Android 12 SM-A125F/M/N using Magisk

But In the below method, we are going to Root this device by using Magisk. You can install Official TWRP using the official app when it is released. TWRP recovery is a custom recovery file that must be installed on your devices because you can root them successfully. In this article, we explained the easiest method to follow and install Magisk on Samsung Galaxy A30. However, the tool required for rooting this device is the Magisk App.

You can flash TWRP once it is available. With the help of TWRP Recovery, you can quickly flash the Custom ROMs into your Samsung Galaxy A30. Before sharing the tutorial, you may want to know that, with the Magisk present on your device, you can easily install any root apps. Does it seem complicated? Relax, everything will be explained succinctly in bullets.

Things to check out for;

  • Check your device model number.

  • Install Latest Magisk Manager.
  • Make sure your device battery is charged above 50%

  • Backup your current files and data- Full Data Loss Process (save them on external storage).

  • You cannot use Samsung Pay, Secured folder, and some official apps from Samsung.
  • You can’t update your firmware, to get new firmware you have to follow the below steps with the latest firmware.
  • Read the full tutorial before the process.

Pre-Requirement Steps

Unlock Bootloader

Enabling developer option

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this; go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode and OEM Unlock. There is no complicated process in the Samsung Galaxy A30.

Samsung A30 Download Mode

  • Switch off your device. Enter into Download Mode-> Volume Down+ Volume Up+ Power and Connect your mobile with PC using USB Cable. When Download mode warning screen Appears, Press Volume Up button to unlock Bootloader.

Samsung Galaxy Bootloader Warning Screen

  • The above process will wipe your user data. After setup your device, Please recheck the OEM Unlock in the settings. Sometimes It Will Lock Again.

Preparing Patched Boot Image file

  • Download and install the Samsung USB driver to your computer system.

  • Also, download the ODIN software. Select the above Oreo version in the ODIN list. Install ODIN on your PC.

  • Download Samsung Galaxy A30 Android 10 Firmware and save it on your PC. Your Current OS version and Downloaded Version AP and CSC should be the Same.
  • You can use Phone Info to know your firmware version.
Also Read-  Fix Battery Drain Issues in Samsung Galaxy Tab S7 Plus SM-T970/T975/T976 After Installing Update

Samsung AP Extracted files

  • Download 7Zip-ZS, LZ4, and Install both on your PC. Extract the files in downloaded firmware using 7Zip-ZS. You will get four files. Click on the AP File and Extract again. You will get some data along with the boot.img.lz4.

Convert lz4 file to img

  • Copy the boot.img.lz4 to LZ4 Installed folder. Convert lz4 file to .img file by dragging the .img file to the lz4 application file. You have to pull the data to that application. The script will automatically convert the file to .img format. After the convert, Copy boot — img file to your mobile.
  • Download Magisk Manager (Download Latest version) or Magisk canary and Install it on your mobile. Open Installed Magisk and Select Install in Magisk; it will ask For zip file and Patch Boot Image File. Select the Boot Image file.

Magisk Boot Image File

  • Navigate to your copied Boot Image File and patch the file.

Magisk Firmware Patch Process

  • Wait for the process to complete, In the end, you will get magisk patched .tar file. The .tar file will be in the same folder where you have the Stock firmware file. If you didn’t get the .tar and you got .img file. No problem. Copy this file to your PC. We can convert the data there.

Convert magisk patched tar file

  • When you get .img file, Open the installed 7zip app. Navigate the magisk patched img file and select Add. Choose .tar format and choose ok. Now we got ODIN flashable .tar file.

Flash Patched Boot Image using ODIN

  • Due to Samsung’s new security restrictions, we can’t flash TWRP with Stock Boot on your mobile. So, we have to flash a patched boot using ODIN.
  • Unlock your screen lock. There should be no fingerprint, PIN Lock, Wipe. Set No lock in the settings.
  • Switch off your Mobile. Enter into Download mode->Volume Down+ Volume Up Buttons and Connect Your Mobile To PC via USB Cable, After Samsung Logo Appear, Release all keys.

Samsung J4 Plus Warning screen

  • After entering into Download Mode, it will say Warning, Press Volume Up button to continue.
  • Launch Odin Application.

ODIN Added Message

  • It Will Show the message added.
  • If you did not get this message, Repeat the above steps.

ODIN software screenshot

  • After Getting Added Message Select, AP/PDA Button, then Browse for the patched Magisk .tar file select it. Along with this file, you should select and flash the other three non-patched firmware files. We have to flash only the magisk patched boot image file. Un-Tick the Auto-Reboot.

Odin Auto Reboot

  • Press Start wait for the tasks to complete. After the process complete, Press Volume Down+ Power button to exit Download mode. When the screen goes off, Immediately Press Volume Up+ Volume Down + Power buttons to boot into Recovery mode.
Also Read-  Download Samsung Galaxy A10e SM-A102U T-Mobile USA Android 11 One UI 3.1 Stock Firmware (Carrier Locked)

Samsung Galaxy A30 Recovery Mode

  • After entering into Stock recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase your saved data in your device. Don’t Boot into OS, Read below Boot stages before booting.

Samsung Galaxy M10 Recovery Mode Warning Screen

Boot into Rooted OS

  • Press and Hold Volume Up + Power buttons, release all the keys once the Bootloader warning appears. You have to set up your device like a new device. You can select the root status using the Root Checker.
  • Stock Recovery Boot – Press and Hold Volume Up + Power buttons, release keys while you hold the Volume Up key.
  • You will see Magisk Manager in your App drawer. If you can’t find the app, you can install Magisk Manager on your mobile.

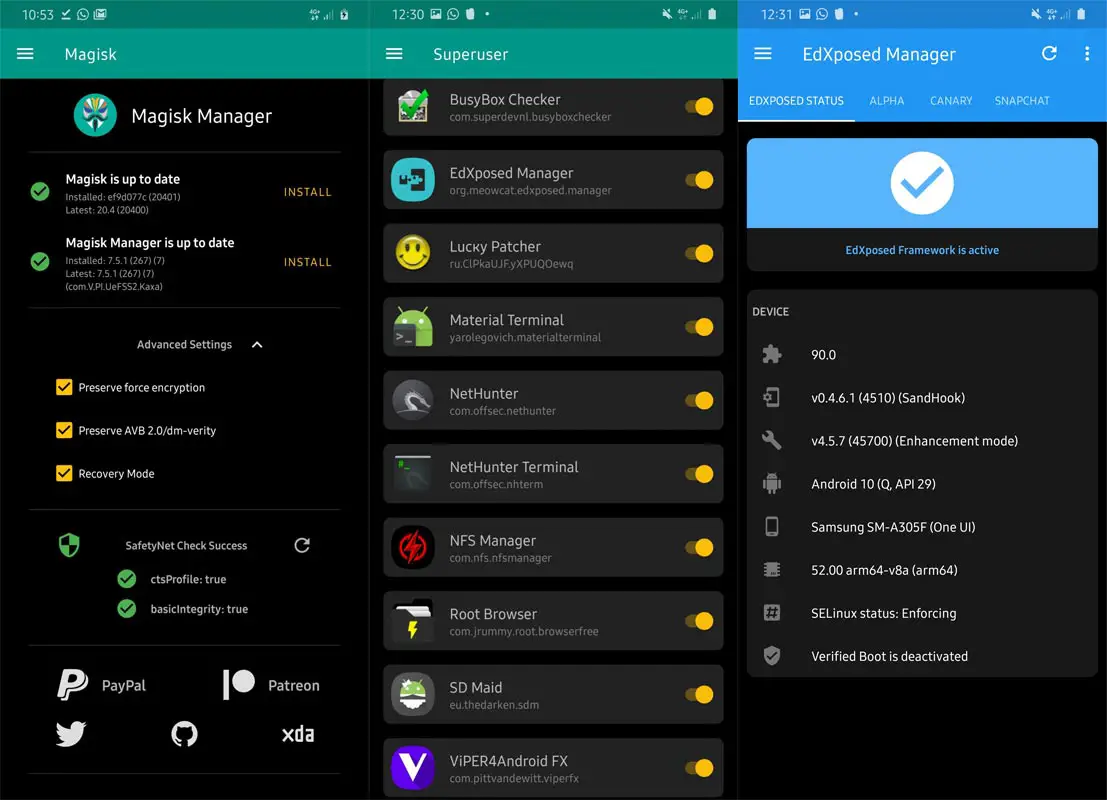

Samsung Galaxy A30 Magisk Root Status

What More?

In my opinion, you don’t need rooting for your Samsung Galaxy A30. If you thought you could Improve Performance By root; With the Exynos 7904 Octa-Core processor and 3/4 GB RAM, your device can perform well. If you don’t know how much RAM you need, You will never use this much RAM. You should not Boot into Normal OS Booting, by pressing the power button, after firmware flash. It will boot you to a Non-Rooted environment. If you accidentally urged and boot frequently, Don’t panic, after setup everything, switch off your device and boot into Rooted OS using above mentioned keys. If you root your device, because of the battery drain issues, you can optimize your battery without root. Beyond this, if your purpose is to Disable Bloatware apps, you can do that without using this method. When you have any suggestions or doubts, comment below.

Source, (2)

Selva Kumar A

Selva Kumar is an Android Devices Enthusiast, Who Can Talk and Write About Anything If You Give a Hint About the respective devices. He is a Computer Science Graduate and Certified Android Developer, Making His Career towards this Technology. He is always eager to try new Android devices — not only Software level but Hardware-level Also. Beyond this, He is a Good Swimmer, Guitarist.
