Root Samsung Galaxy A8 2018 SM-A530F/N/W Pie 9.0 using Magisk and Install TWRP

Samsung Galaxy A8 2018 is an Upper Mid-Range Phone, or It is near Flagship device. It has all Flagship features including IP68 dust/water-resistant. The only the processor varies compare with High-End devices. Most of the “A” series devices always receive regular patch updates. A8 2018 received the New Samsung OS One UI Pie 9.0. If you compare with Old UI, It is the best custom Skin OS in Samsung list till now. There will be regular Improvements in this OS. So, If you received the update and want to root your mobile, We can’t root our mobile like Old Samsung methods. They added a lot of security measures to avoid the root process. So, This root method will have some additional steps. IF you are a regular user, You don’t have to root your mobile. You can use this mobile for 2-3 years without rooting, As you have the latest version of Android. If you are a Developer or regular root apps user, you can follow below guide to root your mobile.

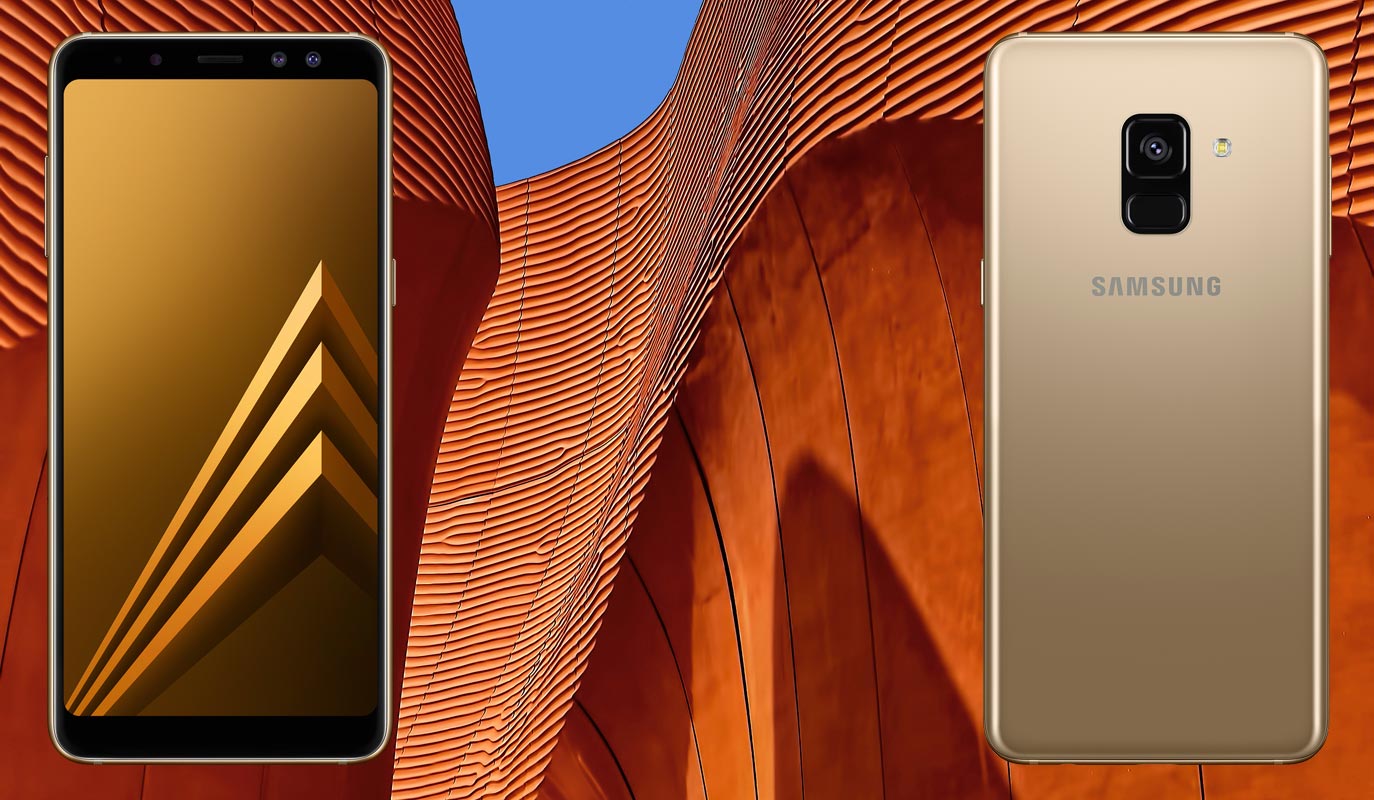

Samsung Galaxy A8 2018 with Architecture Background

Why should you Root Samsung Galaxy A8 2018?

You should have a strong reason for rooting. Samsung Already released One UI 9.0 Pie and is already optimized. You have More than Enough 4 GB RAM to use daily apps without Lag for years. Yes, I know, you may think, Samsung Custom Skin OS can make some problem. But, Trust me One UI is far better than other Custom Skin OS. You can use this device without lag for years until Samsung mess with some Bloatware. But beyond, this not go reasons, you are addicted to some root apps, or you are a frequent user of some Custom OS, you can proceed further. But if you want to root because everybody is doing, I advise you, don’t root If you didn’t have any experience. For regular users, It can become a Nightmare.

How to Root Samsung Galaxy A8 2018 Pie 9.0 (SM-A530F, SM-A530N, SM-A530W)

First of all, thanks to topjohnwu – this genius is one who discovered and maintaining Magisk. We also thank XDA Developers- corsicanu, burnt_31 (A530W), Who tested and succeeded in this method.

Samsung Galaxy A8 2018 International variants come with a flexible bootloader. This means that the smartphone can be easily rooted. Also, the device can accept to install TWRP recovery or any other custom recovery file/app alike. Don’t try with Snapdragon US Variants like Verizon devices. They come with locked Bootloader.

But In the below method, we are going to Root this device by using Magisk and Install TWRP. You can install TWRP using the official App when it is released. TWRP recovery is a custom recovery file which must be installed on Samsung Galaxy devices because you can root them successfully. In this article, we explained the easiest method to follow and install TWRP recovery on Samsung Galaxy A8 2018. However, the tool required for rooting this device is the Magisk App.

With the help of TWRP Recovery, you can quickly flash the latest version of Magisk into your A8 2018 to gain root access. Before sharing the tutorial, you may want to know that, with the TWRP recovery present on your device, you can easily install any custom ROM or firmware. Does it seem complicated? Relax, everything will be explained succinctly in bullets.

Things to check out for;

  • Check your device model number.

  • Install Latest Magisk Manager.
  • Make sure your device battery is charged above 50%

  • Backup your current files and data- Full Data Loss Process (save them on external storage).

  • You cannot use Samsung Pay, Secured folder, and some official apps from Samsung.
  • You can’t update your firmware, to get new firmware you have to follow the below steps with the latest firmware.
  • Read full tutorial before the process.

Pre-Requirement Steps

Unlock Bootloader

Enabling developer option

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this; go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode and OEM Unlock. There is no complicated process in the Samsung Galaxy A8 2018.

Samsung Galaxy A8 2018 Unlock Bootloader

  • Switch off your device. Enter into Download Mode-> Volume Down+Volume Up and Connect your mobile with PC using USB Cable. When Download mode warning screen Appears, Press Volume Up button to unlock Bootloader.

Samsung Galaxy Bootloader Warning Screen

  • The above process will wipe your User Data. After Setup your device, Please recheck the OEM Unlock in the settings. Sometimes It Will Lock Again.

Preparing Patched Boot Image file

  • Download and install the Samsung USB driver to your computer system.

  • Also, download the ODIN software. Select above Oreo version in the ODIN list. Install ODIN on your PC.

  • Download forced_encryption_disabler, RMM State Bypass. We Need to flash RMM State to avoid OEM Lock automatically in future after the Root process, and no-verity-opt-encrypt. We Need to flash encryption disabler to avoid Boot Warnings in the future after the Root process. Copy all these files to the external SD Card.
  • You should download the TWRP file from below. If you need Custom Recovery or you can skip this step. Copy this file to PC for flash using ODIN.
  • You can use Phone Info to know your firmware version.
  • Download 7Zip-ZS Install on your PC. Extract the files in downloaded firmware using 7Zip-ZS. You will get four data. Copy “AP.tar.md5” file to your mobile.
  • Download Magisk Manager (Download Latest version) or Magisk canary and Install it on your mobile. Open Installed Magisk and Select Install in Magisk, It will ask For zip file and Patch Boot Image File. Select the Boot Image file.

Magisk Boot Image File

  • Navigate to your copied Boot Image File and patch the file.

Magisk Firmware Patch Process

  • Wait for the process to complete, In the end, you will get magisk patched .tar file. The .tar file will be in the same folder where you have the Stock firmware file.
  • Copy magisk_patched.tar file to your PC.

Step 1: Flash Patched Boot Image using ODIN

  • Switch off your Mobile. Enter into Download mode->Volume Down+ Volume Up Buttons and Connect Your Mobile To PC via USB Cable, After Samsung Logo Appear, Release all keys.

Samsung Galaxy A8 2018 Download Mode Warning Screen

  • After entering into Download Mode, it will say Warning, Press Volume Up button to continue.
  • Launch Odin Application.

ODIN Added Message

  • It Will Show the message added.
  • If you did not get this message Repeat the above steps.

ODIN software screenshot

  • After Getting Added Message Select, AP/PDA Button then Browse for the magisk patched file selects it. All other three files should be Unpatched and Extracted from the firmware. So, Now you got four files in the ODIN. Un-Tick the Auto-Reboot.

Odin Auto Reboot

  • Press Start wait for the tasks to complete. After the process complete, Press Volume Down+ Power button to exit Download mode. When the screen goes off, Immediately Press Volume Up+ Volume Down + Power buttons to boot into Recovery mode.

Samsung Galaxy A8 2018 Recovery Mode

  • After entering into Stock recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase your saved data in your device. Don’t Boot into OS, Read below Boot stages before booting.

Samsung Galaxy M40 Stock recovery

Boot into Rooted OS

  • Press and Hold Volume Up + Power buttons, release all the keys once the Bootloader warning appears. You have to set up your device like a new device. You can select the root status using Root Checker.
  • Stock Recovery Boot – Press and Hold Volume Up + Power buttons, release keys while you hold the Volume Up key.
  • You will see Magisk Manager in your App drawer. If you can’t find the app, you can install Magisk Manager in your mobile.

Step 2: Flash TWRP using ODIN

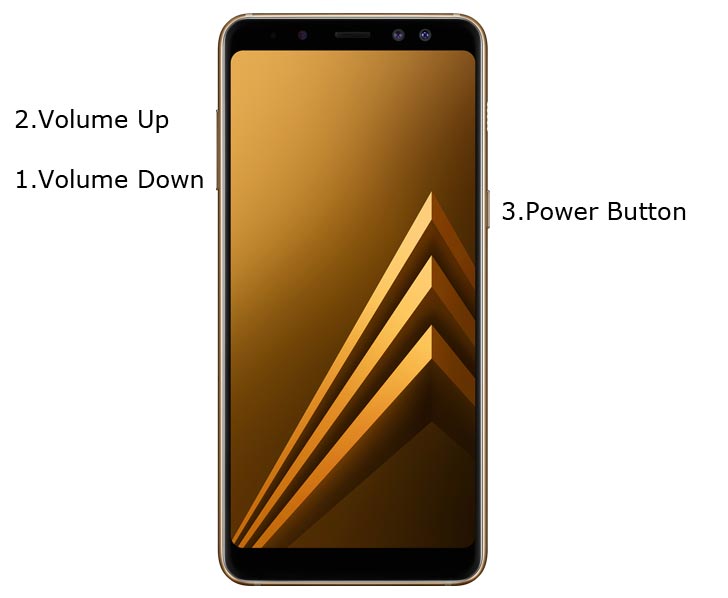

Samsung Galaxy A8 2018 Download Mode

  • Connect your USB cable with PC. Switch off your device. Then, enter into Download mode. To do this; press and hold Volume Down+ Volume Up+ Power Buttons and Connect Your Mobile To PC via USB Cable, After Samsung Logo Appear, Release all keys.
  • Press the Volume Up button to continue when you see the warning message.

  • Now, connect the Samsung Galaxy A8 2018 mobile to the computer via USB cable.

  • Launch the Odin app on your computer. If the device is detected by this app (Odin), it will show you a message that reads – added!!!

ODIN Added Message

  • However, if the device is not correctly connected to the PC, you won’t see this message. So, you have to check the USB cable if it is reasonable and reconnect the device.
  • After connecting the Samsung device, click on the PDA/PA button to browse/search and get the TWRP from where you saved it on your PC. Also, navigate to “options” and Un-tick the Auto-Reboot.

Odin Auto Reboot

  • Click on “Start”

  • Once the file is loaded into the device, reboot your device.

  • Kudos, you have just Installed the TWRP on your Samsung Galaxy A8 2018. If you installed TWRP, Don’t turn on your mobile. Immediately, move to Magisk Installation steps.

Install Magisk, no-verity-opt-encrypt, forced_encryption_disabler, and RMM State By-Pass in your Samsung Galaxy A8 2018 using TWRP

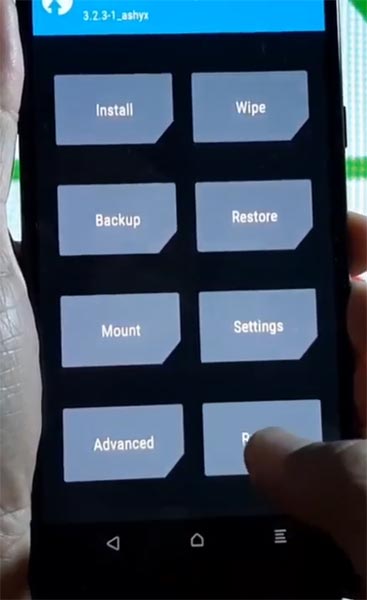

Samsung Galaxy A6 Plus 2018 TWRP

  • Press Volume Down+ Power button to exit Download Mode, Immediately press Volume Up+ Power button to enter into TWRP recovery mode. If you accidentally boot into OS, you will lose TWRP. You have to flash the TWRP again.
  • Now it Will Boot into TWRP Recovery Mode.
  • Select Wipe->Advance Wipe->Select Cache Data.
  • Return to Home of TWRP select Install.

Samsung Galaxy A6 Plus 2018 Magisk no verity Installation

  • Select forced_encryption_disabler.zip.
  • Return to Home of TWRP select Install.
  • Select RMM State By-Pass.zip. Same process on no-verity-opt-encrypt and Magisk installation.
  • You should Install One by One. Don’t use add more zips feature in TWRP. After the Installation Reboot Your Mobile.
  • You can also install Magisk.apk in your Mobile Applications. no-verity-opt-encrypt is used to avoid the Encryption issue after rooting. You can check your root status using Root Checker.
  • If you didn’t find Magisk in App Drawer, you should Install Magisk app again.

What More?

In my opinion, you don’t need rooting for your Samsung Galaxy A8 2018. If you thought, you could Improve Performance By root; With the Exynos 7885 Octa-Core processor and 4 GB RAM, your device can perform well. If you don’t know how much RAM you need, You will never use this much RAM. You should not Boot into Normal OS Booting, by pressing the power button, after firmware flash. It will boot you to Non-Rooted environment. If you accidentally urged and boot frequently, Don’t panic, after setup everything, switch off your device and boot into Rooted OS using above mentioned keys. If you root your device, because of the battery drain issues, you can optimize your battery without root.

Source, (2)

Share This Post:

29 thoughts on “Root Samsung Galaxy A8 2018 SM-A530F/N/W Pie 9.0 using Magisk and Install TWRP

  1. To newbies and persons that used to root years ago, we don’t understand. You should make a video explaining step by step; it would be better than texts.

    • Year by Year Rooting process becomes harder. But, We try our best to provide the steps with the help of Developers. New Root methods may not easy like Old days. We try our best to simplify the steps. But, We can’t ignore the process. If you read the guide one more tie, you can understand the process.

  2. Thanks for the tutorial works excellent.
    However, once rooted, I cannot use device encryption! Have you managed to have root+encryption? I have tried several tutorials for rooting this particular phone with success, but the encryption never works after the phone is rooted.
    Grateful for any help
    thanks.

  3. I need to delete a former locked APN since it causes some problems when the phone is roaming. But it’s impossible to do it with the regular user; it’s locked — kind of former carrier settings. Does rooting my phone will allow me do fix that? Is it a good reason to root my phone? Thanks!

    • Bootloader unlock and Carrier unlock are different. You can’t change the carrier settings using Root. It is better to contact some third-party SIM unlock service.

    • This method won’t wipe your user data unless you choose the options in the Recovery. But As a Precaution, we advise you to take backup.

  4. Hello,
    My Samsung A8 was rooted, but after installing the magisk module, my phone get stuck won’t start again, so I install the original stock with Odin Android 9 Pie, and the phone was ok again. But some apps say your phone is rooted and root checker says your phone is not the root. My problem is when I tried to root my phone again, Odin refuses to load twrp in AP. How can I root my phone again? Thanks in advance and sorry for bad English.

      • We have to make complete a clean installation. Boot into stock recovery and wipe user data. Flash the firmware with the latest build number using ODIN.

      • Hello, when the phone was rooted, I install the GPS module for a better connection than the phone get stuck at the Samsung logo.

        • We can support with Rooting process. The problem is the Magisk module. You have to contact the respective developer regarding this. Or check the developer issued a patch update.

    • The TWRP is official. You can check the patch versions or old versions form their blog if one TWRP doesn’t work for you.

  5. 1. I turned off my device
    2. Connected To USB
    3. Volume Down + Volume UP
    4. Warning Screen Appears
    5. Quick press Volume UP

    The phone starts vibrating, and my display goes back. Should I wait, or am I doing something wrong?

  6. Since the first step, I have lost. I mean, I installed MagisK Manager, but I don’t know how to flash the zip file, I can’t see the option.

  7. I have a problem with Odin, I tried to install the parched zip, but Odin thought this message: only official released binaries are allowed to be flashed. Could you help me? P.D. I tried to install the patched zip with a new Odin. What can I do?
