Root Samsung Galaxy A90 5G SM-A9080/B/N Android 10 using Magisk

by Selva Kumar A Leave a Comment

A few years when a person uses rooted mobile, they may be a developer or be dealing with low-performance devices. But after features provided by root apps and custom ROMs, regular users also begin to root their mobile and use root apps. So, The root process didn’t fall into fix some performance issues. Samsung Galaxy A90 5G comes with Android 10 and has powerful flagship-level specs. But when you are a regular root apps user or developer, you can root your Samsung Galaxy A90 5G Android 10 using the below method. Since we are not using custom recovery in this process, you can’t install custom ROMs. But the process can support all root required apps.

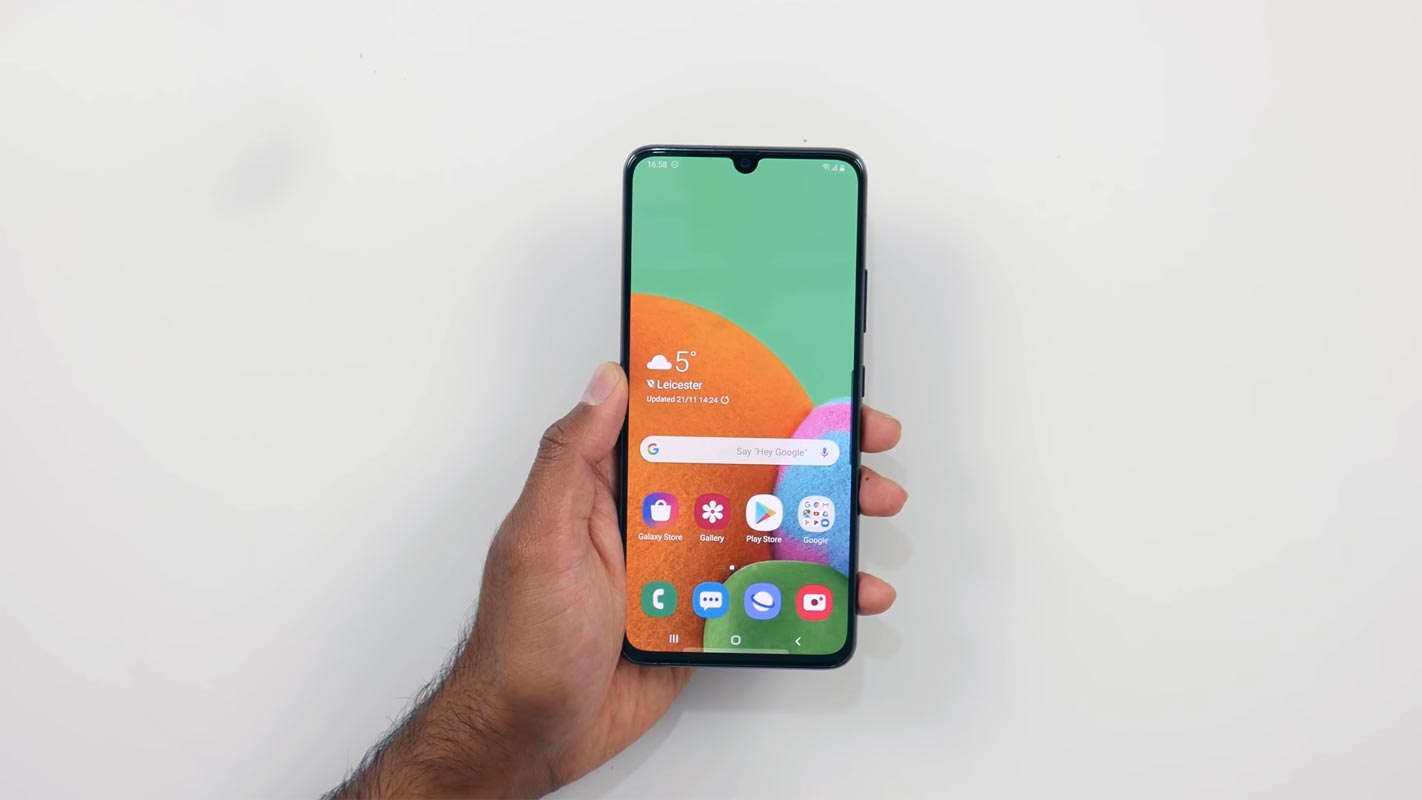

Samsung Galaxy A90 5G Home Screen in hand

After root, you will lose official updates. You have to update your mobile manually. So, Before proceeding with the process, you should know why you need to do it. If you are a regular user, you can try some alternatives for your purpose that don’t require root. When you are a regular root apps user and developer, you can follow the below guide to achieve root on your mobile.

Table of Contents

  • Should you need to Root your Samsung Galaxy A90 5G Android 10 version?
  • How to Root Samsung Galaxy A90 5G Android 10 One UI 2.0 (SM-A9080, SM-A908B, SM-A908N)
    • Things to check out for;
    • 1. Unlock Bootloader
    • 2. Preparing Patched AP.tar file
    • 3. Flash Patched AP.tar along with other firmware files using ODIN
      • Boot into Rooted OS
  • What More?

Should you need to Root your Samsung Galaxy A90 5G Android 10 version?

It would be best if you had a strong reason for rooting. Samsung Galaxy A90 5G already got One UI 2.0 based on Android 10 and is already optimized. You have More than Enough 6/8 GB RAM to use daily apps without lag for years. Yes, RAM is more than enough, even with the Samsung Heavily customized OS. But, Trust me, One UI is far better than other Custom Skin OS. You can use this device without lag for years until Samsung mess with some Bloatware. But beyond, this not go reasons you are addicted to some root apps, or you are a frequent user of some Custom OS, you can proceed further. But if you want to root because everybody is doing, I advise you, don’t root If you didn’t have any experience. For regular users, It can become a Nightmare.

Buy Samsung Galaxy S22 Ultra from $6.46/mo for 24 Months with Eligible Trade-In.
Samsung Galaxy S23 available for $0.00/mo with T-Mobile Credit and Trade-in Deal

How to Root Samsung Galaxy A90 5G Android 10 One UI 2.0 (SM-A9080, SM-A908B, SM-A908N)

Thanks to the developer triggz881 for finding the root method and topjohnwu – this genius is the one who discovered and maintained Magisk. Samsung Galaxy A90 5G International variants come with a flexible bootloader. It means that the smartphone can be easily rooted. The device can also accept installing TWRP recovery or any other custom recovery file/app. Don’t try with Snapdragon US Variants like Verizon devices. They come with a locked Bootloader.

Also Read-  Root Samsung Galaxy A8 Plus 2018 SM-A730F Pie 9.0 using Magisk and Install TWRP

But In the below method, we are going to Root this device by using Magisk. You can install Official TWRP using the official app when it is released. TWRP recovery is a custom recovery file that must be installed on your devices because you can root them successfully. This article explained the easiest method to follow and install Magisk on Samsung Galaxy A90 5G. However, the tool required for rooting this device is the Magisk App.

You can flash TWRP once it is available. With the help of TWRP Recovery, you can quickly flash the Custom ROMs into your Samsung Galaxy A90 5G. Before sharing the tutorial, you may want to know that you can easily install any root apps with the Magisk present on your device. Does it seem complicated? Relax, everything will be explained briefly in bullets.

Things to check out for;

  • Check your device model number.

  • You should back up your current files and data- Full Data Loss Process (save them on external storage).
  • Install Latest Magisk Manager.
  • Make sure your device battery is above 50%

  • You cannot use Samsung Pay, Secured folder, and some official apps from Samsung.
  • You can’t update your firmware; to get new firmware, you must follow the below steps with the latest firmware.
  • Read the full tutorial before the process.

1. Unlock Bootloader

Enabling developer option

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this, go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode and OEM Unlock. There is no complicated process in the Samsung Galaxy A90 5G.

Samsung Galaxy A90 5G Download Mode

  • Switch off your device. Enter into Download Mode-> Volume Down+ Volume Up Button and Connect your mobile with PC using USB Cable. When the Download mode warning screen Appears, Press the Volume Up button to unlock Bootloader.

Samsung Galaxy Bootloader Warning Screen

  • The above process will wipe your user data. After setup your device, Please recheck the OEM Unlock in the settings. Sometimes It Will Lock Again.

2. Preparing Patched AP.tar file

  • Download and install the Samsung USB driver to your computer system.

  • Also, download the ODIN software. Select the above Oreo version in the ODIN list. Install ODIN on your PC.

  • Download Samsung Galaxy A90 5G Android 10 Firmware and save it on your PC. Your Current OS version and Downloaded Version AP and CSC should be the Same.
  • You can use Phone Info to know your firmware version.
  • Download 7Zip-ZS and Install it on your PC. Extract the files in downloaded firmware using 7Zip-ZS. You will get four files (You will get Five files. CSC file is compatible with this process, So we drop Home CSC files).
Also Read-  Root Samsung Galaxy Note 10 Exynos SM-N970F Pie 9.0 using Magisk

Samsung Galaxy Extracted Firmware Files

  • Copy the AP File to your mobile.
  • Download Magisk Manager (Download Latest version) or Magisk canary and Install it on your mobile. Open Installed Magisk and Select Install in Magisk; it will ask For a zip file and Patch Boot Image File. Select the AP file.

Magisk Boot Image File

  • Navigate to your copied Boot Image File and patch the file.

Magisk Firmware Patch Process

  • Wait for the process to complete; in the end, you will get a magisk patched .tar file. The .tar file will be in the same folder where you have the Stock firmware file. If you didn’t get the .tar and you got the .img file. No problem. Copy this file to your PC. We can convert the data there.

Convert magisk patched tar file

  • When you get the .img file, Open the installed 7zip app. Navigate the magisk patched img file and select Add, Choose .tar format and choose ok. Convert only AP file. You will get the AP.tar file.

3. Flash Patched AP.tar along with other firmware files using ODIN

  • Due to Samsung’s new security restrictions, we can’t flash the AP file with Stock Boot on your mobile. So, we have to flash a patched AP using ODIN.
  • Unlock your screen lock. There should be no fingerprint, PIN Lock, Wipe. Set No lock in the settings.
  • Switch off your Mobile. Enter into Download mode->Volume Down+ Power Buttons and Connect Your Mobile To PC via USB Cable; after Samsung Logo Appear, Release all keys.

Samsung J4 Plus Warning screen

  • After entering into Download Mode, it will say Warning; press the Volume Up button to continue.
  • Launch Odin Application.

ODIN Added Message

  • It Will Show the message added.
  • If you did not get this message, Repeat the above steps.

ODIN software screenshot

  • After Getting Added Message Select, AP/PDA Button, then Browse for the patched Magisk AP.tar file, select it. Along with this file, you should choose and flash the other three non-patched firmware files. Un-Tick the Auto-Reboot.

Un-Tick Auto reboot ODIN

  • Press Start wait for the tasks to complete. After the process complete, Press the Volume Down+ Power button to exit Download mode. When the screen goes off, Immediately Press the Volume Up + Power buttons to boot into Recovery mode.
Also Read-  Download Samsung Galaxy A23 5G SM-A236U AIO Cricket Wireless USA Android 13 One UI 5.0 Stock Firmware (Carrier Locked)

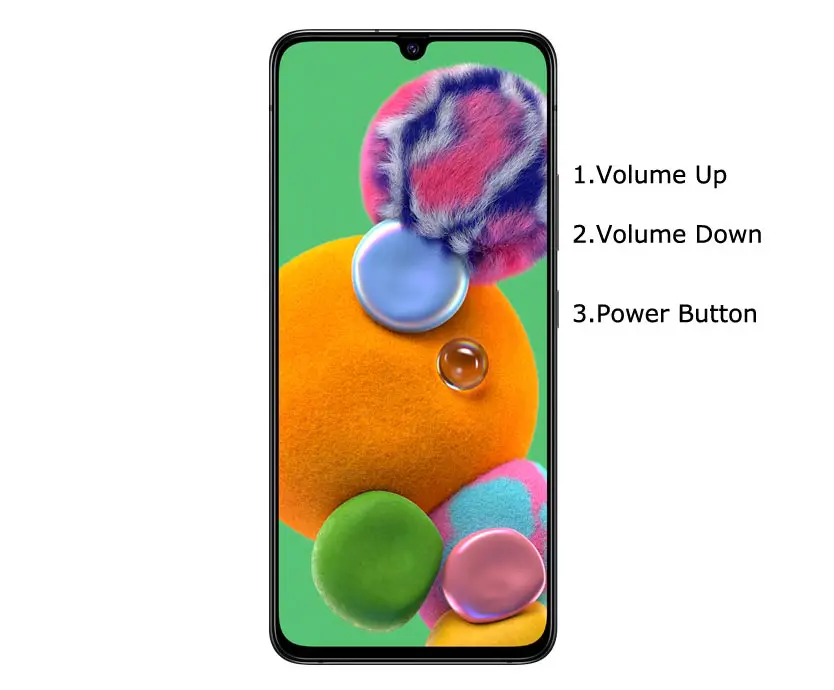

Samsung Galaxy A90 5G Recovery Mode

  • After entering into Stock recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase your saved data on your device. Don’t Boot into OS. Read below Boot stages before booting.

Samsung Galaxy M10 Recovery Mode Warning Screen

Boot into Rooted OS

  • Press and Hold Volume Up + Power buttons, release all the keys once the Bootloader warning appears. You have to set up your device like a new device. You can check the root status using the Root Checker.
  • Stock Recovery Boot – Press and Hold Volume Up + Power buttons, release keys while you hold the Volume Up key.
  • You will see Magisk Manager in your App drawer. If you can’t find the app, you can install Magisk Manager on your mobile.

What More?

In my opinion, you don’t need to root your Samsung Galaxy A90 5G Android 10. If you thought you could Improve Performance By root; With the Qualcomm SM8150 Snapdragon 855 Octa-Core processor and 6/8 GB RAM, your device can perform well. If you don’t know how much RAM you need, You will never use this much RAM. It would help if you did not Boot into Normal OS Booting by pressing the power button after firmware flash. It will boot you to a Non-Rooted environment.

When you accidentally urged and boot frequently, Don’t panic; after setup everything, switch off your device and boot into Rooted OS using above mentioned keys. If you root your device because of the battery drain issues, you can optimize your battery without root. Beyond this, if your purpose is to Disable Bloatware apps, you can do that without using this method. When you have any suggestions or doubts, comment below.
