Root Samsung Galaxy J6 Plus SM-J610F/FN/G Pie 9.0 using TWRP and Magisk

Samsung Galaxy J6 Plus received most awaited Pie 9.0 update that based on One UI. If you compare One UI with the old Samsung OS, you can notice, How much Samsung is improved UI and the performance. If you are a regular user, you don’t need. The steps are a little complicated when you compare TWRP flash using ODIN to achieve root on the Old process. So, If you don’t have experience in rooting, I will not suggest this method. After Pie update, Samsung added some security measures. So, We can’t root using only TWRP. We should patch the Boot image of your mobile and unlock the Bootloader. If you don’t want Custom Recovery, you can skip the TWRP Installation step. But, In My opinion, If you planned to root, TWRP installation is a great choice. Follow the below steps to achieve root on your mobile.
Samsung Galaxy J6 Plus with Beach Background

Why should you Root Samsung Galaxy J6 Plus?

You should have a strong reason for rooting. Samsung Already released One UI 9.0 Pie and is already optimized. You have More than Enough 4 GB RAM to use daily apps without Lag for years. You can use this device without lag for years until Samsung mess with some Bloatware. But beyond, this not go reasons, you are addicted to some root apps, or you are a frequent user of some Custom OS, you can proceed further. But if you want to root because everybody is doing, I advise you, don’t root If you didn’t have any experience. For regular users, It can become a Nightmare.

How to Root Samsung Galaxy J6 Plus Pie 9.0 (J6+, SM-J610F, SM-J610FN, SM-J610G)

First of all, thanks to ashyx – XDA developer for TWRP support and topjohnwu – this genius is a one who discovered and maintaining Magisk. Samsung Galaxy J6 Plus International variants come with a flexible bootloader. This means that the smartphone can be easily rooted. Also, the device can accept to install TWRP recovery or any other custom recovery file/app alike. Don’t try with Snapdragon US Variants like Verizon devices. They come with locked Bootloader.

But In the below method, we are going to Root this device by using Magisk and TWRP. You can install Official TWRP using the official App when it is released. TWRP recovery is a custom recovery file which must be installed on Samsung Galaxy devices because you can root them successfully. In this article, we explained the easiest method to follow and install TWRP recovery on Samsung Galaxy J6 Plus. However, the tool required for rooting this device is the Magisk App.

With the help of TWRP Recovery, you can quickly flash the latest version of Magisk into your J6 Plus to gain root access. Before sharing the tutorial, you may want to know that, with the TWRP recovery present on your device, you can easily install any custom ROM or firmware. Does it seem complicated? Relax, everything will be explained succinctly in bullets.

Things to check out for;

  • Check your device model number.

  • Install Latest Magisk Manager.
  • Make sure your device battery is charged above 50%

  • Backup your current files and data- Full Data Loss Process (save them on external storage).

  • You cannot use Samsung Pay, Secured folder, and some official apps from Samsung.
  • You can’t update your firmware, to get new firmware you have to follow the below steps with the latest firmware.
  • Read full tutorial before the process.

Pre-Requirement Steps

Unlock Bootloader

Enabling developer option

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this; go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode and OEM Unlock. There is no complicated process in the Samsung Galaxy J6 Plus.

Samsung J6 Download Mode

  • Switch off your device. Enter into Download Mode-> Volume Up+Volume Down and Connect your mobile with PC using USB Cable. When Download mode warning screen Appears, Press Volume Up button to unlock Bootloader.
  • The above process will wipe your User Data. After Setup your device, Please recheck the OEM Unlock in the settings. Sometimes It Will Lock Again.

Preparing Patched Boot Image file

  • Download and install the Samsung USB driver to your computer system.

  • Also, download the ODIN software. Select above Oreo version in the ODIN list. Install ODIN on your PC.

  • Download forced_encryption_disabler, RMM State Bypass, Copy it to Your Phone Memory. We Need to flash RMM State to avoid OEM Lock automatically in future after the Root process, and no-verity-opt-encrypt, Copy it to Your Phone Memory. We Need to flash encryption disabler to avoid Boot Warnings in the future after the Root process. Copy all these files to the external SD Card.
  • You should download the TWRP file from below. If you need Custom Recovery or you can skip this step. Copy this file to PC for flash using ODIN.
  • You can use Phone Info to know your firmware version.
  • Download 7Zip-ZS and LZ4 Install both on your PC. Extract the files in downloaded firmware using 7Zip-ZS. You will get four files. Click on the AP File and Extract again. You will get some files along with the boot.img.lz4. Copy the boot.img.lz4 to LZ4 Installed folder. Convert lz4 file to .img file. After the convert, Copy boot.img file to your mobile.
  • Download Magisk Manager (Download Latest version) or Magisk canary and Install it on your mobile. Open Installed Magisk and Select Install in Magisk, It will ask For zip file and Patch Boot Image File. Select the Boot Image file.

Magisk Boot Image File

  • Navigate to your copied Boot Image File and patch the file.

Magisk Firmware Patch Process

  • Wait for the process to complete, In the end, you will get magisk patched .tar file. The .tar file will be in the same folder where you have the Stock firmware file.
  • Copy magisk_patched.tar file to your PC.

Step 1: Flash Patched Boot Image using ODIN

  • Due to Samsung new security restrictions, we can’t flash TWRP with Stock Boot in your mobile. So, we have to flash a patched boot using ODIN.
  • Unlock your screen lock. There should be no fingerprint, PIN Lock, Wipe. Set No lock in the settings.

Samsung J6 Download Mode

  • Switch off your Mobile. Enter into Download mode->Volume Down+ Volume Up Buttons and Connect Your Mobile To PC via USB Cable, After Samsung Logo Appear, Release all keys.

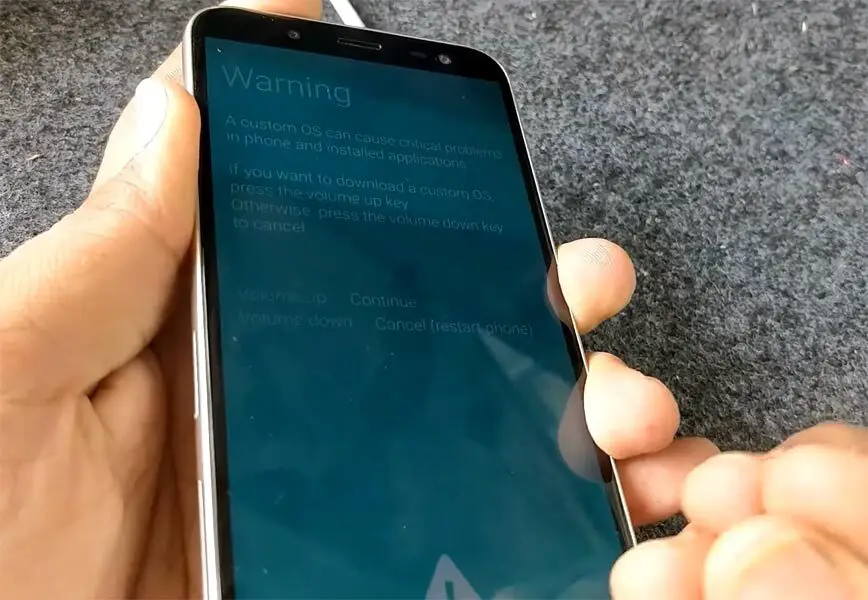

Samsung J6 Download Mode Warning screen

  • After entering into Download Mode, it will say Warning, Press Volume Up button to continue.
  • Launch Odin Application.

ODIN Added Message

  • It Will Show the message added.
  • If you did not get this message Repeat the above steps.

ODIN software screenshot



  • After Getting Added Message Select, AP/PDA Button then Browse for the Firmware file selects it. Un-Tick the Auto-Reboot.

Odin Auto Reboot

  • Press Start wait for the tasks to complete. After the process complete, Press Volume Down+ Power button to exit Download mode. When the screen goes off, Immediately Press Volume Up + Power buttons to boot into Recovery mode.

Samsung Galaxy J6 Plus Recovery Mode

  • After entering into Stock recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase your saved data in your device. Don’t Boot into OS, Read below Boot stages before booting.

Samsung S10e Recovery Mode

  • If you don’t need Custom Recovery, you can skip the next step. You already have rooted mobile. But, If you want TWRP for flashing Custom ROMs, you can move to Step 2.

Boot into Rooted OS

  • Press and Hold Volume Up + Power buttons, release all the keys once the Bootloader warning appears. You have to set up your device like a new device. You can select the root status using Root Checker.
  • Stock Recovery Boot – Press and Hold Volume Up + Power buttons, release keys while you hold the Volume Up key.
  • You will see Magisk Manager in your App drawer. If you can’t find the app, you can install Magisk Manager in your mobile.

Step 2: Flash TWRP using ODIN

  • Connect your USB cable with PC. Switch off your device. Then, enter into Download mode. To do this; press and hold down the Volume Down button and connect your micro USB Cable.
  • Press the Volume Up button to continue when you see the warning message.

  • Now, connect the Samsung Galaxy J6 Plus mobile to the computer via USB cable.

  • Launch the Odin app on your computer. If the device is detected by this app (Odin), it will show you a message that reads – added!!!

ODIN Added Message

  • However, if the device is not correctly connected to the PC, you won’t see this message. So, you have to check the USB cable if it is reasonable and reconnect the device.
  • After connecting the Samsung device, click on the PDA/PA button to browse/search and get the TWRP from where you saved it on your PC. Also, navigate to “options” and Un-tick the Auto-Reboot.

Odin Auto Reboot

  • Click on “Start”

  • Once the file is loaded into the device, reboot your device.

  • Kudos, you have just Installed the TWRP on your Samsung Galaxy J6 Plus. If you installed TWRP, Don’t turn on your mobile. Immediately, move to Magisk Installation steps.

Install Magisk, no-verity-opt-encrypt, forced_encryption_disabler, and RMM State By-Pass in your Samsung Galaxy J6 Plus using TWRP

Samsung Galaxy A6 Plus 2018 TWRP

  • Boot it into recovery mode->Volume Up + Power Button.
  • Now it Will Boot into TWRP Recovery Mode.
  • Select Wipe->Advance Wipe->Select Cache Data.
  • Return to Home of TWRP select Install.

Samsung Galaxy A6 Plus 2018 Magisk no verity Installation

  • Select forced_encryption_disabler.zip.
  • Return to Home of TWRP select Install.
  • Select RMM State By-Pass.zip. Same process on no-verity-opt-encrypt and Magisk installation.
  • You should Install One by One. Don’t use add more zips feature in TWRP. After the Installation Reboot Your Mobile.
  • You can also install Magisk.apk in your Mobile Applications. no-verity-opt-encrypt is used to avoid the Encryption issue after rooting. You can check your root status using Root Checker.
  • If you didn’t find Magisk in App Drawer, you should repeat the process from OEM fix installation.

What More?

In my opinion, you don’t need rooting. If you thought, you could Improve Performance By root, With the Qualcomm MSM8917 Snapdragon 425 and 4 GB RAM, your device can perform well. If you don’t know how much RAM you need, You will never use this much RAM. You should not Boot into Normal OS Booting, by pressing the power button, after firmware flash. It will boot you to Non-Rooted environment. If you accidentally urged and boot frequently, Don’t panic, after setup everything, switch off your device and boot into Rooted OS using above mentioned keys. If you root your device, because of the battery drain issues, you can optimize your battery without root.

Source

Share This Post:

68 thoughts on “Root Samsung Galaxy J6 Plus SM-J610F/FN/G Pie 9.0 using TWRP and Magisk

  1. hola en lo personal se me hace muy confuso este tutorial y estoy empapado en el tema, ya que he echo root a mi S9, pero estaba buscando hacer root a mi j6+, por lo que empece a leer este tutorial pero se me hace confuso a la hora de instalar el twrp, o los zip o que imagen parchar no se si pueden especificar un poco mas ya que en una parte especifican convertir el archivo boot a boot.img y cuando se instala esa .img

    • Sí, este método parcheado requiere pasos adicionales. Después de que Samsung lanzó la actualización One UI Pie 9.0. Incluye algunas medidas de seguridad. Por lo tanto, no podemos rootear tu móvil directamente usando el antiguo método TWRP. También tenemos que parchear el archivo de arranque. Si lees dos veces de principio a fin, puedes conocer todos los pasos. Hicimos todo lo posible para simplificar el artículo. Pero no podemos omitir los pasos.

  2. Hello Brother, I have Samsung j6 Pus SM-j610FN

    I have Download All Files & Run Every Process As you Said, I think I did make a mistake my mobile stuck on Samsung logo. I need your help.

    First of All, I am confused about this setup. To Convert lz4 file to the .img file.
    But I don’t know about files to extract in the downloaded firm folder. I don’t have firmware; I want to root my simple for some root access asking apps that my needs.

    I have don’t know which firmware to download from where to download its very hard for me — I did all the steps.
    My mobile stuck at Samsung logo
    kindly please must reply to me my post or email because I understand only your post’s it’s easy for me
    and tell me where I made a mistake.

    • You should flash the Unpatched Three files along with the patched AP File in the first part. Or Else your mobile will not work correctly. Now, you have root access on your device. Check With Root Checker. This step is enough for using Root apps. If you want to use Custom ROM or some advanced levels, you need to flash TWRP. In this part. We Un-checked Auto-Reboot. So, We should exit download made and Boot into TWRP in the first boot. If you missed, you will lose TWRP. After that, follow the above steps and flash the required files. If you want to back to normal, Flash the Stock Firmware directly using ODIN without extracting firmware files.

      • Thanks For Your Great time & response ,First Lz4 Program not runs just open and close immediately without any notice and second thing i have installed magisk latest version And there is no Select Install in Magisk in latest version 7.3.4 ,there is no option of install ,just screen with magisk is upto date magisk manager is upto date i must want to root galaxy j6 plus “SM-610FN”

        Another Step I have tried

        1…..Download J6+ Plus Firmware and flashed in device through odin 3.13.3

        2…..and then then flashed twrp using download mode option and with odin

        3…..and then install magisk 19.4 latest version with twrp recovery ,install mode

        and then on my mobile in normal mode and find everything looks good and install magisk manager and when opens it shows magisk is upto date and magisk manager is upto date and there is no option just setting option but nothing found there only update setting and theme setting ,and then install root checker message comes that “root access not properly installed on this device …

        Can u help me In Second Step or Can You Send Me Converted lz4 image file or any other software would you like to recommend for me ,and remember that after lz4 to img step i have installed latest magisk and magisk manager installed on my device and there is no option of install etc hope you reply like already you reply me

  3. Brother Now LZ4 Program Couldn’t install i have download firmware files and extract and extract ap file also and lz4 program not install or run just open & close within milliseconds now what i can do ,i have download both win 32 & win 64 lz4 same problem in both editiions

    • Based on your PC Bit, you have to choose between 32 bit and 64 Bit after Download run the program as administrator.

  4. I patched my phone with Odin, installed Magisk Manager, downloaded the zip file, and Patch Boot Image File and Select the Boot Image file, doesn’t work.
    Also, I’m confused; you can boot your phone in boot patched and unpatched kernels?
    Do I need to disable the auto-reboot on Odin?
    I tried, but the root doesn’t work, but also, my Samsung apps don’t work because it says I tried to root.
    I’m perplexed
    I tried this tutorial before
    http://www.androidinfotech.com/samsung-galaxy-j6-plus-sm-j610f-fn-g-pie/

    only now I find out this one.

    • When you flash firmware, you don’t have to un-tick the auto-reboot. But, Here we are flashing the patched file. So, You have to Un-tik the Auto-Reboot. After the flash exit download mode and next boots into recovery mode and follow further instructions.

      • When correctly are you doing flash on magisk-patched.tar while it contains boot.img? Is it ok to install it through twrp?

          • ikr, just asking what I should do with the magisk-patched.tar file? Should I flash it with a single file for the PDA file, or should I flash all firmware files, but the original one bcz needs to replace it with the patched boot img?

  5. I have a problem, in my case is the Galaxy J6 Plus, appears written in yellow Set Warranty Bit: Recovery, and I can not enter Recovery Mode or Download Mode.
    When My Phone starts, the following message appears:
    Verification Failure
    Unable to restart the device.
    The integrity check failed.
    You must reset the device to factory default settings.
    This will erase all your data.
    But the “Reset Doesn’t Work” Button.
    I tried “Volume + Volume – Power, Volume + Power and it still doesn’t work.
    I tried to root using this tutorial.
    Root J610F
    One of the steps is to install Magisk Manager, patch a bin file, and then flash with Odin.
    But then it was to reset, and then I forgot and let the phone turn on.
    I can’t find any tutorials for my cell phone in question.

    • You have to Wipe the User data in the first Boot. Or Else this problem may occur. You should flash the same firmware file as a patched Image. Try Volume Up+ Power Button to boot into recovery mode and Wipe user data. Don’t delete System OS data.

  6. Sorry to ask too many questions. magisk manager generated magisk_patched.img instead of magisk_patched.tar
    I converted img to tar, but the problem is…
    Do I need to rename to boot.img? Because I tried to use magisk_patched.tar on Odin and doesn’t work.
    Also still doesn’t have root.
    Sorry for annoying you, I want to root my device but is complicated.

    • No Problem…:)
      We always here to help you.
      The ODIN should detect all .tar files. Change the output format in Magisk. In the settings, select “Patch Boot Output Format” and chose “.img.tar” You can rename the data of the .tar.

  7. Hello, sir, follow all your procedures, but when I flash boot.img.tar Odin fail message come and when I download boot.img.tar from XDA for 8.1.0, it can flash on android 9.0 without any error? Also, please guide me can I downgrade my j6 plus from 9.0 to 8.1.0? Also, please help me. If I have rooted j610f on 8.1.0, I checked all IMEI repair tools for Qualcomm, and all tools work correctly, but nothing changes in IMEI and can not take .qcn file;

    • Hi, Your current firmware and flash firmware version should be the same. Don’t flash other files; Your mobile will brick. Rename the file boot.img.tar into boot.tar. Try with Latest ODIN.

      • Hello, sir, I follow all steps successfully, but my j610fxxu3bl14 can not root. I successfully flash patch magisk boot.tar file and twrp also successfully. Installed magisk 20.1, nothing any error come. But root checker show root access is not installed correctly on these devices, and when I open the magisk manager app, it shows magisk is not installed, but when I install magisk 20.1.zip by twrp successfully installed, please help.

          • sir please explain Boot into standard OS because i boot normal OS and install magisk manager apk successful install and when open magisk it show that magisk manger latest ver 7.4.3 install but zip version 20.100 not install i try to install with twrp and direct install this zip but after successfully install zip each time my mobile show 20.100 latest ver not install

  8. Amigo buenos dias quiero hacerte unas preguntas de algo que no entiendo usted dice que hay aud instalar magiks en android y parchear la imagen boot extraida de la carpeta ap y convertir ese archivo boot en.img y despues parchearlo en magiks pero la pregunta es que si tengo que tener el dispositivo rooteado o no roteado antes de hacer eso y la otra es que si tengo que parchear ambos archivos el ap y el boot en el pc? y la imagen de arranque cual es ? O es la ap completa o el boot estraido?y cual es la imagen que tengo que flashear en el pc o la book patcher o el ap antes de instalar el twrp? Y despues usted dice que si no quiero recuperacion personalizada te refieres es al twrp?entonces desoues de borrar datos y restablecimoento de datos le puedo dar en reeboot system now y no se borra el archivo flasheado? Y no entiendo esto Arrancar en sistema operativo rooteado y Arranque de recuperación de existencias me puedes ayudar un poco te agradezco gracias

    • Hai, obtienes el archivo AP en el Stock Firmware extraído. Antes de actualizar el archivo AP, su móvil no será rooteado. Después de parchear usando Magisk, cuando parpadee con la ayuda de ODIN, debe flashear los otros archivos no parcheados junto con AP.

    • Currently, We can only support and make tutorials in blog format. We are working on our Youtube channel. We will surely make tutorials in future.

  9. Hola amigo, que se debe hacer con el archivo que genera magisk, el parcheado porque ya segui los pasos y no obtuve el root. acaso se debe editar el archivo ap que contiene el firmware ? incluyendole el magisk parcheado

    • Debe actualizar el archivo parcheado utilizando AP en ODIN. Junto con todos los archivos de firmware no parcheados.

      • El problema es que al momento de querer flashear el magisk_parcheado me genera un error en el odin y no deja flashearlo. La cuestion es que si se debe crear una archivo AP nuevo, como se haria antes o despues del ODIN ?

        • El archivo magisk_patched debe ser .tar. Cuando no puedes crear .tar usando magisk. puedes convertir el .img a .tar usando aplicaciones de conversión.

        • Copie el archivo parcheado a la PC y actualice el archivo parcheado utilizando AP junto con el otro firmware no parcheado.

    • This method is based on TWRP. When you are successfully flashed TWRP and Magisk, the regular boot is rooted OS. It is not like Magisk only method.

  10. Bonjour, je ne comprends pas la partie concernant LZ4. J’ai téléchargé la bonne version en fonction de l’architecture de mon processeur. Peux-tu être plus explicite sur la procédure à suivre pour l’extraction du fichier .lz4 ?

    • Vous pouvez extraire le fichier .lz4 en utilisant 7zip ou winrar. Après avoir extrait le .lz4, faites glisser ce fichier vers l’application LZ4 pour le convertir en .img.

  11. Sir, I’m sorry, but this tutorial is confusing when you get the patched-boot.img what you should do after?
    These explained to browse all firmware files with a picture of all data are already selected, and none of these is patched file. Then what’s the point you create a patched boot file?

  12. Bro, I just confused. Copy magisk_patched.tar file to your PC. OK I have copied, and now you have flashed the firmware then whee the patched.tar file used

  13. I have flashed magisk.zip v20.4 three times with twrp recovery. But nothing happened. I am not getting root access on my device. And magisk manager is showing not installed on its first page. Please help me brother, to root my phone.

  14. amigo una ayuda en este escrito Después de ingresar al modo de recuperación de stock, vaya a Borrar datos / Restablecimiento de fábrica y seleccione Sí para borrar datos. Borrará sus datos guardados en su dispositivo. No arranque en el sistema operativo, lea a continuación las etapas de arranque antes de arrancar. Si no necesita Recuperación personalizada, puede omitir el siguiente paso. Ya tienes rooteado el móvil. Pero, si desea TWRP para flashear ROM personalizadas, puede pasar al Paso 2 la pregunta es que si yo quiero recovery personalizado tengo que igualmanera borrar datos de fabrica?muchas gracias espero tu respuesta

  15. muchas gracias ya convertí el archivo boot en magis y se parcheó pero no me aparece como.tar sino como img como hago para que me quede en.tar gracias por tu colaboracion

  16. Hola, amigo queria saber un par de cosas…
    La primera es ¿Qué pasa si estoy en la version 9.0 de android y quiero devolverme a la version 8.1, hay algun riesgo de que mi telefono obtenga “Brick”?
    La otra pregunta es ¿Por qué cuando intente rootear mi telefono en la version 8.1, este obtuvo “Brick” instale todo bien aunque pienso que el fallo estuvo cuando intente actualizar el Magisk Manager desde el modo recovery, ya que este no me funcionaba, cuando intente entrar en modo recovery mi telefono se “Brickeó” y no se por que.
    Espero y me respondas. Gracias.

    • Si desea la versión Oreo, puede actualizar el firmware con ODIN. Habrá menos posibilidades de ladrillo. La versión de pastel TWRP funcionará bien. ¿Puedes mencionar tu número de modelo?

  17. Bro, I cant understand. I got the patched boot img file converted it to tar, but then where do I save it?
    If you could reply fast, it would be much appreciated.
    I am following your steps and rooting the device now.

  18. hola. hago todo el proceso conforme con la guia de twrp y todo funciona bien sin ningun error instalando magisk 20 zip pero al encender no esta roteado

  19. Si pudieran hacer un video seria mucho mejor los pasos son un poco confusos.
    Estaba intentando con varios metodos pero no funcionan.

  20. I am confused. Am I right in saying there are two ways of rooting one by magisk alone and another by TWRP and magisk. Please detail the magisk alone method.

  21. Hi,
    After installing twrp recovery, I keep getting set warranty kernel in yellow with a reboot loop (i already tried clearing cache and user data).
    Any help
