Root Samsung Galaxy M31s SM-M317F Android 11 using TWRP and Magisk

by Selva Kumar A Leave a Comment

The days where everyone roots their mobile to get the needed hardware resources is over. Recent mobiles come with enough hardware resources, even in entry-level mobiles. But, Still, the feature need gap between users and mobile companies is increasing. The features that are available in root apps are unique. When we begin to use those features, We can’t satisfy the basic features available in the Play Store. Samsung Galaxy M31s comes with Exynos 9611 and 6-8 GB of RAM. This mobile already got Android 11 based One UI 3.0, and it can handle any heavy apps and updates. But when you are a regular root apps user or developer, you can root your Samsung Galaxy M31s Android 11 version using the below method. Since we will use TWRP in this process, You can install any compatible custom ROMs too.

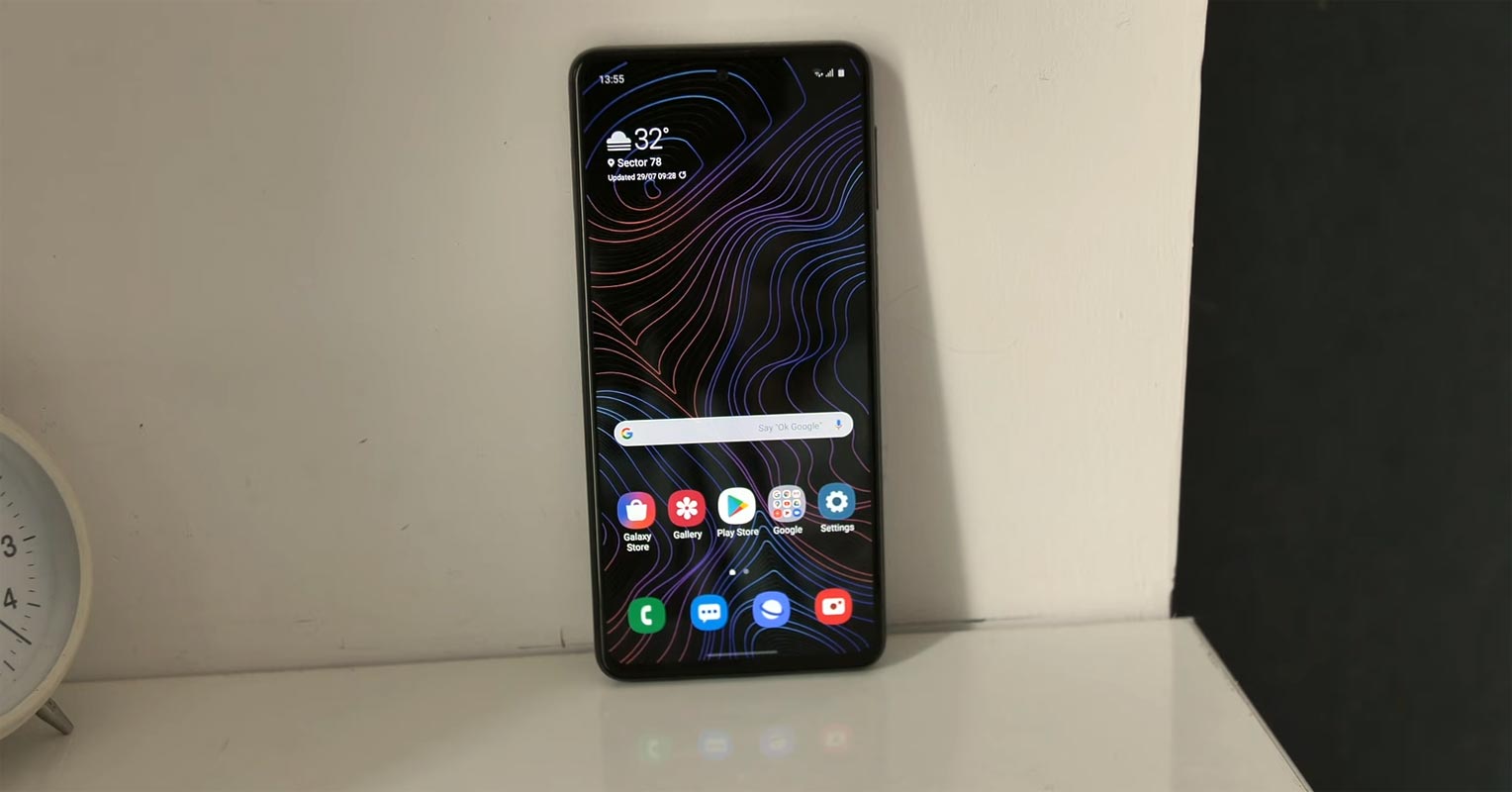

Samsung Galaxy M31s Android 11 Home Screen

Compared with standard other root methods, this method has additional steps. So, You should care a little bit when you do the process. Since it doesn’t use a custom recovery, You can’t install custom ROMs. But, It is enough to run most of the root apps.

After root, you will lose official updates, and you have to update your mobile manually. So, Before proceeding with the process, you should know why you need to do it. If you are a regular user, you can try some alternatives for your purpose that don’t require root. When you are a regular root apps user and developer, you can follow the below guide to achieve root on your mobile.

Buy Samsung Galaxy S22 Ultra from $6.46/mo for 24 Months with Eligible Trade-In.
Samsung Galaxy S23 available for $0.00/mo with T-Mobile Credit and Trade-in Deal

Table of Contents

  • Should you need to Root your Samsung Galaxy M31s SM-M317F Android 11 version?
  • How to Root Samsung Galaxy M31s SM-M317F Android 11 One UI 3.0
    • Things to check out for;
    • 1. Unlock Bootloader
    • 2. Download Necessary files
    • 3. Flash Vbmeta Disabled using ODIN
    • 4. Flash Samsung Galaxy M31s firmware files along with Vbmeta Disabled using ODIN
    • 5. Flash TWRP File using ODIN
    • 6. Install Magisk and Multi Disabler in your Samsung Galaxy M31s using TWRP
  • What More?

Should you need to Root your Samsung Galaxy M31s SM-M317F Android 11 version?

It would be best if you had a strong reason for rooting. Samsung Galaxy M31s already comes with One UI 3.0 based on Android 11 and is optimized. You have More than Enough 4-8 GB RAM to use daily apps without lag for years. Yes, I Know; RAM maybe look like not enough because of the Samsung Heavily customized OS. But, Trust me, One UI is far better than other Custom Skin OS. You can use this device without lag for years until Samsung mess with some Bloatware. But beyond, this not go reasons you are addicted to some root apps, or you are a frequent user of some Custom OS, you can proceed further. But if you want to root because everybody is doing it, I advise you, don’t root If you don’t have any experience. For regular users, It can become a Nightmare.

Also Read-  Root Samsung Galaxy M33 5G Android 12 SM-M336B/BU/K using Magisk

How to Root Samsung Galaxy M31s SM-M317F Android 11 One UI 3.0

Thanks to the developer- afaneh92 for the Root method and topjohnwu – this genius is the one who discovered and maintained Magisk. Samsung Galaxy M31s variants come with a flexible bootloader in some regions. It means that We can easily root the smartphone, and the device can also accept installing TWRP recovery or any other custom recovery file/app. Don’t try with Snapdragon US Variants like Verizon devices, and they come with a locked Bootloader.

But In the below method, we are going to Root this device by using Magisk. You can install Official TWRP using the official app when it is released. TWRP recovery is a custom recovery file that we must install on your devices to root them successfully. This article explained the easiest method to follow and install Magisk on Samsung Galaxy M31s. However, the tool required for rooting this device is the Magisk App.

You can flash TWRP once it is available. With the help of TWRP Recovery, you can quickly flash the Custom ROMs into your Samsung Galaxy M31s. Before sharing the tutorial, you may want to know that you can easily install any root apps with the Magisk present on your device. Does it seem complicated? Relax; We will explain everything briefly in bullets.

Things to check out for;

  • Check your device model number.

  • You should back up your current files and data- Full Data Loss Process (save them on external storage).
  • Install Latest Magisk Manager.
  • Make sure your device battery is above 50%

  • You cannot use Samsung Pay, Secured folder, and some official apps from Samsung.
  • You can’t update your firmware; to get new firmware, you must follow the below steps with the latest firmware.
  • Read the full tutorial before the process.

1. Unlock Bootloader

Enabling developer option

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this, go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode and OEM Unlock. There is no complicated process in the Samsung Galaxy M31s.

samsung galaxy m31s download mode

  • Switch off your device. Enter into Download Mode-> Volume Down+ Power Button and Connect your mobile with PC using USB Cable. When the Download mode warning screen Appears, Press the Volume Up button to unlock Bootloader.

Samsung Galaxy M40 Download Mode Warning Screen

  • The above process will wipe your user data. After setup your device, Please recheck the OEM Unlock in the settings, and sometimes It Will Lock Again.

2. Download Necessary files

  • Download and install the Samsung USB driver to your computer system.

  • Also, download the ODIN software. Select the above Oreo version in the ODIN list. Install ODIN on your PC.

  • Download Samsung Galaxy M31s Android 11 Firmware and save it on your PC. Your Current OS version and Downloaded Version AP and CSC should be the Same.
  • You can use Phone Info to know your firmware version.
  • Download 7Zip-ZS, LZ4, and Install both on your PC. Extract the files in downloaded firmware using 7Zip-ZS. You will get four files.
  • Download Samsung-galaxy-twrp-3-5-2_10-1_afaneh92-m31s.tar and copy it to your PC. And Download multidisabler-Samsung-2.6a.zip and copy this file to your mobile external storage.
Also Read-  Root Samsung Galaxy A72 4G LTE SM-A725F/M Android 11 using TWRP and Magisk

3. Flash Vbmeta Disabled using ODIN

  • Download Vbmeta Disabled.tar.
  • Unlock your screen lock. There should be no fingerprint, PIN Lock, Wipe. Set No lock in the settings.
  • Switch off your Mobile. Enter into Download mode->Volume Down+ Volume Up Buttons and Connect Your Mobile To PC via USB Cable; after Samsung Logo Appear, Release all keys.

Samsung J4 Plus Warning screen

  • After entering into Download Mode, it will say Warning; press the Volume Up button to continue.
  • Launch Odin Application.

ODIN Added Message

  • It Will Show the message added.
  • If you did not get this message, Repeat the above steps.

Odin Startup Home Page

  • After Getting Added Message Select, USERDATA Button, then Browse for the Vbmeta Disabled file, select it. Un-Tick the Auto-Reboot.

Un-Tick Auto reboot ODIN

  • Press Start wait for the tasks to complete. After the process is complete, Press the Volume Down+ Power button to exit Download mode. When the screen goes off, Immediately Press the Volume Up+ Power buttons to boot into Recovery mode.

samsung galaxy m31s recovery mode

  • After entering into Stock recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase your saved data on your device. Even if we flash the Vbmeta disabled, It is safe to flash the full firmware along with the Vbmeta Disabled.

Samsung Galaxy M10 Recovery Mode Warning Screen

4. Flash Samsung Galaxy M31s firmware files along with Vbmeta Disabled using ODIN

  • Switch off your Mobile. Enter into Download mode->Volume Down+ Volume Up Buttons and Connect Your Mobile To PC via USB Cable; after Samsung Logo Appear, Release all keys.

Samsung J4 Plus Warning screen

  • After entering into Download Mode, it will say Warning; press the Volume Up button to continue.
  • Launch Odin Application.

ODIN Added Message

  • It Will Show the message added.
  • If you did not get this message, Repeat the above steps.

Odin Startup Home Page

  • We have already downloaded the firmware files. When you extract the files, You will get five files.

Samsung Galaxy Extracted Firmware Files

  • After Getting Added Message on ODIN Select, AP button, and choose AP file from firmware. The same goes for other files too. But when you choose CSC, You have to select the Home_CSC file. In the USERDATA Button, then Browse for the Vbmeta Disabled file select it. So, We have five files selected for five tabs. Un-Tick the Auto-Reboot.

Un-Tick Auto reboot ODIN

  • Press Start wait for the tasks to complete. After the process is complete, Press the Volume Down+ Power button to exit Download mode.

5. Flash TWRP File using ODIN

samsung galaxy m31s download mode

  • Connect your USB cable with your PC. Switch off your device. Then, enter into Download mode. To do this, press and hold down the Volume Down+ Volume Up buttons and connect your micro USB Cable.

Samsung Galaxy M40 Download Mode Warning Screen

  • Press the Volume Up button to continue when you see the warning message.

  • Now, connect the Samsung Galaxy M31s mobile to the computer via USB cable.

  • Launch the Odin app on your computer. If this app detects the device (Odin), it will show you a message that reads – added!!!

ODIN Added Message

However, if the device is not correctly connected to the PC, you won’t see this message. So, you have to check the USB cable to see if it is reasonable and reconnect the device.

  • After connecting the Samsung device, click on the PDA/PA button to browse/search and get the TWRP from where you saved it on your PC. Also, navigate to “options” and Un-tick the Auto-Reboot.

Also Read-  Root Motorola Moto One Fusion+ Android 10 using TWRP and Install Magisk

Odin Auto Reboot

  • Click on “Start”

  • Once the file is loaded into the device, Don’t reboot your device.

  • Kudos, you have just Installed the TWRP on your Samsung Galaxy M31s. If you installed TWRP, Don’t turn on your mobile. Immediately, move to Magisk Installation steps. You can do this by Pressing Volume Down+Power to exit download mode, then Pressing Volume Up+ Power to enter into recovery mode.

samsung galaxy m31s recovery mode

6. Install Magisk and Multi Disabler in your Samsung Galaxy M31s using TWRP

TWRP Installation Screen

  • Boot it into recovery mode->Volume Up + Power Button.
  • Now it Will Boot into TWRP Recovery Mode.
  • Select Wipe->Advance Wipe->Select Cache and User Data.
  • Return to Home of TWRP select Install.
  • Select multidisabler-Samsung-2.6a.zip.
  • Return to Home of TWRP select Install.
  • Select Magisk.zip file.
  • You should Install One by One. Don’t add more zips feature in TWRP. After the Installation, Reboot Your Mobile.
  • You can also install Magisk.apk in your Mobile Applications. An encryption Disabler is used to avoid the Encryption issue after rooting. You can check your root status using Root Checker.

What More?

In my opinion, you don’t need to root your Samsung Galaxy M31s Android 11 version. If you thought you could Improve Performance By root; With the Exynos 9611 Octa-Core processor and 6-8 GB RAM. If you don’t know how much RAM you need, You will never use this much RAM. It would help if you did not Boot into Normal OS Booting by pressing the power button after firmware flash, and it will boot you to a Non-Rooted environment.

When you accidentally urge and boot frequently, Don’t panic; after setup everything, switch off your device and boot into Rooted OS using above mentioned keys. If you root your device because of the battery drain issues, you can optimize your battery without root. Beyond this, if your purpose is to Disable Bloatware apps, you can do that without using this method. If you have any suggestions or doubts, comment below.

Source, (2)
