Root Samsung Galaxy S20 FE Fan Edition SM-G780F Exynos Android 10 using Magisk

The problem with branded mobile is maintaining good quality and after-sales support; they can’t cut down on mobile costs. So, They have heavy competition in the mid-range and budget flagship range. But Samsung always comes with new idea S20 FE is one of those ideas. It is an affordable flagship mobile. The hardware and software specs are great. So, You don’t need root permissions to optimize the apps manually. But when you are a developer or regular root apps user, you can root your Samsung Galaxy S20 FE Fan Edition Exynos Android 10 version. We are not using TWRP in this method. So, You can’t install custom ROMs.

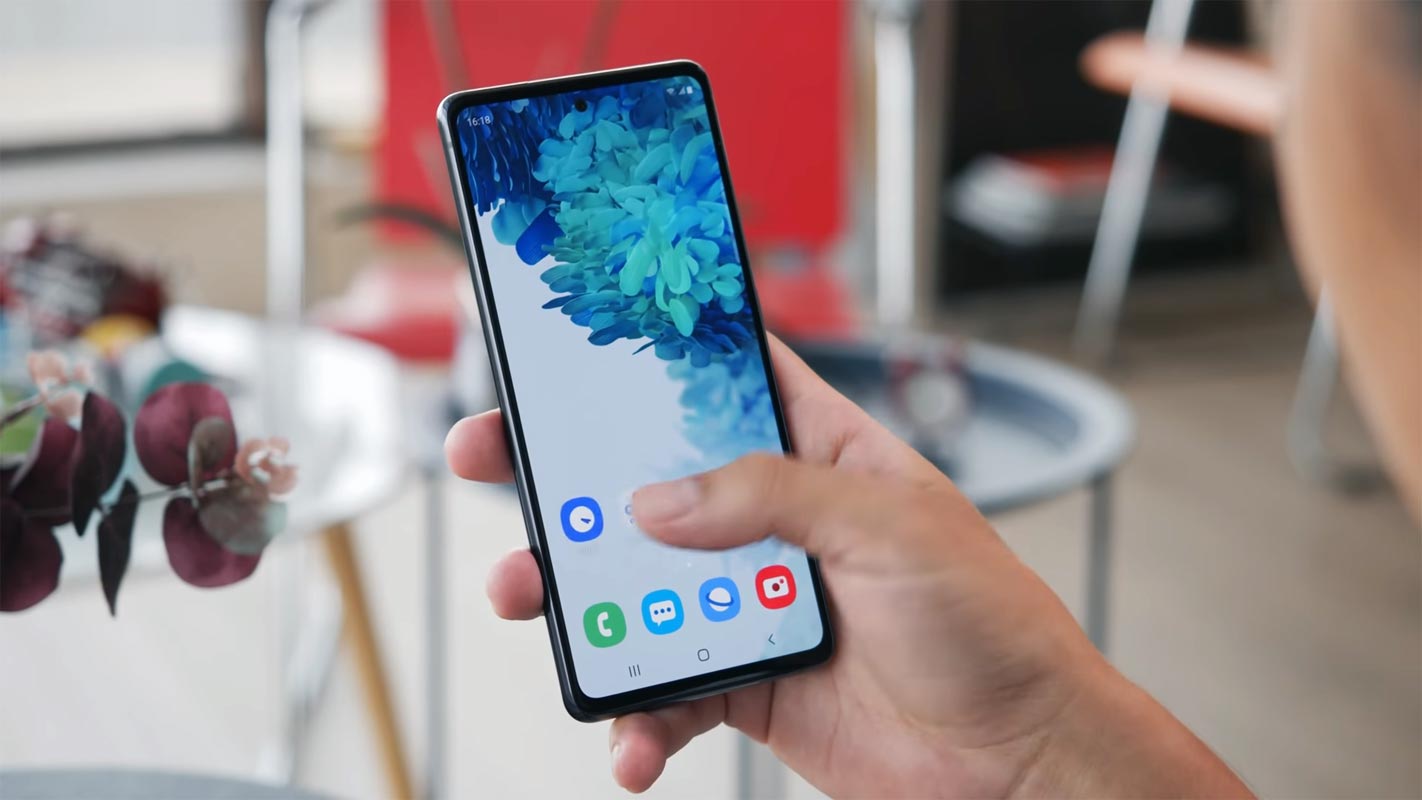

Samsung Galaxy S20 FE 4G Unlocked Home Screen

After root, you will lose official updates. You have to update your mobile manually. So, Before proceeding with the process, you should know why you need to do it. If you are a regular user, you can try some alternatives for your purpose that don’t require root. When you are a regular root apps user and developer, you can follow the below guide to achieve root on your mobile.

Should you need to Root your Samsung Galaxy S20 FE Fan Edition Exynos Android 10 version?

It would be best if you had a strong reason for rooting. Samsung Galaxy S20 FE Fan Edition Exynos already comes with One UI 2.5 based on Android 10 and is already optimized. You have More than Enough 6/8 GB RAM to use daily apps without lag for years. Yes, RAM is more than enough, even with the Samsung Heavily customized OS. But, Trust me, One UI is far better than other Custom Skin OS. You can use this device without lag for years until Samsung mess with some Bloatware. But beyond, this not go reasons you are addicted to some root apps, or you are a frequent user of some Custom OS, you can proceed further. But if you want to root because everybody is doing, I advise you, don’t root If you didn’t have any experience. For regular users, It can become a Nightmare.

How to Root Samsung Galaxy S20 FE Fan Edition SM-G780F Exynos Android 10 One UI 2.5

Thanks to the developer tadasu for finding the root method and topjohnwu – this genius is the one who discovered and maintained Magisk. Samsung Galaxy S20 FE Fan Edition Exynos International variants come with a flexible bootloader. It means that the smartphone can be easily rooted. The device can also accept installing TWRP recovery or any other custom recovery file/app. Don’t try with Snapdragon US Variants like Verizon devices. They come with a locked Bootloader.

Also Read-  Download Samsung Galaxy A32 5G SM-A326U Aio Cricket Wireless USA Android 11 One UI 3.1 Stock Firmware (Carrier Locked)

But In the below method, we are going to Root this device by using Magisk. You can install Official TWRP using the official app when it is released. TWRP recovery is a custom recovery file that must be installed on your devices because you can root them successfully. This article explained the easiest method to follow and install Magisk on Samsung Galaxy S20 FE Fan Edition Exynos. However, the tool required for rooting this device is the Magisk App.

You can flash TWRP once it is available. With the help of TWRP Recovery, you can quickly flash the Custom ROMs into your Samsung Galaxy S20 FE Fan Edition Exynos. Before sharing the tutorial, you may want to know that you can easily install any root apps with the Magisk present on your device. Does it seem complicated? Relax, everything will be explained briefly in bullets.

Things to check out for;

  • Check your device model number.

  • You should back up your current files and data- Full Data Loss Process (save them on external storage).
  • Install Latest Magisk Manager.
  • Make sure your device battery is above 50%

  • You cannot use Samsung Pay, Secured folder, and some official apps from Samsung.
  • You can’t update your firmware; to get new firmware, you must follow the below steps with the latest firmware.
  • Read the full tutorial before the process.

1. Unlock Bootloader

Enabling developer option

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this, go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode and OEM Unlock. There is no complicated process in the Samsung Galaxy S20 FE Fan Edition.

Samsung Galaxy S20 FE Fan Edition Download Mode

  • Switch off your device. Enter into Download Mode-> Volume Down+ Power Button and Connect your mobile with PC using USB Cable. When the Download mode warning screen Appears, Press the Volume Up button to unlock Bootloader.

Samsung Galaxy Bootloader Warning Screen

  • The above process will wipe your user data. After setup your device, Please recheck the OEM Unlock in the settings. Sometimes It Will Lock Again.

2. Preparing Patched AP.tar file

  • Download and install the Samsung USB driver to your computer system.

  • Also, download the ODIN software. Select the above Oreo version in the ODIN list. Install ODIN on your PC.

  • You can use Phone Info to know your firmware version.
  • Download 7Zip-ZS and Install it on your PC. Extract the files in downloaded firmware using 7Zip-ZS. You will get four files (You will get Five files. CSC file is compatible with this process, So we drop Home CSC files).
Also Read-  Root Samsung Galaxy J7 Duo SM-J720F/M Oreo 8.0 using TWRP

Samsung Galaxy Extracted Firmware Files

  • Copy the AP File to your mobile.
  • Download Magisk Manager (Download Latest version) or Magisk canary and Install it on your mobile. Open Installed Magisk and Select Install in Magisk; it will ask For a zip file and Patch Boot Image File. Select the AP file.

Magisk Boot Image File

  • Navigate to your copied Boot Image File and patch the file.

Magisk Firmware Patch Process

  • Wait for the process to complete; in the end, you will get a magisk patched .tar file. The .tar file will be in the same folder where you have the Stock firmware file. If you didn’t get the .tar and you got the .img file. No problem. Copy this file to your PC. We can convert the data there.

Convert magisk patched tar file

  • When you get the .img file, Open the installed 7zip app. Navigate the magisk patched img file and select Add, Choose .tar format and choose ok. Convert only AP file. You will get the AP.tar file.

3. Flash Patched AP.tar along with other firmware files using ODIN

  • Due to Samsung’s new security restrictions, we can’t flash the AP file with Stock Boot on your mobile. So, we have to flash a patched AP using ODIN.
  • Unlock your screen lock. There should be no fingerprint, PIN Lock, Wipe. Set No lock in the settings.
  • Switch off your Mobile. Enter into Download mode->Volume Down+ Power Buttons and Connect Your Mobile To PC via USB Cable; after Samsung Logo Appear, Release all keys.

Samsung J4 Plus Warning screen

  • After entering into Download Mode, it will say Warning; press the Volume Up button to continue.
  • Launch Odin Application.

ODIN Added Message

  • It Will Show the message added.
  • If you did not get this message, Repeat the above steps.

ODIN software screenshot

  • After Getting Added Message Select, AP/PDA Button, then Browse for the patched Magisk AP.tar file, select it. Along with this file, you should choose and flash the other three non-patched firmware files. Un-Tick the Auto-Reboot.

Un-Tick Auto reboot ODIN

  • Press Start wait for the tasks to complete. After the process complete, the Press the Volume Down+ Power button to exit Download mode. When the screen goes off, Immediately Press the Volume Up + Volume Down+ Power buttons to boot into Recovery mode.
Also Read-  Download Samsung Galaxy Note 10 Lite SM-N770F Android 10 One UI 2.0 Stock Firmware

Samsung Galaxy S20 FE Fan Edition Recovery Mode

  • After entering into Stock recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase your saved data in your device. Don’t Boot into OS. Read below Boot stages before booting.

Samsung Galaxy M10 Recovery Mode Warning Screen

Boot into Rooted OS

  • Press and Hold Volume Up + Power buttons, release all the keys once the Bootloader warning appears. You have to set up your device like a new device. You can check the root status using the Root Checker.
  • Stock Recovery Boot – Press and Hold Volume Up + Power buttons, release keys while you hold the Volume Up key.
  • You will see Magisk Manager in your App drawer. If you can’t find the app, you can install Magisk Manager on your mobile.

What More?

In my opinion, you don’t need to root your Samsung Galaxy S20 FE Fan Edition Exynos Android 10. If you thought you could Improve Performance By root; With the Exynos 990 Octa-Core processor and 6/8 GB RAM, your device can perform well. If you don’t know how much RAM you need, You will never use this much RAM. It would help if you did not Boot into Normal OS Booting by pressing the power button after firmware flash. It will boot you to a Non-Rooted environment.

When you accidentally urged and boot frequently, Don’t panic; after setup everything, switch off your device and boot into Rooted OS using above mentioned keys. If you root your device because of the battery drain issues, you can optimize your battery without root. Beyond this, if your purpose is to Disable Bloatware apps, you can do that without using this method. When you have any suggestions or doubts, comment below.

Source, (2)
