Root Samsung Galaxy M20 SM-M205F/G/M/N Android 10 using Magisk

Whenever a new Android version released, Google and manufacturers add plenty of security measures. It is best for users. But, Also, it makes it difficult for the developing process from the user side like Rooting and making custom ROMs. After the Android 10 version due to a lot of measures from the core side, The usual TWRP method takes too time and complicated. Thanks to the Magisk method, We can get root access, and we don’t have to wait for the TWRP development. But, The process has additional steps, and It doesn’t allow us to use Custom ROMs. Samsung Galaxy M20 already got One UI 2.0 based Android 10 update. Your mobile has already optimized OS. If you are a regular user, You don’t need root to tune manually. When you are a developer or regular root apps user, you can use the below method to achieve rooting on your mobile.

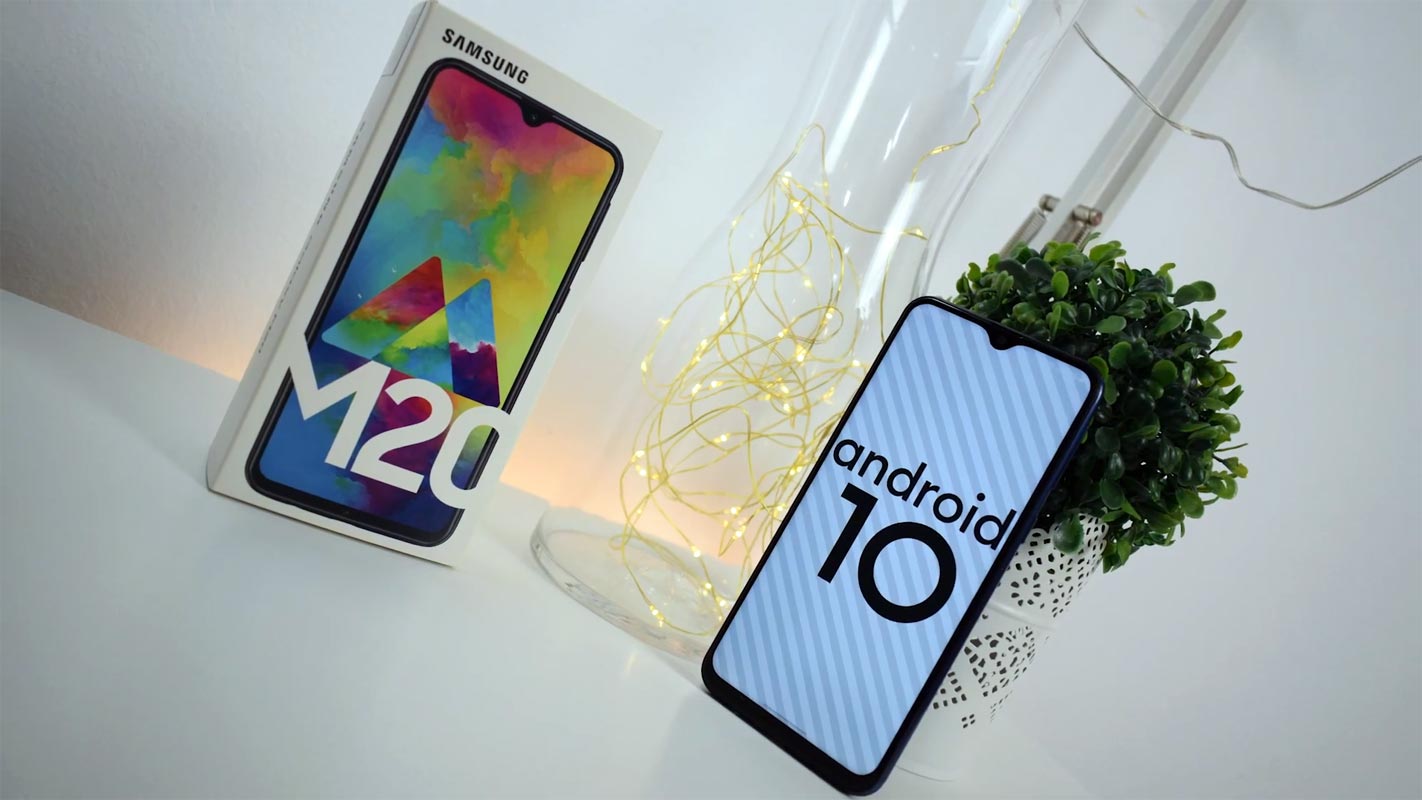

Samsung Galaxy M20 with Android 10 Easter Egg Animation

Why should you Root Samsung Galaxy M20?

You should have a strong reason for rooting. Samsung Already released One UI 2.0 based on Android 10 and is already optimized. You have More than Enough 3/4 GB RAM to use daily apps without lag for years. Yes, I Know, RAM maybe looks like not enough because of the Samsung Heavily customized OS. But, Trust me, One UI is far better than other Custom Skin OS. You can use this device without lag for years until Samsung mess with some Bloatware. But beyond, this not go reasons, you are addicted to some root apps, or you are a frequent user of some Custom OS, you can proceed further. But if you want to root because everybody is doing, I advise you, don’t root If you didn’t have any experience. For regular users, It can become a Nightmare.

How to Root Samsung Galaxy M20 Android 10 One UI 2.0 (SM-M205F, SM-M205FN, SM-M205G, SM-M205M, SM-M205N)

First of all, thanks to the developer for the Root method. topjohnwu – this genius is a one who discovered and maintaining Magisk. Samsung Galaxy M20 International variants come with a flexible bootloader. This means that the smartphone can be easily rooted. Also, the device can accept to install TWRP recovery or any other custom recovery file/app alike. Don’t try with Snapdragon US Variants like Verizon devices. They come with a locked Bootloader.

But In the below method, we are going to Root this device by using Magisk. You can install Official TWRP using the official app when it is released. TWRP recovery is a custom recovery file that must be installed on your devices because you can root them successfully. In this article, we explained the easiest method to follow and install Magisk on Samsung Galaxy M20. However, the tool required for rooting this device is the Magisk App.

You can flash TWRP once it is available. With the help of TWRP Recovery, you can quickly flash the Custom ROMs into your Samsung Galaxy M20. Before sharing the tutorial, you may want to know that, with the Magisk present on your device, you can easily install any root apps. Does it seem complicated? Relax, everything will be explained succinctly in bullets.

Things to check out for;

  • Check your device model number.

  • Install Latest Magisk Manager.
  • Make sure your device battery is charged above 50%

  • Backup your current files and data- Full Data Loss Process (save them on external storage).

  • You cannot use Samsung Pay, Secured folder, and some official apps from Samsung.
  • You can’t update your firmware, to get new firmware you have to follow the below steps with the latest firmware.
  • Read the full tutorial before the process.

Pre-Requirement Steps

Unlock Bootloader

Enabling developer option

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this; go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode and OEM Unlock. There is no complicated process in the Samsung Galaxy M20.

Samsung Galaxy M20 Download Mode Type C

  • Switch off your device. Enter into Download Mode-> Volume Down+ Power and Connect your mobile with PC using USB Cable. When Download mode warning screen Appears, Press Volume Up button to unlock Bootloader.

Samsung Galaxy Bootloader Warning Screen

  • The above process will wipe your user data. After setup your device, Please recheck the OEM Unlock in the settings. Sometimes It Will Lock Again.

Preparing Patched Boot Image file

  • Download and install the Samsung USB driver to your computer system.

  • Also, download the ODIN software. Select the above Oreo version in the ODIN list. Install ODIN on your PC.

  • Download Samsung Galaxy M20 Firmware and save it on your PC. Your Current OS version and Downloaded Version AP and CSC should be the Same.
  • You can use Phone Info to know your firmware version.

Samsung AP Extracted files

  • Download 7Zip-ZS, LZ4, and Install both on your PC. Extract the files in downloaded firmware using 7Zip-ZS. You will get four files. Click on the AP File and Extract again. You will get some data along with the boot.img.lz4.

Convert lz4 file to img

  • Copy the boot.img.lz4 to LZ4 Installed folder. Convert lz4 file to .img file by dragging the .img file to the lz4 application file. You have to drag the file to that application. The script will automatically convert the file to .img format. After the convert, Copy boot — img file to your mobile.
  • Download Magisk Manager (Download Latest version) or Magisk canary and Install it on your mobile. Open Installed Magisk and Select Install in Magisk; it will ask For zip file and Patch Boot Image File. Select the Boot Image file.

Magisk Boot Image File

  • Navigate to your copied Boot Image File and patch the file.

Magisk Firmware Patch Process

  • Wait for the process to complete, In the end, you will get magisk patched .tar file. The .tar file will be in the same folder where you have the Stock firmware file. If you didn’t get the .tar and you got .img file. No problem. Copy this file to your PC. We can convert the data there.

Convert magisk patched tar file

  • When you get .img file, Open the installed 7zip app. Navigate the magisk patched img file and select Add. Choose .tar format and choose ok. Now we got ODIN flashable .tar file.

Flash Patched Boot Image using ODIN

  • Due to Samsung’s new security restrictions, we can’t flash TWRP with Stock Boot on your mobile. So, we have to flash a patched boot using ODIN.
  • Unlock your screen lock. There should be no fingerprint, PIN Lock, Wipe. Set No lock in the settings.
  • Switch off your Mobile. Enter into Download mode->Volume Down+ Volume Up Buttons and Connect Your Mobile To PC via USB Cable, After Samsung Logo Appear, Release all keys.

Samsung J4 Plus Warning screen

  • After entering into Download Mode, it will say Warning, Press Volume Up button to continue.
  • Launch Odin Application.

ODIN Added Message

  • It Will Show the message added.
  • If you did not get this message, Repeat the above steps.

ODIN software screenshot

  • After Getting Added Message Select, AP/PDA Button, then Browse for the patched Magisk .tar file select it. Along with this file, you should not select and flash the other three non-patched firmware files. We have to flash only the magisk patched boot image file. Un-Tick the Auto-Reboot.

Odin Auto Reboot

  • Press Start wait for the tasks to complete. After the process complete, Press Volume Down+ Power button to exit Download mode. When the screen goes off, Immediately Press Volume Up+ Volume Down + Power buttons to boot into Recovery mode.

Samsung Galaxy M20 Recovery Mode

  • After entering into Stock recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase your saved data in your device. Don’t Boot into OS, Read below Boot stages before booting.

Samsung Galaxy M10 Recovery Mode Warning Screen

Boot into Rooted OS

  • Press and Hold Volume Up + Power buttons, release all the keys once the Bootloader warning appears. You have to set up your device like a new device. You can select the root status using the Root Checker.
  • Stock Recovery Boot – Press and Hold Volume Up + Power buttons, release keys while you hold the Volume Up key.
  • You will see Magisk Manager in your App drawer. If you can’t find the app, you can install Magisk Manager on your mobile.

What More?

In my opinion, you don’t need rooting for your Samsung Galaxy M20. If you thought you could Improve Performance By root; With the Exynos 7904 Octa-Core processor and 3/4 GB RAM, your device can perform well. If you don’t know how much RAM you need, You will never use this much RAM. You should not Boot into Normal OS Booting, by pressing the power button, after firmware flash. It will boot you to a Non-Rooted environment. If you accidentally urged and boot frequently, Don’t panic, after setup everything, switch off your device and boot into Rooted OS using above mentioned keys. If you root your device, because of the battery drain issues, you can optimize your battery without root. Beyond this, if your purpose is to Disable Bloatware apps, you can do that without using this method. When you have any suggestions or doubts, comment below.

Source, (2)

Share This Post:

9 thoughts on “Root Samsung Galaxy M20 SM-M205F/G/M/N Android 10 using Magisk

  1. I have followed every single one of your instruction and worked perfectly until the Flashing the modified AP file in ODIN v3.14
    It won’t flash…
    Added!!
    Odin engine v(ID:3.1401)..
    single download.
    magisk_patched.img
    it got to that part and just stuck there for about 2 Minutes. I think I messed something up and then decided to press Volume Down + Power to cancel the download…
    Do you have any suggestions?

    • If you are confident, you are flashing the correct patched .tar file, Try again. Sometimes it can happen—Run ODIN as Administrator.

    • I was also getting the same error as you. Just rename the “magisk_patched.img” to “boot.img” and then convert it to a tar file. It worked for me.

      I hope this will work for you

    • We will try our best. But currently, we can’t assure you. If you have any doubts about the guide we are happy to help you.

  2. Hi, I tried flashing TWRP in my Samsung galaxy m20 device, but I stuck in the boot loop, and it’s not even booting into recovery mode and download mode. When I’m charging my device, it keeps on boot looping help me to get out of it. Once I boot into the recovery mode or download mode, I can fix this, but I can get out of this.

    • Press the Power Button for 10-15 seconds. When it foes off, Try to boot into recovery and wipe user data. You should check that you flash the correct file or not.
