Root Samsung Galaxy S20 Exynos SM-G980F Android 10 using TWRP and Magisk

by Selva Kumar A Leave a Comment

Even if International Exynos processor Samsung mobiles are not welcome by some users, The benefit of having International variants is it is not bootloader locked, and you can root your mobile as usual compare with other variants. Also, you will receive fast OTA updates. Samsung Galaxy S20 International variant G980F comes with an Exynos processor. Thus we can root your Samsung Galaxy S20 Exynos Android 10 version with few additional steps. After the Pie version, most of the Android mobile manufacturers begin to tighten the security of the bootloader. But fortunately, unlocked models need only a few steps to unlock the bootloader. The following method is suitable for both One UI 2.0 and 2.5. All you have to do is select the correct file for your version. The way is only for Exynos processors. Don’t try with Snapdragon variants.

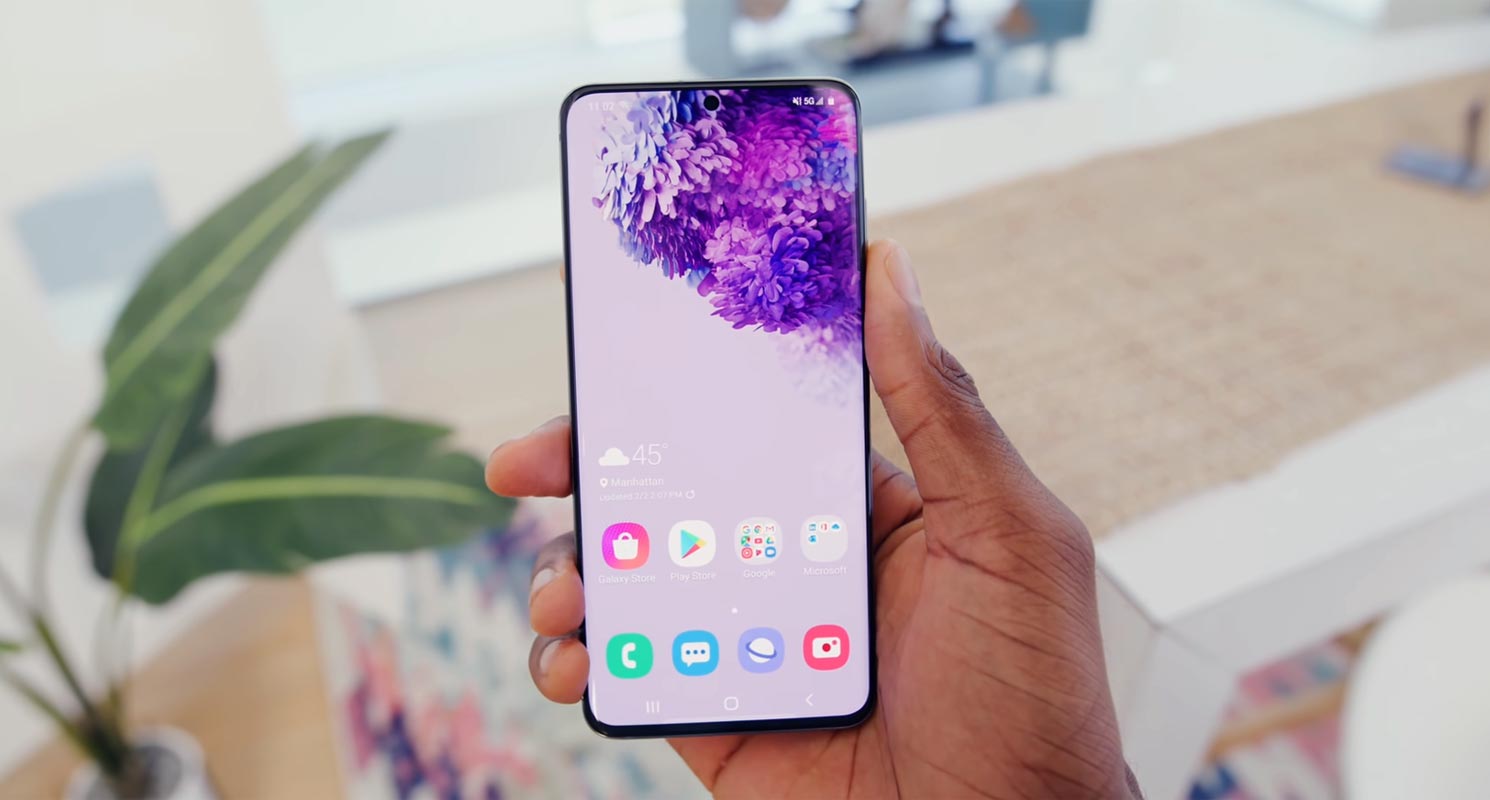

Samsung Galaxy S20 Home Screen in hand

After One UI release Samsung optimized mobiles well with the software. But when you feel you need to use root required apps or more control on your mobile, you can root your mobile using the below method. When you are a regular user, instead of rooting, you can try some alternative apps.

Table of Contents

  • Did you need to Root Samsung Galaxy S20 Exynos in the Android 10 version?
  • How to Root Samsung Galaxy S20 Exynos Android 10 One UI 2.0 (SM-G980F)
    • Things to check out for;
    • 1. Pre-Requirement Steps
      • Unlock Bootloader
      • Downloadable files
    • 2. Flash TWRP using ODIN
    • 3. Install Magisk, Encryption Disabler, and OEM Fix in your Samsung Galaxy S20 using TWRP
  • What More?

Did you need to Root Samsung Galaxy S20 Exynos in the Android 10 version?

It would be best if you had a strong reason for rooting. Samsung Already released One UI 2.0/2.5 based on Android 10 and is already optimized. You have More than Enough 8 GB RAM to use daily apps without lag for years. Yes, I Know, RAM maybe looks like not enough because of the Samsung Heavily customized OS. But, Trust me, One UI is far better than other Custom Skin OS. You can use this device without lag for years until Samsung mess with some Bloatware. But beyond, this not go reasons, you are addicted to some root apps, or you are a frequent user of some Custom OS, you can proceed further. But if you want to root because everybody is doing, I advise you, don’t root If you didn’t have any experience. For regular users, It can become a Nightmare.

Buy Samsung Galaxy S22 Ultra from $6.46/mo for 24 Months with Eligible Trade-In.
Samsung Galaxy S23 available for $0.00/mo with T-Mobile Credit and Trade-in Deal
Also Read-  Root Samsung Galaxy A50s SM-A5070/FN Android 11 using TWRP and Magisk

How to Root Samsung Galaxy S20 Exynos Android 10 One UI 2.0 (SM-G980F)

First of all, thanks to the developer geiti94 for the Root method. Also, topjohnwu – this genius is a one who discovered and maintaining Magisk. Samsung Galaxy S20 International variants come with a flexible bootloader. It means that the smartphone can be easily rooted. Also, the device can accept to install TWRP recovery or any other custom recovery file/app alike. Don’t try with Snapdragon US Variants like Verizon devices. They come with a locked Bootloader.

But In the below method, we are going to Root this device by using Magisk. You can install Official TWRP using the official app when it is released. TWRP recovery is a custom recovery file that must be installed on your devices because you can root them successfully. In this article, we explained the easiest method to follow and install Magisk on Samsung Galaxy S20. However, the tool required for rooting this device is the Magisk App.

You can flash TWRP once it is available. With the help of TWRP Recovery, you can quickly flash the Custom ROMs into your Samsung Galaxy S20. Before sharing the tutorial, you may want to know that, with the Magisk present on your device, you can easily install any root apps. Does it seem complicated? Relax, everything will be explained briefly in bullets.

Things to check out for;

  • Check your device model number.

  • Install Latest Magisk Manager.
  • Make sure your device battery is above 50%.

  • You should Backup your current files and data- Full Data Loss Process (save them on external storage).

  • We cannot use Samsung Pay, Secured folder, and some official apps from Samsung.
  • You can’t update your firmware, to get new firmware you have to follow the below steps with the latest firmware.
  • Read the full tutorial before the process.

1. Pre-Requirement Steps

Unlock Bootloader

Enable Developer Options and OEM Unlock

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this; go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode and OEM Unlock. There is no complicated process in the Samsung Galaxy S20.

Samsung Galaxy S20 Download Mode Keys

  • Switch off your device. Enter into Download Mode-> Volume Down+ Power and Connect your mobile with PC using USB Cable. When Download mode warning screen Appears, Press Volume Up button to unlock the bootloader.

Samsung Galaxy Bootloader Warning Screen

  • The above process will wipe your user data. After setup your device, Please recheck the OEM Unlock in the settings. Sometimes It Will Lock Again.
Also Read-  Root Sony Xperia XZ2/Compact/Premium Android 10 using TWRP and Magisk

Downloadable files

  • Download and install the Samsung USB driver to your computer system.

  • Also, download the ODIN software. Select the Android 10 version in the ODIN list. Install ODIN on your PC.

  • Download OEM Fix, Copy it to Your Phone external Memory. We Need to flash OEM Fix to avoid OEM Lock automatically in the future after the Root process, and Samsung S20 Encryption disabler.zip, Copy it to Your Phone Memory. We Need to flash encryption disabler to avoid Boot Warnings in the future after the Root process.
  • Download and save the TWRP File in your PC. Select the Correct TWRP file from Below. This TWRP can support Up to Android 10. You can choose between One UI, 2.0, and 2.5. When you plan to update to One UI 2.5, you can root after the update.

  • TWRP-S20-One-UI-2-1.tar.
  • TWRP-S20-One-UI-2-5.tar.

2. Flash TWRP using ODIN

Samsung Galaxy S20 Download Mode Keys

  • Connect your USB cable with PC. Switch off your device. Then, enter into Download mode. To do this, press and hold down the Volume Down + Power buttons and connect your micro USB Cable.

Samsung Galaxy S20 Download Mode Warning screen

  • Press the Volume Up button to continue when you see the warning message.

  • Now, connect the Samsung Galaxy S20 mobile to the computer via USB cable.

  • Launch the Odin app on your computer. If the device is detected by this app (Odin), it will show you a message that reads – added!!!

ODIN Added Message

However, if the device is not correctly connected to the PC, you won’t see this message. So, you have to check the USB cable if it is reasonable and reconnect the device.

  • After connecting the Samsung device, click on the PDA/PA button to browse/search and get the TWRP from where you saved it on your PC. Also, navigate to “options” and Un-tick the Auto-Reboot.

Odin Auto Reboot

  • Click on “Start”

  • Once the file is loaded into the device, Don’t reboot your device.

  • Kudos, you have just Installed the TWRP on your Samsung Galaxy S20. If you installed TWRP, Don’t turn on your mobile. Immediately, move to Magisk Installation steps. You can do this by Pressing Volume Down+Power to exit download mode then Press Volume Up+Power to enter into recovery mode.

Samsung Galaxy S20 Recovery Mode keys

3. Install Magisk, Encryption Disabler, and OEM Fix in your Samsung Galaxy S20 using TWRP

Samsung Galaxy S9 Plus Android 10 Root TWRP Installation

  • Boot it into recovery mode->Volume Up + Power Button.
  • Now it Will Boot into TWRP Recovery Mode.
  • Select Wipe->Advance Wipe->Select Cache and User Data.
  • Return to Home of TWRP select Install.
  • Select OEM Fix.zip.

Samsung Galaxy S9 Plus OEM Fix Flash

  • After the installation, It will Prompt to Root with Magisk, Select Next until you get the Main Menu Screen.
  • In Main Menu, Select “Proceed with ROM flasher and Multitool.” Select “Patch for OEM Issue.” We don’t need to Install Magisk Separately. This OEM fix file will Install Magisk.
  • Return to Home of TWRP select Install.
  • Select Encryption Disabler.zip file.
  • Follow the same way and install Magisk.zip.
  • You should Install One by One. Don’t add more zips feature in TWRP. After the Installation Reboot Your Mobile.
  • You can also install Magisk.apk in your Mobile Applications. No-verity-opt-encrypt is used to avoid the Encryption issue after rooting. You can check your root status using Root Checker.
  • If you didn’t find Magisk in App Drawer, you should repeat the process from the OEM fix installation.
Also Read-  Fix Samsung Galaxy M33 5G Stuck on Boot Start Screen Logo SM-M336B/BU/K

What More?

In my opinion, you don’t need root for your Samsung Galaxy S20 Android 10 version. If you thought you could Improve Performance By rooting; With the Exynos 990 processor and 8 GB RAM, your device can perform well. If you don’t know how much RAM you need, You will never use this much RAM. It would help if you did not Boot into Normal OS Booting, by pressing the power button, after firmware flash. It will boot you to a Non-Rooted environment.

If you accidentally urged and boot frequently, Don’t panic, after setup everything, switch off your device and boot into Rooted OS using above mentioned keys. If you root your device, because of the battery drain issues, you can optimize your battery without root. Beyond this, if your purpose is to Disable Bloatware apps, you can do that without using this method. When you have any suggestions or doubts, comment below.

Source, (2)
