How to install Magisk Manager on Samsung Galaxy M31 SM-M315F Android 11?

In the early stage of rooting, the process is simple. You can achieve the task with the help of the app. But After Lollipop and the above versions, the process becomes complicated. You have to wait for the custom recovery to root your mobile. The process becomes simple after Magisk is released. You don’t have to wait for other developers to do the procedure. You can patch your firmware and begin to use Root Apps and Magisk Modules. Not all users and mobiles need to use Magisk. But when you are a Developer or regular Modules user, you can install Magisk Manager on Samsung Galaxy M31 Android 11.

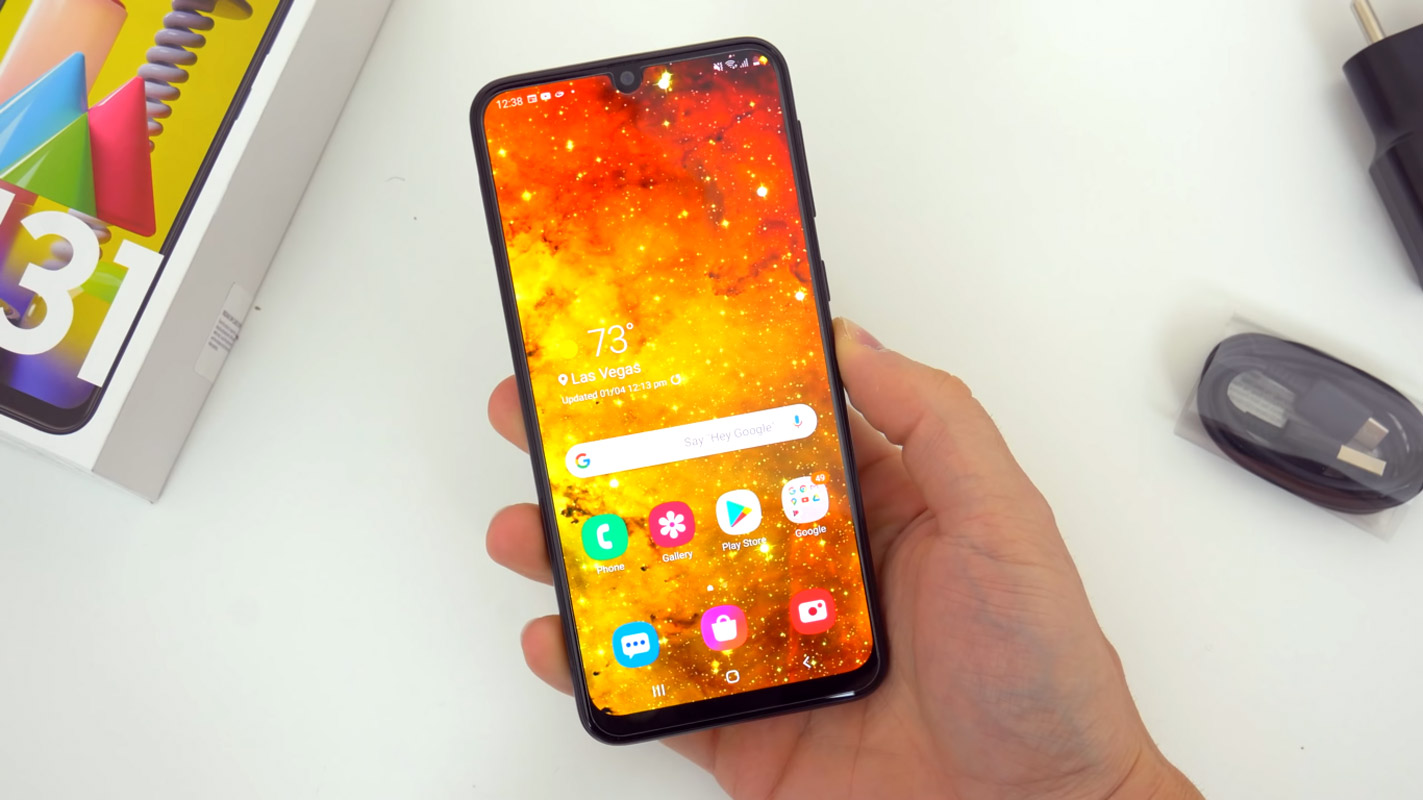

samsung galaxy m31 home screen

Compared with standard other root methods, this method has additional steps. Since it uses a custom recovery, You can install custom ROMs. But, It is enough to run most of the root apps. So, You should care a little bit when you do the process.

After root, you will lose official updates and have to update your mobile manually. So, Before proceeding with the process, you should know why you need to do it. If you are a regular user, you can try some alternatives for your purpose that don’t require root. When you are a regular root apps user and Developer, you can follow the below guide to achieve root on your mobile.

Should you need to Root your Samsung Galaxy M31 SM-M315F Android 11 version with TWRP?

It would be best if you had a strong reason for rooting. Samsung Galaxy M31 already got One UI 3.1 based on Android 11 and optimized. You have More than Enough 6-8 GB RAM to use daily apps without lag for years. I Know; that RAM may look insufficient because of Samsung’s Heavily customized OS. But, Trust me, One UI is far better than other Custom Skin OS. You can use this device without lag for years until Samsung mess with some Bloatware. But beyond this not go reasons you are addicted to some root apps, or you are a frequent user of some Custom OS, you can proceed further. But if you want to root because everybody is doing it, I advise you, don’t root If you don’t have any experience. For regular users, It can become a Nightmare.

How to Root and Install TWRP on Samsung Galaxy M31 SM-M315F Android 11 One UI 3.1

Thanks to the Developer- soulr344, for the Root method and topjohnwu – this genius is the one who discovered and maintained Magisk. Samsung Galaxy M31 variants come with a flexible bootloader in some regions. It means that we can easily root the smartphone. The device can also accept installing TWRP recovery or any custom recovery file/app. Don’t try with a carrier-locked Bootloader.

Also Read-  Fix Samsung Galaxy S22 Ultra 5G Stuck on Boot Start Screen Logo SM-S9080/B/E/N/U/U1/W

But In the below method, we will root this device using Magisk. You can install Official TWRP using the official app when it is released. However, TWRP recovery is a custom recovery file we must install on your devices because you can root them successfully. This article explained the easiest method to follow and install Magisk on the Samsung Galaxy M31. However, the tool required for rooting this device is the Magisk App.

Samsung Galaxy S23 Renders
Samsung Galaxy S23 Renders

You can flash TWRP once it is available. Then, with the help of TWRP Recovery, you can quickly flash the Custom ROMs into your Samsung Galaxy M31. Before sharing the tutorial, you may want to know that you can easily install any root apps with the Magisk on your device. Does it seem complicated? Relax; we will explain everything briefly in bullets.

Things to check out for;

  • Check your device model number.

  • You should back up your current files and data- Full Data Loss Process (save them on external storage).
  • Install Latest Magisk Manager.
  • Make sure your device battery is above 50%

  • You cannot use Samsung Pay, Secured folder, or some official Samsung apps.
  • You can’t update your firmware; to get new firmware, you must follow the below steps with the latest firmware.
  • Read the full tutorial before the process.

1. Unlock Bootloader

Enabling developer option

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this, go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode and OEM Unlock. There is no complicated process in the Samsung Galaxy M31.

Samsung Galaxy M30s Download Mode

  • Switch off your device. Enter into Download Mode-> Volume Down+Power Button and Connect your mobile with your PC using a USB Cable. When the Download mode warning screen Appears, Press the Volume Up button to unlock the Bootloader.

Samsung Galaxy Bootloader Warning Screen

  • The above process will wipe your user data. After Setup your device, Please recheck the OEM Unlock in the settings, and sometimes It Will Lock Again.

2. Preparing Patched Boot Image file for Samsung Galaxy M31 Android 11 using Magisk

  • Also, download the ODIN software. Select the above Oreo version in the ODIN list. Then, install ODIN on your PC.
  • You can use Phone Info to know your firmware version.
Also Read-  Download Samsung Galaxy S20 Plus 4G LTE/5G SM-G985F/9860/B/N/U/U1/W Android 11 One UI 3.0 Stock Firmware

3. Preparing Patched Boot Image file

Samsung AP Extracted files

  • Download 7Zip-ZS and LZ4, and Install both on your PC. Extract the files in downloaded firmware using 7Zip-ZS. You will get four files. Click on the AP File and Extract again. You will get some data along with the boot.img.lz4.

Convert lz4 file to img

  • Copy the boot.img.lz4 and Vbmeta.img.lz4 to LZ4 Installed folder. Convert the lz4 file to a .img file by dragging the .img file to the lz4 application file. You have to drag the file to that application. The script will automatically convert the file to .img format. After the conversion, Copy the boot — img file to your mobile. Leave Vbmeta in the PC folder.
  • Download Magisk Manager (Download the latest version) or Magisk canary and Install it on your mobile. Next, open Installed Magisk and Select Install in Magisk; it will ask For a zip file and Patch Boot Image File. Select the Boot Image file.

Magisk Boot Image File

  • Navigate to your copied boot image file and patch the file.

Magisk Firmware Patch Process

  • Wait for the process to complete; you will get a magisk patched .img file in the end. Rename this file into the boot.img again.

Samsung Magisk Patched TWRP Files

  • Now copy boot. img and Vbmeta. img files to your PC. We have already left the Vbmeta. img file on PC. Drag those files into the downloaded TWRP.tar file. Now you can see there are three files within the TWRP.tar file. Don’t extract the data. The three files contain a single .tar file that should be flashed using ODIN.

4. Flash TWRP.tar using ODIN

Samsung A50 Download Mode

  • Connect your USB cable with your PC. To do this, press and hold Volume Down+ Power Button and Connect Your Mobile To PC via USB Cable; after Samsung Logo Appear, Release all keys. Switch off your device. Then, enter into Download mode.
  • Press the Volume Up button to continue when you see the warning message.

  • Connect the Samsung Galaxy M31 mobile to the computer via USB cable.

  • Launch the Odin app on your computer. If this app detects the device (Odin), it will show you a message that reads – added!!!

ODIN Added Message

  • However, you won’t see this message if the device is not correctly connected to the PC. So, you have to check the USB cable to see if it is reasonable and reconnect the device.
  • After connecting the Samsung device, click the PDA/PA/AP button to browse/search and get the TWRP from where you saved it on your PC. Also, navigate to “options” and Un-tick the Auto-Reboot.

Odin Auto Reboot

  • Click on “Start”

  • Once the file is loaded into the device, reboot your device.

Samsung Galaxy M31 Recovery Mode

  • Kudos, you have just Installed the TWRP on your Samsung Galaxy M31. We installed TWRP. Don’t turn on your mobile. Immediately, move to Magisk Installation steps. Press the Volume Down+Power button to exit Download mode and quickly press Volume Up+ Volume Down+ Power Button to boot into Recovery mode.

Also Read-  Root Samsung Galaxy S8 SM-G950F Pie 9.0 using TWRP

4.1 Install Disable Verity and Magisk in your Samsung Galaxy M31 using TWRP

TWRP Installation Screen

  • Now you are in TWRP Recovery Mode.
  • Select Wipe->Advance Wipe->Select Cache Data. You can also take complete backup using TWRP. It will help you when something goes wrong.
  • Return to Home of TWRP and select Install.
  • Select
  • Return to Home of TWRP and chooses Install.
  • Select DM In the same way, Install
  • You should Install them One by One. Don’t add more zips feature in TWRP. After the Installation, Reboot Your Mobile.
  • You can also install Magisk.apk in your Mobile Applications. Multi disabler avoids the Encryption issue after rooting. You can check your root status using Root Checker.
  • If you didn’t find Magisk in App Drawer, you should Install the Magisk app again.

Install Magisk App on Samsung Galaxy M31 Android 11

  • You can also install Magisk Manager in your Mobile Applications. Install Root checker to check your Root status. Download the .apk file and install it on your mobile.

What More?

In my opinion, you don’t need to Magisk Manager your Samsung Galaxy M31 Android 11 version. If you thought you could Improve Performance By Root, With the Exynos 9611 Octa-Core processor and 6-8 GB RAM. If you don’t know how much RAM you need, You will never use this much RAM. It would be best to not Boot into Normal OS Booting by pressing the power button after firmware flash, and it will boot you to a Non-Rooted environment. So, you should pay attention to the first recovery boot step.

You can optimize your battery without root if you root your device because of the battery drain issues. Beyond this, if your purpose is to Disable Bloatware apps, you can do that without using this method. This method uses TWRP custom recovery; thus, you can install Custom ROMs. If you have any suggestions or doubts, comment below.

Source, (2)
