Root Realme 5 Pro RMX1971 Android 10 Realme UI using TWRP and Install Magisk

The craze for using custom ROMs began when manufacturers failed to provide what users want, and developers began providing better features. The ratio of rooting and using custom ROMs is high in custom skin OS compare with Stock Android mobiles. Companies can distinguish themselves from others; So, they have to use custom skin OS. Realme 5 Pro comes with Color OS the got a separate Android 10 based Realme UI. Compare with Color OS, Realme UI is better. But when you want to use custom ROMs or remove bloatware apps, you can root your Realme 5 Pro Android 10 using the below method. Here we are using TWRP as a custom recovery. So, You can install custom ROMs.

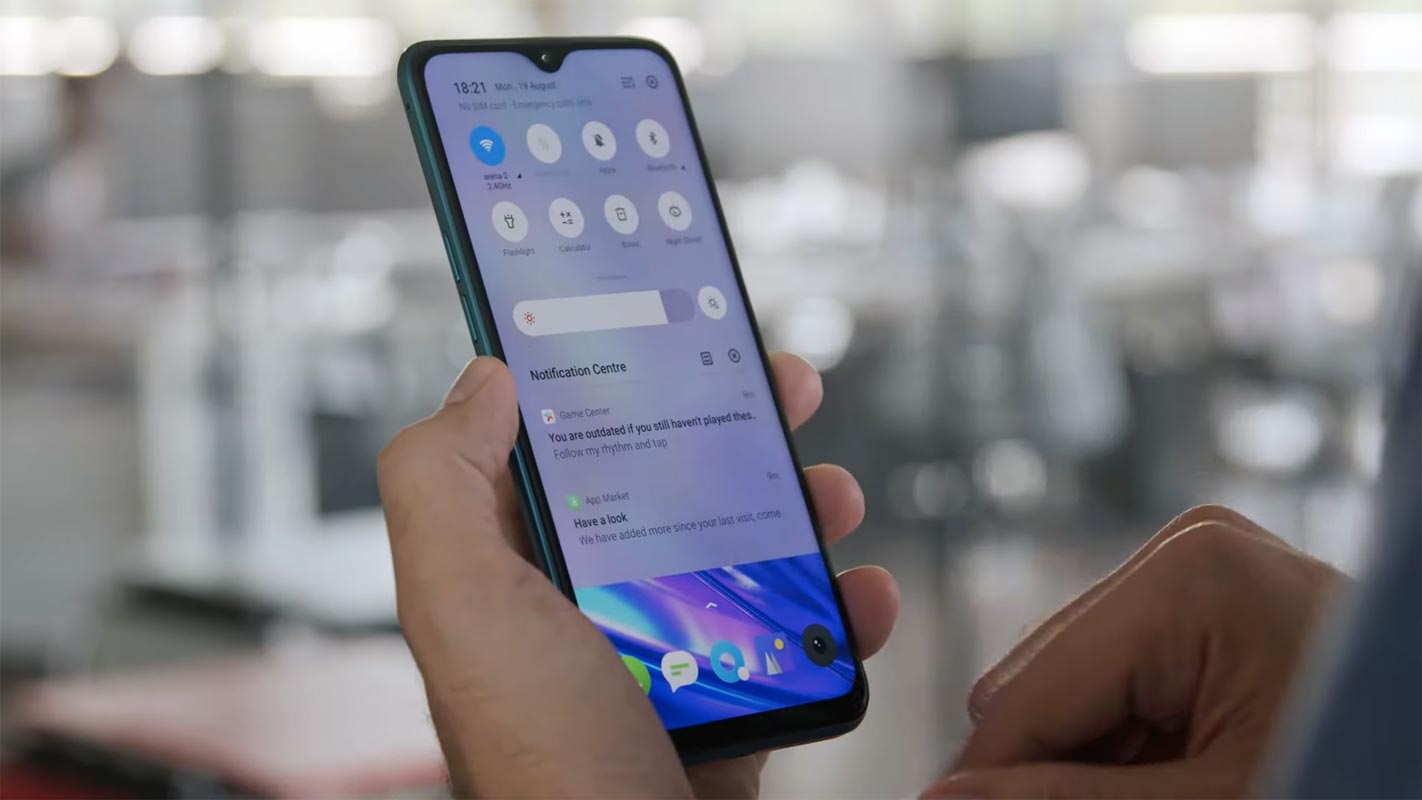

Realme 5 Pro Notification Bar

If you are a regular user, You don’t need to root to enhance the performance. The reason is you already have optimized Realme UI OS. They are working on the best version. Soon you will get the update. Why I am saying is, After the root, you will not get the official updates. Also, Rooted mobiles need regular manual optimizations.

Why should you Root Realme 5 Pro?

We should thank XDA Developers- Kaushikradhey and TWRP team for the root files. Without them, this method can’t happen. It would be best if you had a proper reason, and you know what you are doing. Yes, with a Minimum of 4/6/8 GB RAM and Qualcomm Snapdragon 712 processor, You can use this mobile without root for 2-3 Years If you use it correctly. Don’t root because everybody says that it can become the fastest car in the world when rooting your mobile. No. Rooting is to extract some performance from the device. But, you already have Powerful specs and software. So, If you are addicted to some root apps, you can root. But, if you want to test, I won’t recommend it.

How to Root Realme 5 Pro Android 10 Realme UI (RMX1971)

Realme 5 Pro International Variants comes with a flexible bootloader. Some Manufacturer devices come with a locked Bootloader. This means that different smartphone variants can be easily rooted. The device can also accept installing TWRP recovery or any other custom recovery file/app.

TWRP recovery is a custom recovery file that must be installed on your devices because you can root them successfully. This article explained the easiest method to follow and install TWRP recovery on Realme 5 Pro. However, the tool required for rooting this device is the Magisk App.

With the help of TWRP Recovery, you can quickly flash the latest version of Magisk into your Realme 5 Pro to gain root access. Before sharing the tutorial, you may want to know that, with the TWRP recovery present on your device, you can easily install any custom ROM or firmware. Does it seem complicated? Relax; everything will be explained succinctly in bullets.

Things to check out for;

  • Make sure your device battery is charged above 50%

  • Backup your current files and data, full data loss process (save them on external storage).

Pre-Requirement StepsOnePlus 6T OEM Unlock and USB Debugging

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this, go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode, OEM Unlock, and Enable the ‘Advanced Reboot.’ There is no complicated process in Realme 5 Pro.

Extracting Vbmeta. img file in Realme 5 Pro Andoird 10 ROM

To avoid boot loop issues, we have to flash the vbmeta—img file before flashing TWRP and Magisk; to create patched Vbmeta, We have to extract the file from your current firmware. Follow the below steps to make the Vbmeta file.

  • Download firmware from the above link and copy it to your PC.

Realme 6 Pro Android 10 Extracted Firmware Files for Root

  • Extract the firmware file in your PC and copy the Vbmeta. img file to your PC. You can find the Vbmeta file in the firmware-update folder.

Unlock Realme 5 Pro Bootloader using In-depth Test APK file, ADB and Fastboot

Oppo Realme Unlock Tool

  • Download the Realme 5 Pro Android 10 Unlock Tool apk and install it on your mobile.

  • Enable mobile data and Open the Unlock tool app.
  • Select Start applying, accept Terms and Conditions, Submit your application. Within 1 Hour or a maximum of 24 hours, you will receive confirmation from the Realme team if you get a successful move to the below steps.

  • After the successful review message, boot your mobile into fastboot mode and connect your mobile with the PC.

Realme 5 Pro Fastboot Mode

  • Switch off your device. Then, enter into Fastboot mode. To do this; Press and hold down the Volume Up + Power buttons at the same time for some time.

Realme X Fastboot Mode Screen

  • Press the Volume Up button to continue when you see the warning message.

  • Now, connect the Realme 5 Pro mobile to the computer via USB cable.

  • Launch the fastboot on your computer. Open a Command prompt on your PC and type the below command.

  • fastboot devices
  • It should display the connected devices. If you didn’t get the device, restart the command prompt and Disconnect and Connect your Oppo Realme 5 Pro. If you are detected, type the below commands.
  • fastboot flashing unlock

fastboot flashing unlock

  • Hit enter, you will prompt to select an option in your mobile, Select Unlock Bootloader.

Oppo Realme 2 Pro Unlock Bootloader

  • After the process complete, It will boot into regular operation. Now you have Unlocked Bootloader.

  • Check again to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode, OEM Unlock. Sometimes they disabled themselves after the boot.

Flash TWRP in Realme 5 Pro Android 10

  • Switch off your device. Then, enter into Fastboot mode. To do this, press and hold down the Volume Up+ Power buttons at the same time for some time.
  • Press the Volume Down button to continue when you see the warning message.

  • Now, connect the Oppo Realme 5 Pro mobile to the computer via USB cable.

  • Launch the fastboot on your computer. Open a Command prompt on your PC and type the below command.

  • fastboot devices
  • It should display the connected devices. If you didn’t get the device, restart the command prompt and Disconnect and Connect your Realme 5 Pro. If your device is detected, type the below commands one by one and Hit Enter.
  • fastboot flash recovery recovery.img
  • fastboot flash vbmeta vbmeta.img
  • After the process complete, It will boot into the temporary TWRP. Don’t Boot into standard OS until we flash magisk.

Install Magisk and no-verity-opt-encrypt in your Realme 5 Pro using TWRP

Xiaomi Redmi K20 Pro TWRP

  • Select Wipe->Advance Wipe->Select Cache Data.
  • Return to Home of TWRP select Install.
  • Select no-verity-opt-encrypt.zip.
  • After the Installation, again Return to the Home of TWRP select Install.
  • Select Magisk.Zip.
  • After the Installation, Reboot Your Mobile.

What More?

In my opinion, you don’t need to root for your Realme 5 Pro Android 10 version. If you thought you could Improve Performance By Root; With the Qualcomm SDM712 Snapdragon 712 Octa-Core processor and 4-8 GB RAM, your device can perform well. If you don’t know how much RAM you need, You will never use this much RAM. It would help if you did not Boot into Normal OS Booting by pressing the power button after firmware flash. It will boot you to a Non-Rooted environment. So, you should pay attention to the first recovery boot step.

If you root your device because of the battery drain issues, you can optimize your battery without root. Beyond this, if your purpose is to Disable Bloatware apps, you can do that without using this method. This method is not based on TWRP custom recovery. Thus you can’t install Custom ROMs. When you have any suggestions or doubts, comment below.

Source, (2)
