Samsung Galaxy J4 received One UI Pie 9.0 update. If you compare the Old Oreo version and this new One UI update, you can notice a lot of Improvements in both UI and Performance. Custom Skin OS always make the device slow when we upgrade our device. With 2 GB RAM and Quad-Core processor, the hardware is working better with this new optimized OS version. The Old Oreo version may sometimes struggle when the device handles some heavy apps. You may wonder why I am telling all these features; there is a reason for this. If you are a regular user, you don’t need to root your mobile to squeeze the little performance from your device. Unlike old methods, this pie based method requires some additional flashing and Installation steps. If your mobile is the primary daily usage device, you should think twice before doing this. After root, you should optimize your mobile regularly. Also, you will not get the official updates from Samsung, due to some security measures. If you are a developer or you know the purpose for your root, you can follow the below steps to achieve root on your mobile.
Why should you Root Samsung Galaxy J4?
You should have a strong reason for rooting. Samsung Already released One UI 9.0 Pie and is already optimized. You have More than Enough 2 GB RAM to use daily apps without Lag for years. Yes, I Know, 2 GB RAM is not enough in this modern Android world. But, Trust me One UI is far better than other Custom Skin OS. You can use this device without lag for years until Samsung mess with some Bloatware. But beyond, this not go reasons, you are addicted to some root apps, or you are a frequent user of some Custom OS, you can proceed further. But if you want to root because everybody is doing, I advise you, don’t root If you didn’t have any experience. For regular users, It can become a Nightmare.
How to Root Samsung Galaxy J4 Pie 9.0 (SM-J400F, SM-J400G, SM-J400M)
First of all, thanks to ashyx – XDA developer for TWRP support and topjohnwu – this genius is a one who discovered and maintaining Magisk. Samsung Galaxy J4 International variants come with a flexible bootloader. This means that the smartphone can be easily rooted. Also, the device can accept to install TWRP recovery or any other custom recovery file/app alike. Don’t try with Snapdragon US Variants like Verizon devices. They come with locked Bootloader.
But In the below method, we are going to Root this device by using Magisk and TWRP. You can install Official TWRP using the official App when it is released. TWRP recovery is a custom recovery file which must be installed on Samsung Galaxy devices because you can root them successfully. In this article, we explained the easiest method to follow and install TWRP recovery on Samsung Galaxy J4. However, the tool required for rooting this device is the Magisk App.
With the help of TWRP Recovery, you can quickly flash the latest version of Magisk into your J4 to gain root access. Before sharing the tutorial, you may want to know that, with the TWRP recovery present on your device, you can easily install any custom ROM or firmware. Does it seem complicated? Relax, everything will be explained succinctly in bullets.
Things to check out for;
Check your device model number.
- Install Latest Magisk Manager.
Make sure your device battery is charged above 50%
Backup your current files and data- Full Data Loss Process (save them on external storage).
- You cannot use Samsung Pay, Secured folder, and some official apps from Samsung.
- You can’t update your firmware, to get new firmware you have to follow the below steps with the latest firmware.
- Read full tutorial before the process.
Enable USB Debugging Mode and OEM Unlock on your mobile. To do this; go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode and OEM Unlock. There is no complicated process in the Samsung Galaxy J4.

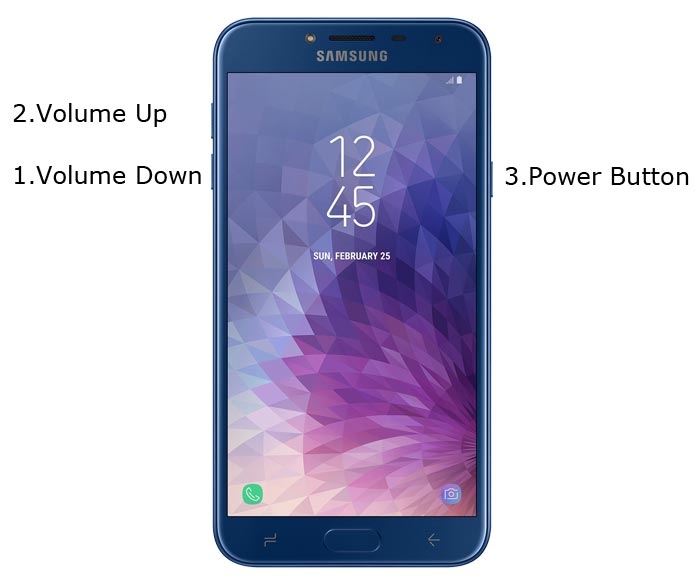

- Switch off your device. Enter into Download Mode-> Volume Down+ Volume Up+ Power and Connect your mobile with PC using USB Cable. When Download mode warning screen Appears, Press Volume Up button to unlock Bootloader.
- The above process will wipe your User Data. After Setup your device, Please recheck the OEM Unlock in the settings. Sometimes It Will Lock Again.
Preparing Patched Boot Image file
Download and install the Samsung USB driver to your computer system.
Also, download the ODIN software. Select above Oreo version in the ODIN list. Install ODIN on your PC.
- Download Samsung Galaxy J4 Firmware and save it on your PC. Your Current OS version and Downloaded Version AP and CSC should be Same.
- Download forced_encryption_disabler, RMM State Bypass, Copy it to Your Phone Memory. We Need to flash RMM State to avoid OEM Lock automatically in future after the Root process, and no-verity-opt-encrypt, Copy it to Your Phone Memory. We Need to flash encryption disabler to avoid Boot Warnings in the future after the Root process. Copy all these files to the external SD Card.
- You should download the TWRP file from below. If you need Custom Recovery or you can skip this step. Copy this file to PC for flash using ODIN.
- You can use Phone Info to know your firmware version.
- Download 7Zip-ZS and LZ4 Install both on your PC. Extract the files in downloaded firmware using 7Zip-ZS. You will get four files. Click on the AP File and Extract again. You will get some files along with the boot.img.lz4. Copy the boot.img.lz4 to LZ4 Installed folder. Convert lz4 file to .img file. After the convert, Copy boot.img file to your mobile.
- Download Magisk Manager (Download Latest version) or Magisk canary and Install it on your mobile. Open Installed Magisk and Select Install in Magisk, It will ask For zip file and Patch Boot Image File. Select the Boot Image file.
Navigate to your copied Boot Image File and patch the file.
- Wait for the process to complete, In the end, you will get magisk patched .tar file. The .tar file will be in the same folder where you have the Stock firmware file.
- Copy magisk_patched.tar file to your PC.
Step 1: Flash Patched Boot Image using ODIN
- Due to Samsung new security restrictions, we can’t flash TWRP with Stock Boot in your mobile. So, we have to flash a patched boot using ODIN.
- Unlock your screen lock. There should be no fingerprint, PIN Lock, Wipe. Set No lock in the settings.
- Switch off your Mobile. Enter into Download mode->Volume Down+ Volume Up+ Power Buttons and Connect Your Mobile To PC via USB Cable, After Samsung Logo Appear, Release all keys.
- After entering into Download Mode, it will say Warning, Press Volume Up button to continue.
- Launch Odin Application.
- It Will Show the message added.
- If you did not get this message Repeat the above steps.
- After Getting Added Message Select, AP/PDA Button then Browse for the Firmware file selects it. Un-Tick the Auto-Reboot.
- Press Start wait for the tasks to complete. After the process complete, Press Volume Down+ Power button to exit Download mode. When the screen goes off, Immediately Press Volume Up + Power buttons to boot into Recovery mode.
- After entering into Stock recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase your saved data in your device. Don’t Boot into OS, Read below Boot stages before booting.
- If you don’t need Custom Recovery, you can skip the next step. You already have rooted mobile. But, If you want TWRP for flashing Custom ROMs, you can move to Step 2.
Boot into Rooted OS
- Press and Hold Volume Up + Power buttons, release all the keys once the Bootloader warning appears. You have to set up your device like a new device. You can select the root status using Root Checker.
- Stock Recovery Boot – Press and Hold Volume Up + Power buttons, release keys while you hold the Volume Up key.
- You will see Magisk Manager in your App drawer. If you can’t find the app, you can install Magisk Manager in your mobile.
Step 2: Flash TWRP using ODIN
- Connect your USB cable with PC. Switch off your device. Then, enter into Download mode. To do this; press and hold down the Volume Down + Volume Up+ Power button and connect your micro USB Cable.
Press the Volume Up button to continue when you see the warning message.
Now, connect the Samsung Galaxy J4 mobile to the computer via USB cable.
Launch the Odin app on your computer. If the device is detected by this app (Odin), it will show you a message that reads – added!!!
- However, if the device is not correctly connected to the PC, you won’t see this message. So, you have to check the USB cable if it is reasonable and reconnect the device.
After connecting the Samsung device, click on the PDA/PA button to browse/search and get the TWRP from where you saved it on your PC. Also, navigate to “options” and Un-tick the Auto-Reboot.
Click on “Start”
Once the file is loaded into the device, reboot your device.
Kudos, you have just Installed the TWRP on your Samsung Galaxy J4. If you installed TWRP, Don’t turn on your mobile. Immediately, move to Magisk Installation steps.
Install Magisk, no-verity-opt-encrypt, forced_encryption_disabler, and RMM State By-Pass in your Samsung Galaxy J4 using TWRP
- Boot it into recovery mode->Volume Up + Power Button.

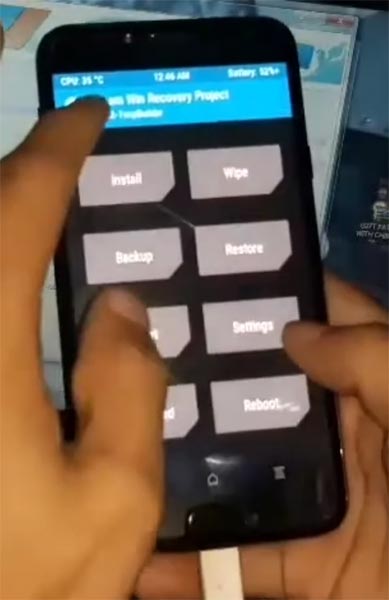

- Now it Will Boot into TWRP Recovery Mode.
- Select Wipe->Advance Wipe->Select Cache Data.
- Return to Home of TWRP select Install.
- Select forced_encryption_disabler.zip.
- Return to Home of TWRP select Install.
- Select RMM State By-Pass.zip. Same process on no-verity-opt-encrypt and Magisk installation.
- You should Install One by One. Don’t use add more zips feature in TWRP. After the Installation Reboot Your Mobile.
- You can also install Magisk.apk in your Mobile Applications. no-verity-opt-encrypt is used to avoid the Encryption issue after rooting. You can check your root status using Root Checker.
- If you didn’t find Magisk in App Drawer, you should repeat the process from OEM fix installation.
In my opinion, you don’t need rooting for your Samsung Galaxy J4. If you thought, you could Improve Performance By root; With the Exynos 7570 Quad-Core processor and 2 GB RAM, your device can perform well. If you don’t know how much RAM you need, You will never use this much RAM. You should not Boot into Normal OS Booting, by pressing the power button, after firmware flash. It will boot you to Non-Rooted environment. If you accidentally urged and boot frequently, Don’t panic, after setup everything, switch off your device and boot into Rooted OS using above mentioned keys. If you root your device, because of the battery drain issues, you can optimize your battery without root.
