Home » Root » Root Xiaomi Redmi 10X/Pro 5G Android 10 using TWRP and Magisk

Root Xiaomi Redmi 10X/Pro 5G Android 10 using TWRP and Magisk

by Selva Kumar A Leave a Comment

Xiaomi always tries to give better specs at a reasonable price. To do this, they have to pick the specs from the beginning that include processors carefully. Snapdragon prices are slightly high prices compare with MediaTek Processors. Compare with Snapdragon, MediaTek processors don’t give that much variety in the beginning. But after they launched the 5G processors, they provide better price value. Xiaomi Redmi 10X/Pro 5G comes with MediaTek MT6875 Dimensity 820 5G processor with the Android 10 version. Most of the Xiaomi mobile users always root their mobile to get better control. You can also root your Xiaomi Redmi 10X/Pro 5G Android 10 mobile using the below method. Since the following method uses TWRP recovery, You can install custom ROMs.

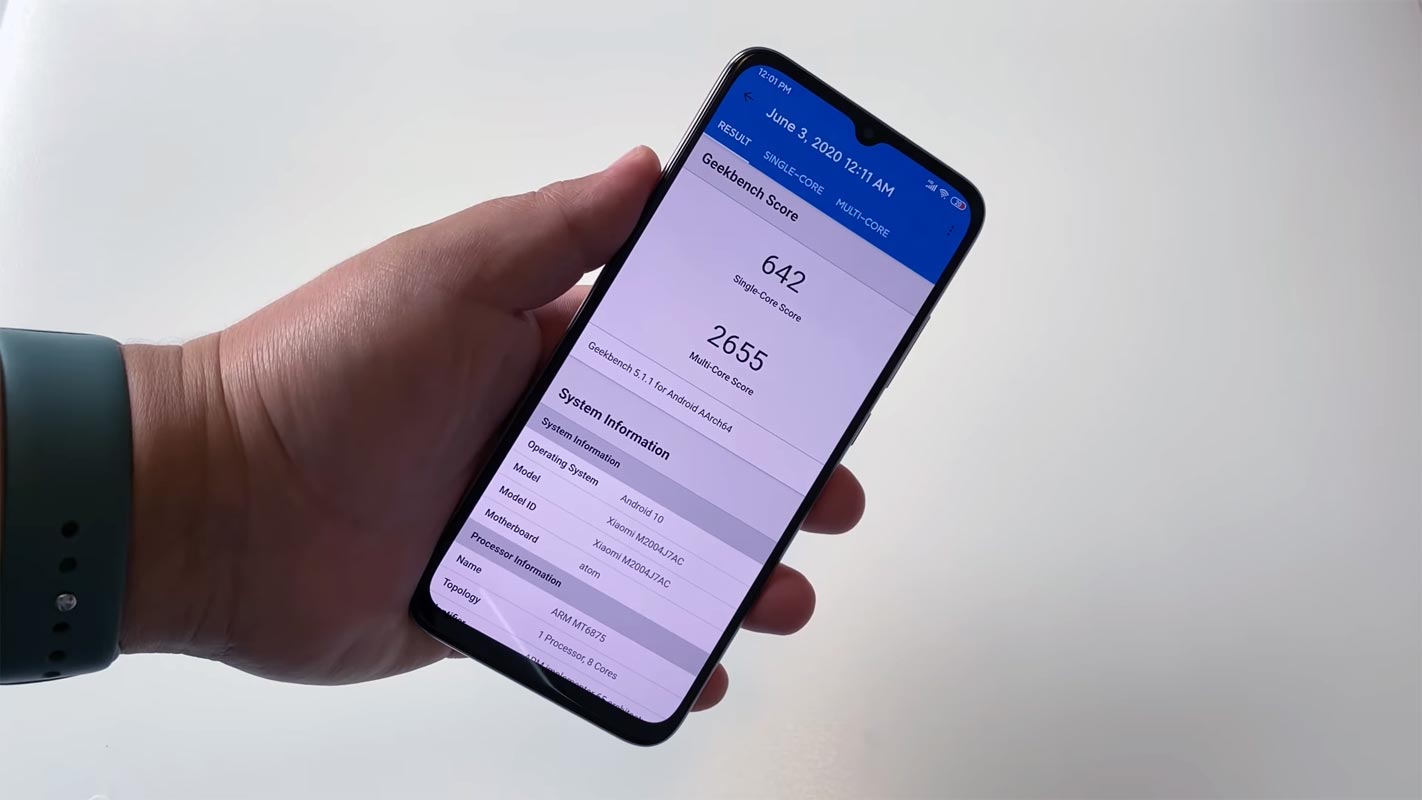

Xiaomi Redmi 10X 5G Geekbench Result

After root, you will lose official updates. You have to update your mobile manually. So, Before proceeding with the process, you should know why you need to do it. If you are a regular user, you can try some alternatives for your purpose that don’t require rooting your mobile. When you are a regular root apps user and developer, you can follow the below guide to achieve root on your mobile.

Table of Contents

  • Should you need to Root Xiaomi Redmi 10X/Pro 5G Android 10?
  • How to Root Xiaomi Redmi 10X/Pro 5G Android 10 version? (Atom)
    • Things to check out for;
    • Pre-Requirement Steps
    • Unlock Xiaomi Redmi 10X/Pro 5G Bootloader using ADB and Fastboot
    • Extracting Vbmeta Image file
    • Flash Magisk, Vbmeta Image, and Recovery Image using ADB and Fastboot
    • Install Magisk and Disable Dm-Verity-ForceEncrypt in your Xiaomi Redmi 10X/Pro 5G using TWRP
  • What More?

Should you need to Root Xiaomi Redmi 10X/Pro 5G Android 10?

We thank XDA Developer- topjohnwu and bahuy2003 (Who successfully tested this method). Without their hard work, We can’t make this method. Coming to root, you should have a proper reason, and you know what you are doing. Yes, with a minimum of 6/8 GB RAM and MediaTek MT6875 Dimensity 820 5G Octa-Core processor, You can use this mobile for basic tasks without root for 2-3 Years If you use correctly. Software is better compared with other manufacturers, Custom skin OS. Don’t root because everybody says that it can become the fastest car in the world when rooting your mobile. No. Rooting is to extract some performance from the device. But, you already have Powerful specs and software. So, If you are addicted to some root apps, you can root. But, if you want to test, I won’t recommend it.

Also Read-  Fix Xiaomi 11T Pro Stuck on Boot Start screen logo
Buy Samsung Galaxy S22 Ultra from $6.46/mo for 24 Months with Eligible Trade-In.
Samsung Galaxy S23 available for $0.00/mo with T-Mobile Credit and Trade-in Deal

How to Root Xiaomi Redmi 10X/Pro 5G Android 10 version? (Atom)

Xiaomi Redmi 10X/Pro 5G International Variants come with a flexible bootloader other than some carrier locked devices. It means that different smartphone variants can be easily rooted. The device can also accept installing TWRP recovery or any other custom recovery file/app.

Most of the methods, We follow Magisk to root our device. TWRP recovery is a custom recovery file that must be installed on your devices because you can root them successfully. This article explained the easiest method to follow and install TWRP and Magisk on Xiaomi Redmi 10X/Pro 5G. However, the tool required for rooting this device is the TWRP App.

You can install Official TWRP Recovery once available for your Xiaomi Redmi 10X/Pro 5G to gain more features. Before sharing the tutorial, you may want to know that you can install any custom ROM or firmware with the TWRP recovery present on your device. Does it seem complicated? Relax, everything will be explained briefly in bullets.

Things to check out for;

  • Make sure your device battery is above 50%.

  • You should back up your current files and data, full data loss process (save them on external storage).

Pre-Requirement StepsOnePlus 6T OEM Unlock and USB Debugging

  • Enable USB Debugging Mode and OEM Unlock on your mobile. To do this; go to settings >>> about >>> Tap on the “Build Number” 7-10 times consistently to enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode, OEM Unlock. There is no complicated process in Xiaomi Redmi 10X/Pro 5G.

  • Also, download the ADB drivers. Install it on your PC.

  • Download Magisk.Zip (Latest Version) and Copy it to Your external Memory.
  • Download Disable_Dm-Verity_ForceEncrypt.zip and Save it in your SD card or OTG storage.
  • You should download and extract below the TWRP package bundle and follow steps after unlocking the Bootloader. Rename the file to recovery.img and copy the file into the ADB folder.
  • Xiaomi Redmi 10X Pro 5G Android 10 TWRP.zip.

Unlock Xiaomi Redmi 10X/Pro 5G Bootloader using ADB and Fastboot

  • Go to the official Mi Bootloader Unlock website and log in with your Mi Account.
  • Enter your Mobile details like phone number, IMEI, reason. You will get the confirmation code on your mobile. Enter the confirmation code on the Mi website and request for unlocking. You will receive a confirmation mail after the approval in 2-10 Days.
Also Read-  Root Samsung Galaxy Note 3 SM-N900 Lollipop using TWRP and Magisk (All Variants)

Mi Flashtool Installation



  • Install the Mi Flash Tool in the received mail. Log in with your Same Mi Account, which is used to get the software.

Mi Flash Tool Unlock

  • Switch off your device. Connect your mobile to the PC. Then, enter into Fastboot mode. To do this; Press and hold down the Volume Down + Power buttons at the same time for some time. It will boot your mobile into Fastboot mode.
  • After you successfully boot into Fastboot mode, Select Unlock. It will take 2-3 minutes to finish the process. After the successful process completion, Reboot your mobile.Xiaomi Redmi Note 7 Fastboot

  • Check again enable “Developer Options,” then go to the “Developer Options” and enable USB Debugging Mode, OEM Unlock. Sometimes they disabled themselves after the boot.

Extracting Vbmeta Image file

  • Download Xiaomi Redmi 10X/Pro 5G Firmware and save it on your PC. Your Current OS version and Downloaded Version should be the Same.
  • You can use Phone Info to know your firmware version.

Xiaomi Extracted Files Boot and Vbmeta

  • Download 7Zip-ZS Install on your PC. Extract the files in downloaded firmware using 7Zip-ZS. You will get a lot of data. Copy the Vbmeta.img file to your mobile external memory.

Flash Magisk, Vbmeta Image, and Recovery Image using ADB and Fastboot

Xiaomi Redmi 10X Pro 5G Fastboot Mode

  • Switch off your device. Then, enter into Fastboot mode. To do this- Press and hold down the Volume Down + Power buttons at the same time for some time.
  • Press the Volume Up button to continue when you see the warning message.

  • Now, connect the Xiaomi Redmi 10X/Pro 5G mobile to the computer via USB cable.

  • Launch the fastboot on your computer. Open a Command prompt on your PC and type the below command.

  • fastboot devices
  • It should display the connected devices. If you didn’t get the device, restart the command prompt and Disconnect and Connect your Xiaomi Redmi 10X/Pro 5G. If you are detected, type the below commands one by one and hit Enter.
  • You should execute the commands after every successful response.
  • fastboot flash recovery recovery.img

fastboot flash recovery command

  • After the process complete, Press Volume Down+ Power button to exit Fastboot mode. When the screen goes off, Immediately Press Volume Up + Power buttons to boot into Recovery mode.
Also Read-  Root Samsung Galaxy S4 GT-I9500/2/5/6/7/8/V Lollipop using TWRP and Magisk

Xiaomi Redmi 10X Pro 5G Recovery Mode

  • After entering into recovery mode, Go to Wipe Data/Factory Reset and Select Yes to wipe data. It will erase your saved data in your device.

Install Magisk and Disable Dm-Verity-ForceEncrypt in your Xiaomi Redmi 10X/Pro 5G using TWRP

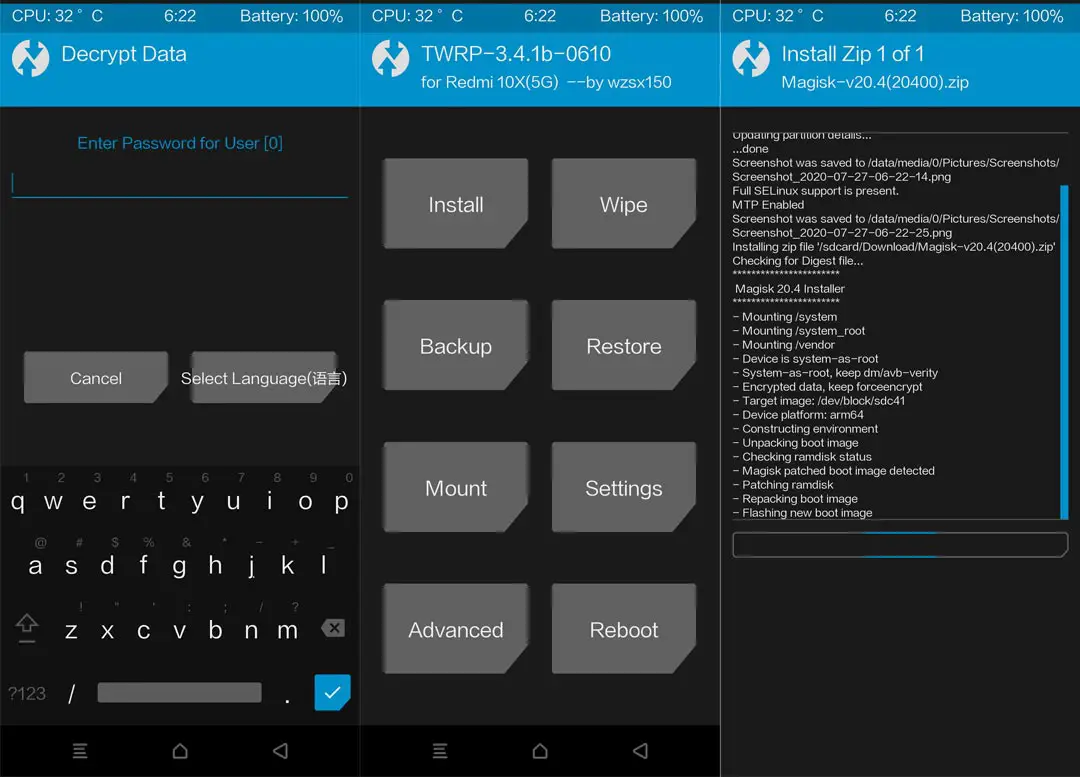

Xiaomi Redmi 10X Pro 5G Android 10 Root TWRP

  • Select Wipe->Advance Wipe->Select Cache Data.
  • Return to Home of TWRP select Install.
  • Select Disable Dm-Verity-ForceEncrypt.Zip.
  • After the installation, Again, navigates to Home and Select Install.
  • Select Magisk.Zip. The same way, install Vbmeta.img. After the successful installation, Reboot your mobile.
  • You can also install Magisk Manager in your Mobile Applications. Install a Root checker to verify your Root Status.

What More?

In my opinion, you don’t need to root your Xiaomi Redmi 10X/Pro 5G Android 10 version. If you thought you could Improve Performance By Root; With the MediaTek MT6875 Dimensity 820 5G Octa-Core processor and 8/12 GB RAM, your device can perform well. If you don’t know how much RAM you need, You will never use this much RAM. It would help if you did not Boot into Normal OS Booting by pressing the power button after firmware flash. It will boot you to a Non-Rooted environment. So, you should pay attention to the first recovery boot step.

If you root your device, because of the battery drain issues, you can optimize your battery without root. Beyond this, if your purpose is to Disable Bloatware apps, you can do that without using it. This method is based on TWRP custom recovery. Thus you can install Custom ROMs. When you have any suggestions or doubts, comment below.

Source, (2)

Selva Kumar A

Selva Kumar is an Android Devices Enthusiast, Who Can Talk and Write About Anything If You Give a Hint About the respective devices. He is a Computer Science Graduate and Certified Android Developer, Making His Career towards this Technology. He is always eager to try new Android devices — not only Software level but Hardware-level Also. Beyond this, He is a Good Swimmer, Guitarist.
